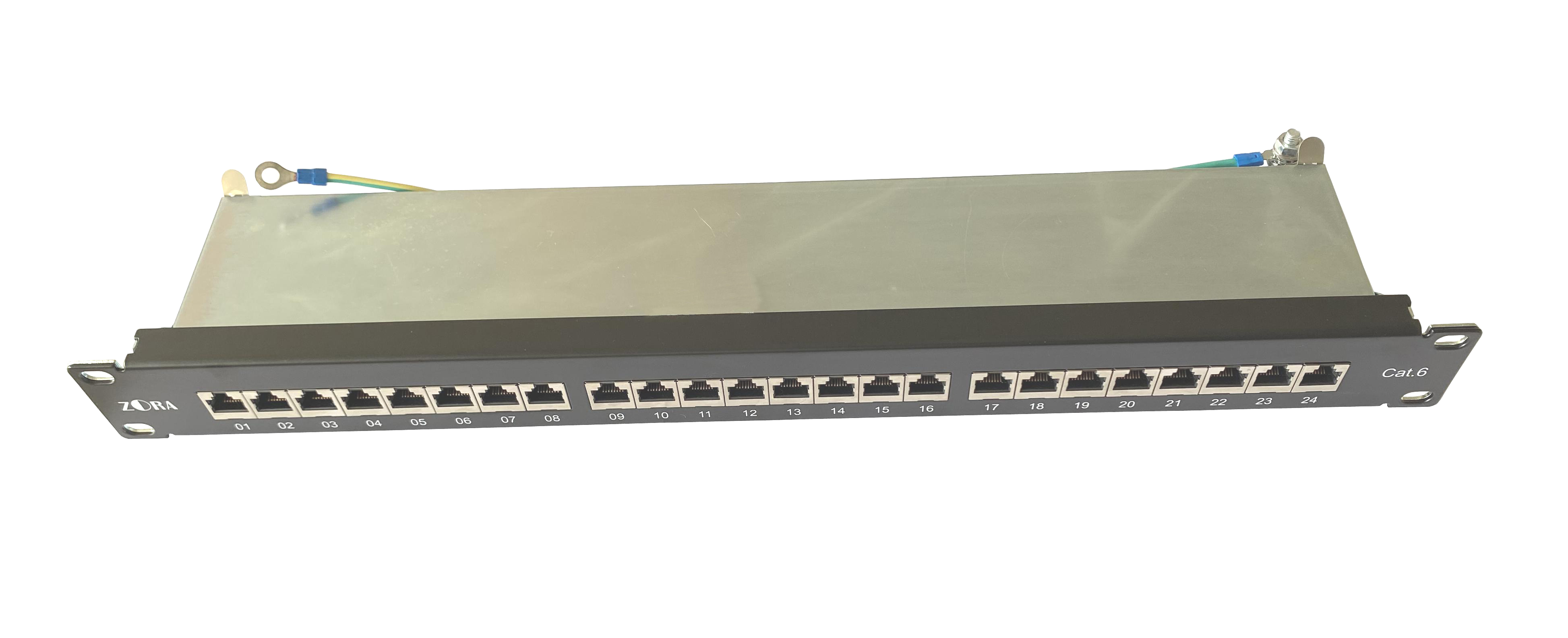

ZORA 24-port Cat 6 Shielded Express Patch Panel

ZORA 24-port Cat 6 Shielded Express Patch Panel applied to data network communications, modular patch cords connecting device device, the main wiring room and the distribution of each application.

Model:
ZRDB2224
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA 24-port Cat 6 Shielded Express Patch Panel Description

ZORA 24-port Cat 6 Shielded Express Patch Panel applied to data network communications, modular patch cords connecting device device, the main wiring room and the distribution of each application.

Standards Compliance

ANSI/TIA 568.2-D
ISO/IEC 11801

ZORA 24-port Cat 6 Shielded Express Patch Panel Features

1The main body is made of cold rolled steel plate, the surface is sprayed with plastic, beautiful and generous;

2Adopting 360 degree all-round shielding to ensure excellent EMC performance;

3Perfect and clear marking of the line, support T568A and T568B two types of line;

48 gold pins in the module are made of high quality phosphor bronze with gold plating, which ensures the minimum contact resistance and the longest service life;

5IDC terminals using phosphor bronze nickel-plated, snap 22-26AWG cable to ensure that the termination times;

6Can be used directly in 19″ standard cabinets, racks, wall-mounted cabinets and so on;

7Operating temperature: -10℃～60℃.

Ordering Information
Product Number	Product Name	Color	Ports	Qty / Box	Qty / CTN
ZRDB2224	1U 24-port Cat 6 Shielded Express Patch Panel	Silver gray	24	1	7

Technical Specifications

Construction
Body
Body Material	Adoption of high-quality SPCC cold-rolled steel plate
Body Surface	The surface has undergone special spray coating treatment, which is sturdy, beautiful, and not easily scratched
Front
Front Label	Positive and intuitive grouped labeling area provides easy management of written labels
Contact type	Flexible wire (phosphor bronze alloy nickel plated 100μinch, then gold plated 50μinch)
Rear
Rear Tray	Straight cable management bracket on the back for bundling and cable management, effectively reducing cable tension

Physical Ranges
Operating Temperature	Storage -40℃～+70℃, working -10℃～+60℃.
Humidity Level	Operation: 93% non-condensing max.
Insertion/Extraction Life	≥750
No. of IDC Terminations	≥200
Insertion/Extraction Strength	≥800grams
Earth Resistance	Bracket with ground terminal, good grounding for shielding, ground resistance less than 1Ω

Electrical
Insulation Resistance	500 MΩ min.@ 100V d.c
Dielectric strength (core-to-core, 1 min DC)	1kV
Flexible wire contact resistance	20 mΩ max.
Rated voltage/current	150VAC/1.5A
IDC Contact Resistance	2.5 mΩ max.

ZORA 24-port Cat 6 Shielded Express Patch Panel FAQ

1. What is the ZORA 24-port Cat 6 Shielded Express Patch Panel?

The ZORA 24-port Cat 6 Shielded Express Patch Panel is a rack-mounted device designed for high EMI environments. It features 24 shielded RJ45 ports with metal shielding (F/UTP or S/FTP), compliant with Cat6 standards. Ideal for data centers, industrial facilities, and networks requiring high signal integrity.

2.What are the key applications?

Industrial Automation: Wiring near motors and inverters in factories.

Medical Systems: Data transmission in MRI rooms and operating theaters.

Data Center Core: Shielded cabling in high-density racks.

Transportation Control: Subway signal rooms and airport communication hubs.

3.What are the technical specifications?

Standards: TIA/EIA-568-C.2, ISO/IEC 11801.

Shielding: F/UTP (overall foil) or S/FTP (foil per pair + braid).

Bandwidth: 250MHz (supports 10Gbps up to 55 meters).

Mounting: 19-inch rack (1U height), front/rear access.

Grounding: Requires grounding wire to rack terminal.

4. How does it differ from unshielded patch panels?

Parameter	ZORA Cat6 Shielded	Unshielded Panel
EMI Resistance	High (30-50dB reduction)	Low (relies on twisting)
Environment	Factories, medical, data centers	Offices, general server rooms
Installation	Complex (grounding required)	Simple
Cost	40-60% higher	Moderate
