As the core hub for enterprise data storage, network transmission and business operation, the computer room has a cabling system as a core component of its infrastructure. A reasonable wiring method can not only ensure stable network transmission and reduce signal interference, but also improve the efficiency of later operation and maintenance, facilitate equipment expansion and upgrade, and at the same time optimize the heat dissipation and safety management of the computer room. With the continuous upgrading of data center construction standards, the cabling in computer rooms is gradually moving towards standardization, modularization and intensification. Currently, the mainstream cabling methods in the industry mainly fall into two categories: spatial cabling forms and network architecture cabling forms. At the same time, they are combined with standardized cabling systems inside cabinets to adapt to computer room scenarios of different scales and loads.
From the perspective of the overall space layout path of the computer room, top wiring and bottom wiring are the two most fundamental and widely used wiring modes. Their layout logics are different, and their applicable scenarios and advantages and disadvantages are significantly different.
Overhead wiring is the mainstream choice for modern computer rooms. All cables are laid in open cable trays and closed cable trays at the top of the cabinets and below the ceiling. Strong and weak current are separated and arranged, and they sink to the corresponding cabinets through vertical cable trays to complete the equipment connection.
Core advantages: Low cable exposure, moisture-proof and corrosion-resistant, not affected by ground water accumulation, dust or rodent infestation. The operation and maintenance inspection is intuitive and convenient. There is no need to remove the floor, add or remove cables, and the efficiency of fault detection is high. Release the space beneath the anti-static floor, which can be specifically used for the air supply circulation under the air conditioner to optimize the heat dissipation of the computer room. The layout of strong and weak current layered cable trays reduces electromagnetic interference and ensures more stable network transmission.
Disadvantages: There are certain requirements for the floor height of the computer room, and the installation and construction costs of the cable trays and hangers in the early stage are slightly high.
Applicable scenarios: Medium and large-sized data centers, enterprise core computer rooms, high-density server rooms, and computer rooms in damp environments.
The underfloor wiring is a traditional and classic wiring method. Relying on the interlayer space of the anti-static raised floor in the computer room, floor downline troughs are laid or cables are directly laid in an orderly manner and concentrated at the bottom entry point of the cabinet.
Core advantages: The overall visual is clean and tidy, with no exposed cable trays on the floor, and the computer room has a high overall aesthetic appeal. The construction is simple and the cost is low, making it suitable for low-cost renovation projects. It is naturally compatible with the underdraft cooling mode, and the air circulation meets the heat dissipation requirements of the equipment.
Disadvantages: The space beneath the floor is sealed, making it prone to dust accumulation and moisture, which accelerates the aging of cables. The later operation and maintenance are cumbersome, and the floor needs to be removed frequently for inspection and repair. It is vulnerable to water leakage, damage from insects and rodents, and has a relatively high risk of interference when strong and weak electricity are mixed.
Applicable scenarios: Renovation of old computer rooms, low-end computer rooms of small and medium-sized enterprises, and small weak current computer rooms with insufficient floor height.

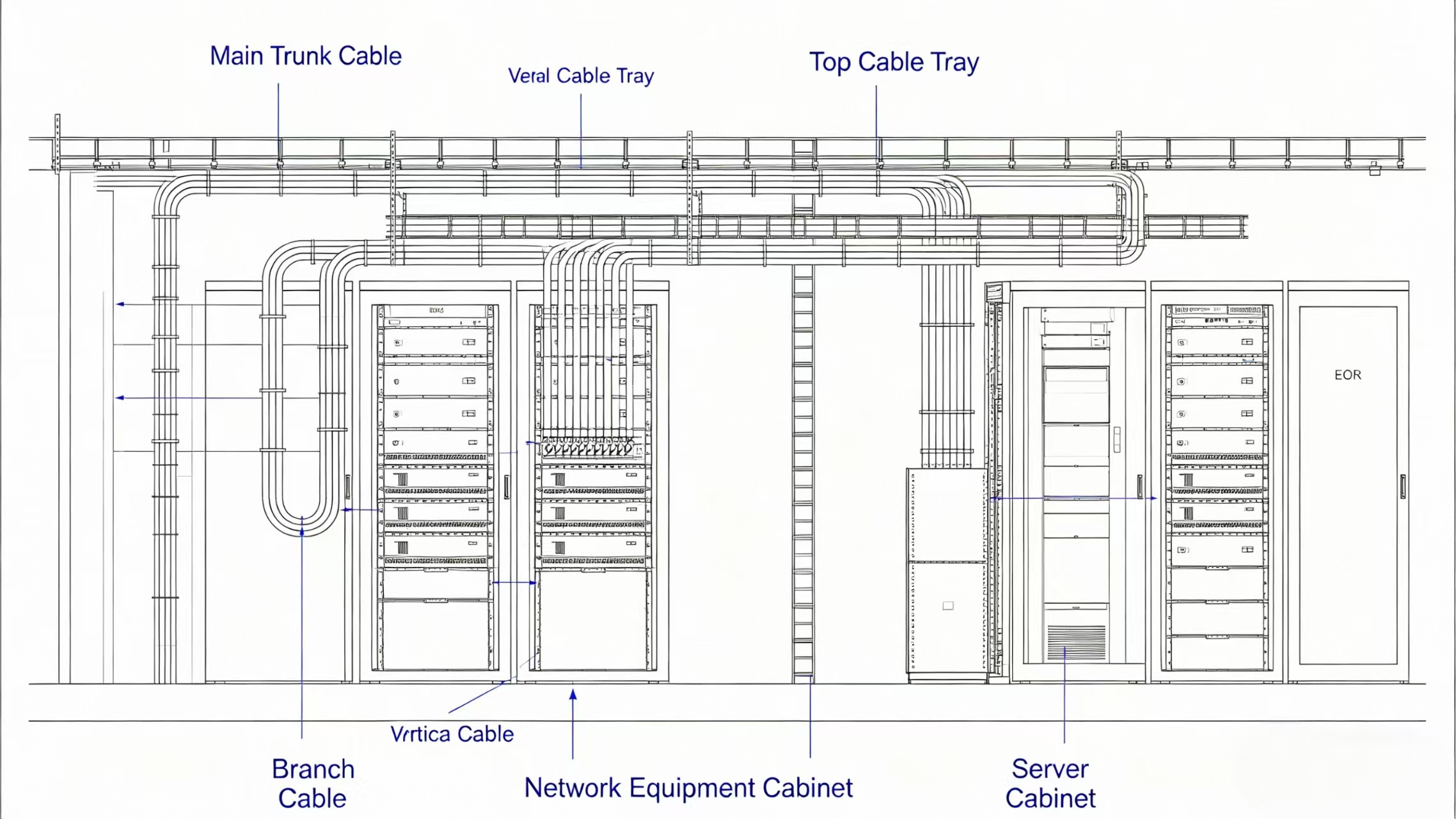

The EOR cabling method involves centrally installing the access switches in the network cabinets at the beginning or end of each row of cabinets. All the server ports in the server cabinet are first connected to the patch panel on the cabinet through patch cords, and then extended to the access switch in the terminal network cabinet by the copper cables on the patch panel. This approach enables unified access to servers.
Advantages: This wiring method is the most common. Before the installation of servers and access switches, the wiring construction from server cabinets to network cabinets can be completed in advance. Subsequent installation of equipment servers or switches and patch cord work are all carried out within their respective cabinets, which is relatively independent.
Disadvantage: There are a relatively large number of copper cables from server cabinets to network cabinets, approximately 20 to 40 copper cables. Moreover, the farther the server cabinet is from the network cabinet, the longer the copper cable wiring distance in the computer room will be, which leads to a large workload of cable management and maintenance and poor flexibility. Meanwhile, when the raised floor in the data center is used as the air supply channel for cooling and the cable trays/conduits for the comprehensive wiring are also laid under the raised floor, the EOR may reduce the ventilation volume for cooling. At this time, it should be noted that the cable trays for the wiring should not cross perpendicularly with the air supply direction to avoid blocking the air supply of the air conditioning.
It is suitable for some data centers that are sensitive to costs, have a relatively small number of cabinets and a relatively simple network structure. For instance, in the data centers of some small enterprises, the number of servers is limited, and the requirements for wiring flexibility and management convenience are not particularly high.

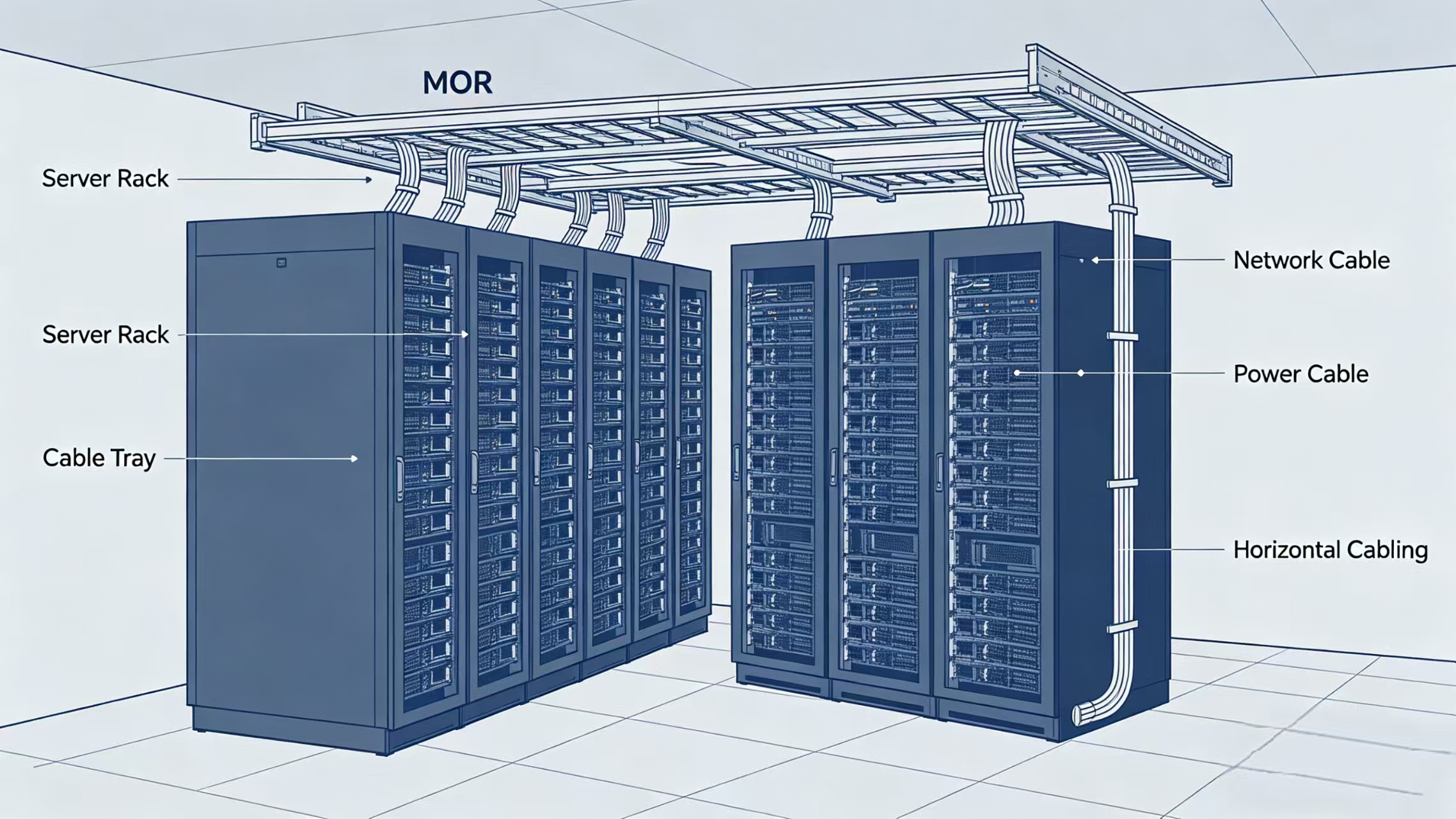

MOR cabling is an improvement on the EOR cabling method, with the main difference lying in the position where the column head cabinets are placed. MOR places them in the middle of each column cabinet. The MOR network cabinet is deployed in the middle of the two rows of cabinets of the POD (a common data center cabinet layout unit). The server ports are connected to the patch panel on the cabinet through patch cords and then to the access switch in the network cabinet located in the middle position through copper cables.
Advantages: It can reduce the cable distance from the server cabinet to the network cabinet and simplify the cable management and maintenance work. The cables are laid from the middle position of the cabinet to both ends, which can reduce the congestion of cables at the entrances and exits of the wiring channel and shorten the average length of the cables. At the same time, it is also suitable for implementing a pre-connection system of customized length, which is more convenient for the cross-connection and management of the wiring equipment inside the wiring cabinet than EOR.
Disadvantage: Compared with the TOR cabling method, when the server density is high, the number of cables is still relatively large, and the management complexity is still relatively high. Moreover, a dedicated position for network cabinets needs to be set up in the middle of each row of cabinets, which imposes certain requirements on the spatial layout of the computer room.
It is suitable for medium-sized data centers with a large number of cabinet rows and certain requirements for cable length and management convenience. For instance, some medium-sized enterprises' data centers or small data center branch nodes of Internet companies not only aim to reduce cable length and management difficulty but also cannot fully adopt the TOR cabling method as large data centers do.

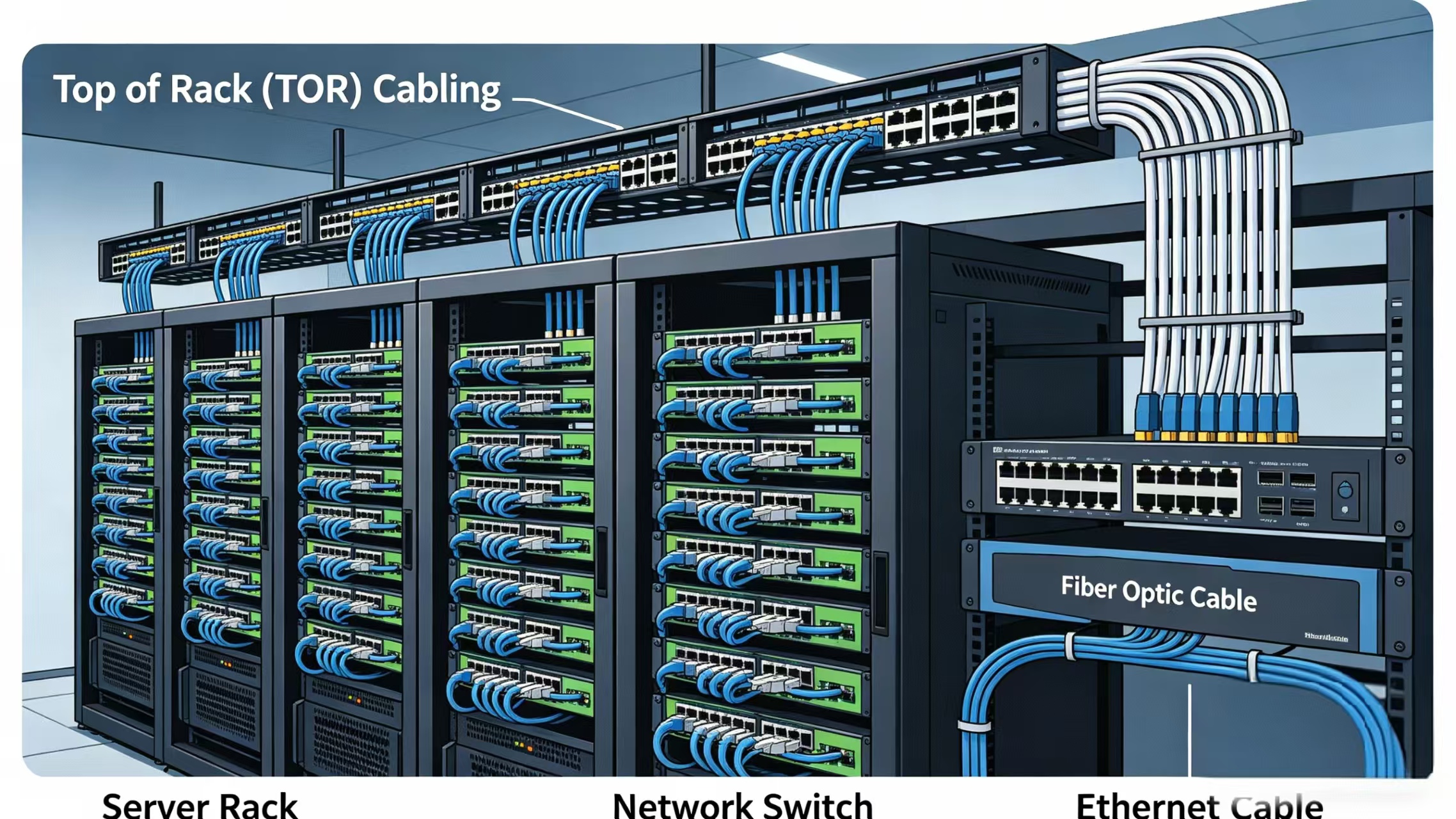

When using TOR cabling, 1-2 access switches are deployed at the top of each server cabinet in the POD. The rack-mounted servers are directly connected to the switches inside the cabinet via patch cords, and the uplink ports of the switches are connected to the aggregation switches in the EOR/MOR network cabinets via copper cables or optical fibers.
Advantages: It greatly simplifies the cabling between server cabinets and network cabinets. The number of optical fibers or copper cables from each server cabinet to the network cabinet is relatively small, usually only 4 to 6. It is highly suitable for scenarios with high server density in cabinets. For a standard 19-inch wide and 42U high cabinet, if the switch TOR cabling method is adopted, 15 to 30 1U high rack-mounted servers can be deployed in each cabinet (the specific number needs to take into account the power consumption of a single server and the power output of the cabinet's power supply).
With the sharp increase in user data business demands, the server density in data center computer rooms is getting higher and higher. New technological trends such as virtualization and cloud computing are becoming increasingly popular. The TOR cabling method is more adaptable to this development trend and can better achieve rapid network expansion.
Disadvantage: Each cabinet needs to be equipped with an access switch, which increases the equipment cost; Moreover, it has high requirements for the number of ports and performance of the switch. If the switch malfunctions, the affected area will be limited to the servers within the local cabinet.
It is suitable for large-scale data centers, especially those cloud computing data centers with high requirements for server density and rapid business expansion, as well as data centers of large Internet companies. In these scenarios, the TOR cabling method can meet the requirements of rapid deployment of a large number of servers and efficient network connections.
In actual computer room cabling projects, choosing which cabling method to use requires a comprehensive consideration of multiple factors.
For scenarios with extremely high scalability requirements such as cloud computing data centers and Internet data centers, where business growth is rapid, the TOR cabling method can better meet the demands of continuously increasing the number of servers and flexibly expanding the network. For some traditional enterprise data centers with relatively stable businesses and high requirements for network port utilization, EOR or MOR cabling methods may be more suitable. For instance, in a bank's data center, its business systems are relatively stable, and the number of servers and network demands change little. Adopting the EOR cabling method can better centralize the management and utilization of network resources.
The size of the computer room and the layout of the cabinets will also affect the choice of wiring methods. If the space in the computer room is limited and the server cabinets are closely arranged, the TOR cabling method can reduce the space occupied by cables and make the layout of the computer room more compact. For computer rooms with larger Spaces and more regular cabinet arrangements, EOR OR MOR cabling methods can better utilize the space and achieve centralized management.
Cost is an important consideration factor, including equipment procurement cost, wiring cost, maintenance cost, etc. The TOR cabling method requires a relatively large number of access switches, and the equipment procurement cost is relatively high, but the cabling cost may be lower. Although the EOR cabling method requires fewer switches, the cabling cost and later maintenance cost may be relatively high. When making a choice, a comprehensive assessment of these costs is required, and the appropriate wiring method should be determined based on the budget.
A comparison of the three architectures
Architecture | Switch location | Applicable scenarios | Main advantages | Main disadvantages |
EoR | End of the column | Medium and large-sized traditional data centers | Port management is convenient and the wiring is relatively centralized | Low management flexibility and significant differences in cable lengths |
MoR | In the column | Medium and large-sized data centers | Shorten the cable length to reduce congestion | It lies between EoR and ToR |
ToR | Top of the cabinet | High-density and highly scalable data centers | The cabinet is highly efficient, with simplified wiring and flexible scalability | The length of the main trunk cable varies greatly |
The cabling in the computer room is not a single application mode, but a combined design of spatial wiring, structural layout and cabinet wiring management. The uplink + EOR/MOR architecture has become the mainstream combination for government and enterprise data centers nowadays, taking into account security, stability and ease of operation and maintenance. Small computer rooms can flexibly choose underwiring to reduce costs. Ultra-high density computing power scenarios rely on TOR cabling to achieve efficient networking.
A scientific and reasonable wiring design can not only avoid problems such as chaotic lines, signal interference, and safety hazards, but also reserve sufficient space for the later bandwidth upgrade, equipment iteration, and business expansion of the computer room. It is the cornerstone for the long-term stable operation of the computer room.
