LC vs MPO Connectors: Which Suits Your High-Speed Application Better?

With the full popularization of 40G/100G/400G high-speed networks, the selection of fiber optic connectors directly determines cabling density, transmission performance, deployment costs, and later operation and maintenance efficiency. LC and MPO are the two most mainstream types of connectors in high-bandwidth scenarios such as data centers, cloud computing, and AI computing clusters, but they differ significantly in design logic, applicable speed, and deployment scenarios.

This blog will conduct an in-depth comparison from five dimensions: structural principles, performance parameters, high-speed adaptability, cost and operation, and scenario matching, helping you quickly determine which connector is more suitable for your high-speed application.

I. Core Definitions and Design Principles of LC and MPO Connectors

1.1 LC Connector: A Miniaturized Duplex Single-Core Mainstream Solution

LC (Lucent Connector) is a push-pull snap-on connector based on a 1.25mm ceramic ferrule. It features a duplex single-core design and is only half the size of traditional SC connectors, making it the most common fiber optic interface for 10G/25G Ethernet.

• Physical Structure: Single-core/duplex independent channels, snap-on locking, and easy plugging and unplugging

• Fiber Compatibility: Compatible with both single-mode and multi-mode (OM3/OM4/OM5) fibers

• Typical Applications: SFP/SFP+/SFP28 optical modules, intra-rack jumpers, and server access

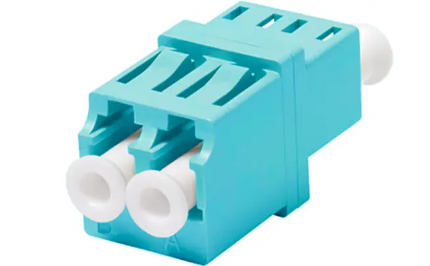

ZORA OM3 Multimode Dual Core Coupler LC-LC     ZORA OM3 Multimode Duplex Patch Cords LC-LC

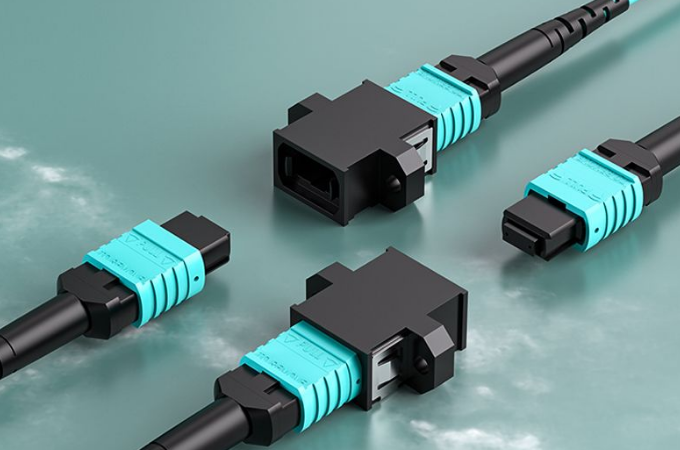

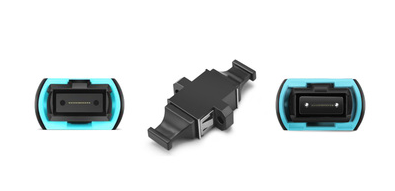

1.2 MPO Connector: A Multi-Core Parallel High-Speed Backbone Solution

MPO (Multi-fiber Push-On) is an integrated multi-core parallel connector, commonly available in 12-core and 24-core specifications. MTP is its high-performance upgraded version, designed specifically for parallel optical transmission, and is the standard interface for high-bandwidth backbone links such as 40G/100G/400G.

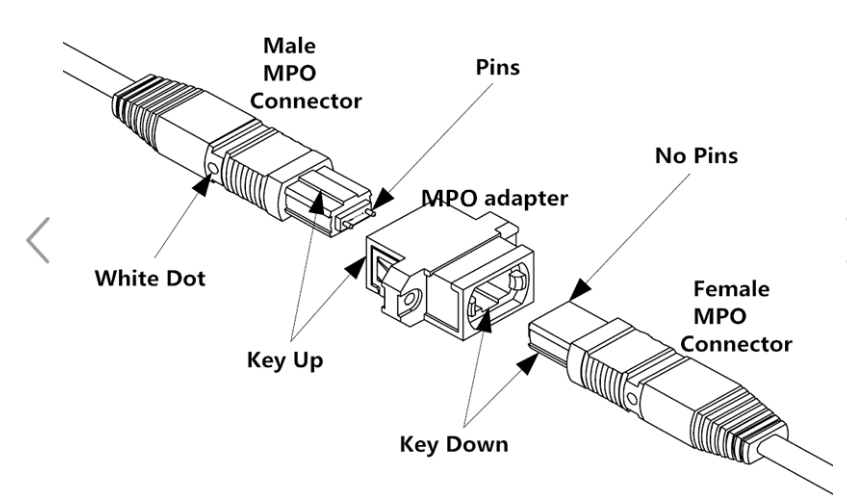

• Physical Structure: Integrated multi-core ribbon fiber, precise positioning with guide pins, and keyway anti-misinsertion

• Fiber Compatibility: Mainly multi-mode, with high-end models supporting single-mode parallel transmission

• Typical Applications: QSFP+/QSFP28/OSFP optical modules, inter-cabinet backbones, and computing cluster interconnection

II. Comprehensive Comparison of Key Performance Parameters

2.1 Physical Size and Cabling Density

• LC: Duplex ports occupy small space, allowing higher density ports to be deployed on a single RU panel, but each link only has 2 cores, requiring multi-port bundling for ultra-high speeds.

• MPO: A single interface integrates 8/12/24 cores, increasing fiber capacity several times in the same space, which is its core advantage in high-density computer rooms.

2.2 Insertion Loss (IL) and Return Loss (RL)

• LC: Stable single-core loss, typical IL ≤ 0.15dB, RL ≥ 55dB, more reliable for long-distance serial transmission.

• MPO: High precision requirements for multi-core alignment, typical IL ≤ 0.35dB for 12-core, and the difficulty of loss control increases with the number of cores.

2.3 Transmission Speed and Channel Mode

• LC: Mainly serial transmission, perfectly covering 1G/10G/25G, and requires single-fiber bidirectional (BiDi) or WDM technology for 100G and above.

• MPO: Naturally supports parallel transmission, a dedicated interface for standards such as 40GBASE-SR4 (8-core), 100GBASE-SR4 (8-core), and 400GBASE-DR4 (16-core).

2.4 Installation and Maintenance Difficulty

• LC: Single-core independent, easy to clean, fast fault location, and low maintenance threshold.

• MPO: Multi-core integrated, prone to end-face contamination, requiring special cleaning tools, complex polarity management, and higher fault troubleshooting costs.

2.5 Cost Structure

• LC: Lower costs for connectors, jumpers, and modules, with outstanding cost performance for small-scale deployment.

• MPO: Higher costs for connectors, pre-terminated optical cables, and testing equipment, with unit price diluted in large-scale backbone deployment.

III. In-Depth Analysis of High-Speed Network Scenario Adaptability

3.1 10G/25G Access Layer: LC is the Optimal Solution

10G/25G is the mainstream speed for the server and switch access layer. With its small size, low cost, and easy maintenance, LC has become the industry standard choice.

• Advantages: Independent management of single ports, flexible capacity expansion, and compatibility with a large number of existing SFP/SFP+ devices.

• Disadvantages: Cannot directly support parallel high speeds, and requires link modification when upgrading to 100G and above.

3.2 40G/100G Aggregation Layer: MPO Dominates, LC Complements

Parallel transmission has become a rigid demand in the 40G/100G aggregation layer. MPO is a natively adapted solution, while LC can achieve compatibility through BiDi/WDM but with increased costs.

• MPO: Completes 8-core parallel transmission with a single interface, significantly reducing the number of cables and improving deployment efficiency.

• LC: The 100G BiDi solution saves fibers but has higher module prices and limited long-distance performance.

3.3 400G/800G Core Layer: MPO/MTP is Irreplaceable

The 400G/800G core layer relies on multi-channel parallel technology, and MPO/MTP is the only connector solution that meets the requirements of density and speed.

• Typical Solutions: 400G DR4 uses 16-core MPO, 800G uses 32-core MTP, and the bandwidth of a single link increases exponentially.

• LC Limitations: Serial solutions cannot meet bandwidth density requirements, and multi-port bundling leads to messy cabling and complex operation and maintenance.

3.4 Long-Distance Transmission Scenarios

• Single-Mode Long-Distance (above 10km): LC is more stable, with low single-core loss and mature and reliable WDM systems.

• Short-Distance Parallel (100m~500m): MPO has obvious advantages, with low cost and high bandwidth density for multi-mode parallel transmission.

IV. Comparison of Deployment Costs and Full-Lifecycle Operation and Maintenance

4.1 Initial Procurement Cost

• LC: Lower unit prices for connectors, jumpers, and optical modules, resulting in less total investment for small-scale deployment.

• MPO: Higher costs for multi-core components, pre-terminated optical cables, and testing equipment, suitable for large-scale backbone construction.

4.2 Cabling Space and Construction Cost

• LC: Fewer cores per link, low cost for short-distance jumpers, but a large number of cables are required in high-speed scenarios, occupying cabinet space.

• MPO: Multi-core per cable reduces the number of cables and bridge frame occupation, and the pre-terminated solution greatly shortens construction time.

4.3 Later Operation and Maintenance Costs

• LC: Independent fault points, convenient cleaning and replacement, and low maintenance labor costs.

• MPO: High risk of simultaneous multi-core failures, requiring professional tools and skills for end-face cleaning and polarity calibration, resulting in higher maintenance costs.

4.4 Network Upgrade Scalability

• LC: Smooth upgrade from 10G to 25G, and module and link replacement are required for upgrading from 25G to 100G, with moderate upgrade costs.

• MPO: One-time deployment supports smooth evolution from 40G to 100G to 400G, with higher long-term return on investment.

V. Selection Decision Guide for Different Application Scenarios

5.1 Small and Medium-Sized Enterprise Computer Rooms: LC is Preferred

• Speed Requirements: Mainly 10G/25G, no large-scale 400G planning.

• Characteristics: Limited budget, general operation and maintenance capabilities, and moderate port density requirements.

• Conclusion: LC has the highest cost performance, simple deployment, and compatibility with mainstream equipment.

5.2 Medium and Large-Scale Data Centers: LC Access + MPO Backbone Hybrid Architecture

• Access Layer: LC connects servers and TOR switches, featuring flexibility and easy maintenance.

• Aggregation/Core Layer: MPO builds 40G/100G backbones to improve density and bandwidth.

• Advantages: Balances access flexibility and backbone high-speed capabilities, and is an industry standard architecture.

5.3 AI Computing Clusters/Supercomputing Centers: Full-Scenario MPO/MTP

• Requirements: 400G/800G high-density interconnection, low-latency and large-bandwidth parallel transmission.

• Characteristics: Tight cabinet space, strict cable management, and short upgrade cycles.

• Conclusion: MPO/MTP is the only solution that meets the requirements of bandwidth density and scalability.

5.4 Telecom Operators/Metropolitan Area Network Backbones: LC Dominates, MPO Complements

• Long-Distance Trunk Lines: LC single-mode WDM transmission is stable with controllable loss.

• Intra-Computer Room Interconnection: MPO improves aggregation layer density and simplifies cabling.

VI. Best Practices for LC and MPO Hybrid Deployment

6.1 Application of MPO-LC Branch Jumpers

MPO backbone + LC branch is the most commonly used hybrid solution. MPO connects core switches and converts to LC access servers through branch jumpers, balancing density and flexibility.

6.2 Polarity Management Specifications

MPO polarity errors will cause link failure. It is recommended to uniformly adopt Type A/B polarity standards and use pre-terminated optical cables with clear identification to avoid on-site wiring errors.

6.3 Cleaning and Testing Standards

• LC: Use a cleaning pen + microscope for inspection, and single-core testing is simple.

• MPO: Multi-core end-faces must use a dedicated cleaning box, and each core loss must be tested one by one to ensure parallel channel consistency.

6.4 Future 800G/1.6T Upgrade Reservation

When planning 400G and above networks, priority should be given to 24-core MPO or MTP high-density connectors, reserving the number of cores to meet the upgrade needs of the next-generation speed.

VII. Conclusion: How to Make the Right Choice Quickly

The choice between LC and MPO depends on speed level, cabling density, operation and maintenance capabilities, and upgrade planning:

• Pursue low cost, easy maintenance, and 10G/25G access → Choose LC

• Pursue high density, 40G/100G/400G parallel backbone, and long-term upgrade → Choose MPO

• Medium and large-scale data centers → LC access + MPO backbone hybrid architecture

In high-speed network construction, there is no absolutely better connector, only a more suitable solution for the scenario. Reasonably matching LC and MPO can achieve the optimal balance between bandwidth, density, cost, and operation and maintenance.

VIII. Common FAQs

8.1 Can LC be used for 400G networks?

Yes, but it requires BiDi or WDM technology, with higher module costs, and cannot achieve parallel high-density transmission, only suitable for special short-distance scenarios.

8.2 What is the difference between MPO and MTP?

MTP is a high-performance upgraded version of MPO, with higher alignment accuracy, lower loss, support for hot swapping, and more suitable for ultra-high-speed scenarios above 400G.

8.3 How to choose connectors for multi-mode and single-mode?

MPO is preferred for multi-mode short-distance parallel transmission; LC is preferred for single-mode long-distance serial transmission; dedicated MPO models can be selected for high-end single-mode parallel transmission.

8.4 How to reduce MPO failures during cabling?

Adopt pre-terminated MPO optical cables, strictly implement cleaning procedures, standardize polarity management, and avoid on-site polishing and manual wiring.
