OM3 vs OM5 Multimode Fiber: Performance Comparison for Modern Data Centers

Introduction



In the fast-evolving landscape of modern data centers, where artificial intelligence (AI), cloud computing, hyperscale infrastructure, and high-performance computing drive unprecedented bandwidth demands, the choice of optical fiber infrastructure is critical. Multimode fiber (MMF) remains a cost-effective and widely deployed solution for short-reach connections within data centers, typically spanning distances under 500 meters. Among the various multimode fiber grades—OM1 through OM5—OM3 and OM5 represent key milestones in performance evolution.



OM3, introduced in the early 2000s, became the workhorse for 10 Gigabit Ethernet (10GbE) deployments, while OM5, standardized around 2016 as Wideband Multimode Fiber (WBMMF), was designed to address the needs of emerging short-wavelength division multiplexing (SWDM) technologies and higher-speed protocols like 400G and beyond. This article provides a comprehensive performance comparison between OM3 and OM5 multimode fibers, focusing on their technical specifications, transmission capabilities, suitability for contemporary data center applications, cost implications, and future-proofing potential. We will examine how these fibers handle modal dispersion, attenuation, bandwidth, and compatibility with advanced transceivers in the context of 100G, 400G, 800G, and AI-driven workloads.



Data centers today prioritize not only raw speed but also density, power efficiency, scalability, and total cost of ownership (TCO). With the explosion of GPU clusters for AI training and inference, cabling density has become a bottleneck—racks filled with thousands of fibers can obstruct airflow and complicate management. OM5's ability to support multiple wavelengths on fewer fibers offers a compelling advantage here. Yet OM3, being more mature and affordable, still holds relevance in many upgrade scenarios. This comparison aims to equip network architects, data center operators, and IT professionals with the insights needed to make informed decisions.







 What is OM3 Multimode Fiber?



OM3 is a laser-optimized multimode fiber with a 50/125 µm core/cladding diameter. It features an effective modal bandwidth (EMB) of 2000 MHz·km at 850 nm and is typically jacketed in aqua color for easy identification. Developed to support vertical-cavity surface-emitting laser (VCSEL) sources, OM3 marked a significant improvement over earlier OM1 and OM2 fibers, which relied on light-emitting diodes (LEDs) and suffered from higher modal dispersion.



Key technical specifications for OM3 include:

- Core diameter: 50 µm

- Cladding diameter: 125 µm

- Modal bandwidth (850 nm): 2000 MHz·km

- Attenuation: Typically ≤ 3.0–3.5 dB/km at 850 nm

- Jacket color: Aqua

- Light source: VCSEL at 850 nm



OM3 was standardized to reliably support 10GbE (10GBASE-SR) over distances up to 300 meters. It also handles 40GBASE-SR4 and 100GBASE-SR4 over approximately 100 meters and 70 meters, respectively, using parallel optics with multiple fibers (usually 8 or 12 fibers via MPO/MTP connectors for 40G/100G). In practice, OM3 became the de facto standard for many enterprise and data center backbone links in the 2010s, offering a good balance of performance and cost for 10G-centric environments.





                                                                                           ZORA MPO Trunk Fiber-OM3



Its laser-optimized design minimizes differential mode delay (DMD), allowing higher data rates than legacy multimode fibers. However, OM3 is limited to a single primary wavelength (around 850 nm) and does not efficiently support wavelength multiplexing technologies without significant performance degradation. This limitation becomes apparent as data centers transition to 400G and higher speeds, where parallel optics require more fiber strands, increasing cabling complexity and cost.



In modern data centers, OM3 is still widely installed in legacy infrastructure or budget-sensitive projects. It performs adequately for ToR (Top of Rack) connections, server-to-switch links up to 100–300 meters at 10G/25G/40G, and many general-purpose enterprise LAN applications. Its maturity means abundant availability, lower pricing, and broad compatibility with existing transceivers.

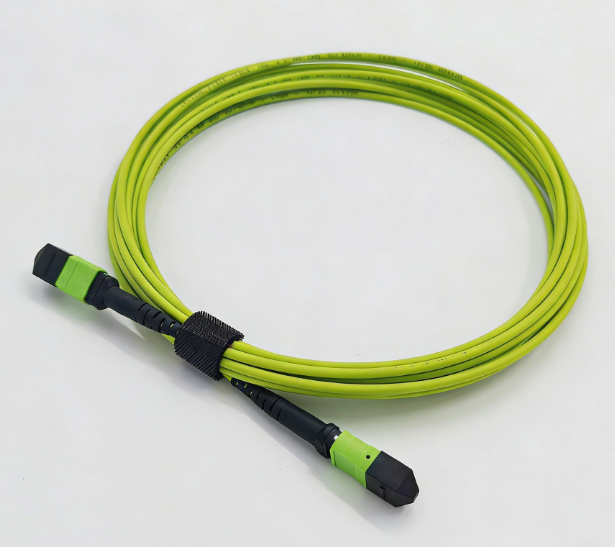

 What is OM5 Multimode Fiber?



OM5, also known as Wideband Multimode Fiber (WBMMF), builds upon the foundation of OM4 (which has 4700 MHz·km bandwidth at 850 nm) but extends capabilities across a broader wavelength range. Standardized by TIA-492AAAE in 2016 and recognized in ISO/IEC 11801, OM5 maintains the 50/125 µm geometry but specifies effective modal bandwidth at both 850 nm (≥4700 MHz·km) and 953 nm (≥2470 MHz·km). Its jacket is lime green (or lime) for identification.



Key specifications for OM5:

- Core diameter: 50 µm

- Cladding diameter: 125 µm

- Modal bandwidth: 4700 MHz·km at 850 nm; additional specification at 953 nm for wideband operation

- Attenuation: Typically ≤ 3.0 dB/km at 850 nm (often lower in the 850–953 nm range)

- Jacket color: Lime green

- Light source: VCSEL, optimized for SWDM (850–953 nm range)



OM5 is explicitly designed for short-wavelength division multiplexing (SWDM), which allows multiple data channels (typically 4 wavelengths: ~850, 880, 910, 940 nm) to be transmitted over a single fiber pair. This dramatically reduces the number of physical fibers required for high-speed links. For instance, 40G or 100G SWDM4 can run over just 2 fibers instead of 8 in parallel optics, and emerging 400G solutions benefit similarly.



Backward compatibility is a major strength: OM5 performs at least as well as OM4 (and better than OM3) at the traditional 850 nm wavelength while adding future-proofing for multi-wavelength applications. It supports 10GbE up to 550 meters, 40G/100G up to 150 meters (or more with SWDM), and is positioned for 400GBASE-SR4.2 or SWDM-based 400G/800G links with extended reach compared to OM3/OM4 in certain configurations—up to 150 meters for some 400G variants versus much shorter distances on lower-grade fibers.



In high-density AI clusters and hyperscale data centers, OM5 enables fewer cables, better airflow, simplified management, and lower overall infrastructure costs despite a higher per-meter price. It is ideal for greenfield deployments or major overhauls targeting 400G+ and terabit-scale fabrics.



 Detailed Performance Comparison: OM3 vs OM5



 1. Bandwidth and Dispersion Characteristics

The core performance differentiator is modal bandwidth, which determines how well the fiber handles multiple light paths (modes) without excessive pulse spreading.



- OM3: 2000 MHz·km at 850 nm. This supports reliable 10G transmission but experiences higher modal dispersion at elevated speeds or longer distances.

- OM5: 4700 MHz·km at 850 nm (matching or exceeding OM4) plus wideband optimization up to ~953 nm. This results in significantly lower effective modal dispersion across the SWDM spectrum, enabling higher aggregate throughput on fewer fibers.



OM5's wideband capability provides roughly 2–4x the usable bandwidth in multi-wavelength scenarios compared to OM3, which is restricted to single-wavelength operation.



 2. Transmission Distance by Data Rate

Transmission distance varies with speed, transceiver type (parallel vs. SWDM/BiDi), and link loss budget. Typical maximum reaches (approximate, based on standard-compliant transceivers and low-loss connectors):



- 10GbE (10GBASE-SR): OM3 ~300 m; OM5 ~550 m

- 40GbE (40GBASE-SR4 parallel): OM3 ~100 m; OM5 ~150 m

- 100GbE (100GBASE-SR4 parallel): OM3 ~70 m; OM5 ~100–150 m

- 100G SWDM4: OM3 not supported efficiently; OM5 ~150 m

- 400GbE (e.g., 400GBASE-SR8 or SR4.2): OM3 limited or unsupported beyond very short reaches (~30–70 m in some cases); OM5 ~70–150 m depending on variant, with SWDM offering advantages in fiber count reduction



For parallel optics (common in 40G/100G/400G SR4/SR8), OM5 extends reach modestly over OM3 but shines in SWDM configurations, where it can achieve 3x or more reach at 400G compared to OM4 equivalents in certain multiplexed setups. OM3 struggles with higher speeds due to bandwidth limitations, often requiring signal regeneration or shorter links.



Attenuation is similar (~3.0 dB/km), but OM5's optimized profile across wavelengths provides better overall power budgets for multi-lane systems.

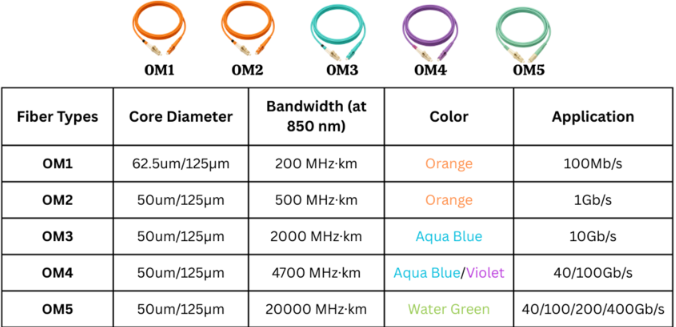

            Comparison table graphic showing OM1–OM5 differences, including jacket colors and bandwidth.

 3. Fiber Count and Density

- OM3: Relies on parallel optics—e.g., 8 fibers for 40G/100G SR4, 16 fibers for many 400G SR8 implementations. This leads to higher cable counts, bulkier trunks, and increased congestion in trays and racks.

- OM5: SWDM reduces fiber count by up to 75% (e.g., 2 fibers for 40G/100G SWDM4 instead of 8). For 400G, SWDM8 or similar can use far fewer strands, easing airflow, reducing weight, and lowering installation costs in dense AI GPU fabrics.



In a typical hyperscale rack with hundreds of 400G links, OM5 can cut cabling volume dramatically, improving cooling efficiency and reducing power consumption indirectly.



 4. Compatibility and Future-Proofing

Both fibers are backward compatible with VCSEL-based transceivers at 850 nm. However, OM5 adds native support for SWDM transceivers without performance penalties at higher wavelengths. OM3 can technically carry SWDM signals but with reduced distance and higher error rates due to lower bandwidth at non-850 nm wavelengths.



For future upgrades to 800G or 1.6T, OM5 is better positioned, as standards bodies continue to leverage its wideband properties. OM3 may require full rip-and-replace in 5–7 years for ultra-high-speed AI clusters, while OM5 offers longer lifespan.



 5. Cost Considerations

- OM3: Lower material and deployment costs; widely available and cheaper per meter. Ideal for cost-sensitive retrofits or 10G/40G-heavy environments.

- OM5: Higher upfront cost (typically 20–50% more than OM4 equivalents), but TCO savings from reduced fiber count, fewer transceivers in SWDM setups, and extended usability can offset this in high-density, high-speed deployments. Installation labor may decrease due to simpler cable management.



In large-scale data centers, the fiber reduction benefit of OM5 often yields net savings within 2–3 years through lower capex on cabling infrastructure and opex on maintenance/power.



 Applications in Modern Data Centers



Modern data centers, especially those supporting AI/ML workloads, demand low-latency, high-bandwidth interconnects between servers, switches, and storage. OM3 remains viable for:

- Legacy 10G/25G server connections

- Edge or smaller enterprise data centers with moderate density

- Budget upgrades where distances are under 100 m and speeds ≤100G



OM5 excels in:

- Hyperscale and AI clusters requiring 400G/800G fabrics

- High-density leaf-spine architectures needing fiber minimization

- Future-proof backbones supporting SWDM for wavelength-efficient scaling

- Environments prioritizing reduced cable bulk for better thermal management and rack utilization



With the rise of 800GBASE-SR8 and similar standards, OM5's performance edge becomes more pronounced, supporting longer reaches and higher lane counts without proportional increases in fiber infrastructure. Many vendors like Corning (LazrSPEED OM5) and CommScope offer pre-terminated OM5 solutions optimized for rapid deployment in EDGE or structured cabling systems.



 Advantages and Disadvantages



OM3 Advantages:

- Proven reliability and widespread adoption

- Lower cost

- Sufficient for many current 10G–100G links

- Easy identification (aqua jacket)



OM3 Disadvantages:

- Limited reach at higher speeds

- High fiber count for parallel optics

- Poor support for SWDM/wideband applications

- May require replacement sooner for next-gen speeds



OM5 Advantages:

- Superior bandwidth and wideband support

- Reduced fiber count via SWDM (up to 75% savings)

- Extended reach for 100G+ and 400G applications

- Better future-proofing for 800G+ and AI workloads

- Backward compatible with OM3/OM4 equipment at 850 nm



OM5 Disadvantages:

- Higher initial cost

- Lime green jacket may require retraining for identification in mixed environments

- Full benefits realized only with SWDM-capable transceivers (which may also cost more initially)



 Conclusion and Recommendations



In summary, OM3 and OM5 multimode fibers serve different stages of data center evolution. OM3 offers solid, cost-effective performance for 10G–100G environments with moderate density and shorter upgrade horizons. OM5, with its wideband optimization and SWDM compatibility, delivers superior scalability, density efficiency, and longevity for modern and future high-speed data centers, particularly those embracing AI-driven 400G/800G fabrics.



For new (greenfield) deployments targeting 100G+ or AI clusters, OM5 is the recommended choice despite the premium—its fiber reduction and extended capabilities provide clear TCO advantages. For brownfield upgrades, evaluate existing OM3 infrastructure: if links are short and speeds will remain ≤100G for the next 3–5 years, OM3 can be retained or incrementally upgraded. Otherwise, migrating to OM5 during major refreshes makes strategic sense.



Network planners should consider not only current requirements but also projected growth, transceiver ecosystems, and cabling standards compliance (TIA, ISO/IEC, IEEE). Testing with proper power meters and OTDRs remains essential, and partnering with reputable vendors ensures quality pre-terminated solutions.



Ultimately, the shift from OM3 to OM5 mirrors the broader industry move toward more efficient, wavelength-rich optical infrastructures. Choosing wisely today can prevent costly overhauls tomorrow in the relentless pursuit of higher performance in data centers.
