In network cabling, Category 6 cable (Cat6) is currently a mainstream choice, supporting bandwidth up to 250MHz and Gigabit Ethernet transmission, and even 10Gbps over short distances. Cat6 cables are divided into two types: Unshielded Twisted Pair (UTP) and Shielded Twisted Pair (STP/FTP/SFTP). They differ significantly in performance, structure, and application scenarios. This article will provide a detailed comparison to help you choose the right cable.
Cat6 cables typically have 4 pairs (8 cores) of twisted wires inside, with a cross skeleton to isolate the pairs and reduce internal crosstalk.

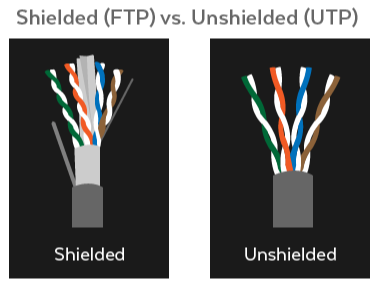

l Unshielded (UTP): Relies solely on the twisted pair structure and cross skeleton to reduce interference, with only a PVC jacket on the outside. No metal shielding layer.
l Shielded (STP/FTP): Adds a metal shielding layer (such as aluminum foil or braided mesh) around the twisted pairs. Common types include F/UTP (overall foil shield), S/FTP (double shield: foil + braid). The shielding layer effectively blocks external electromagnetic interference.

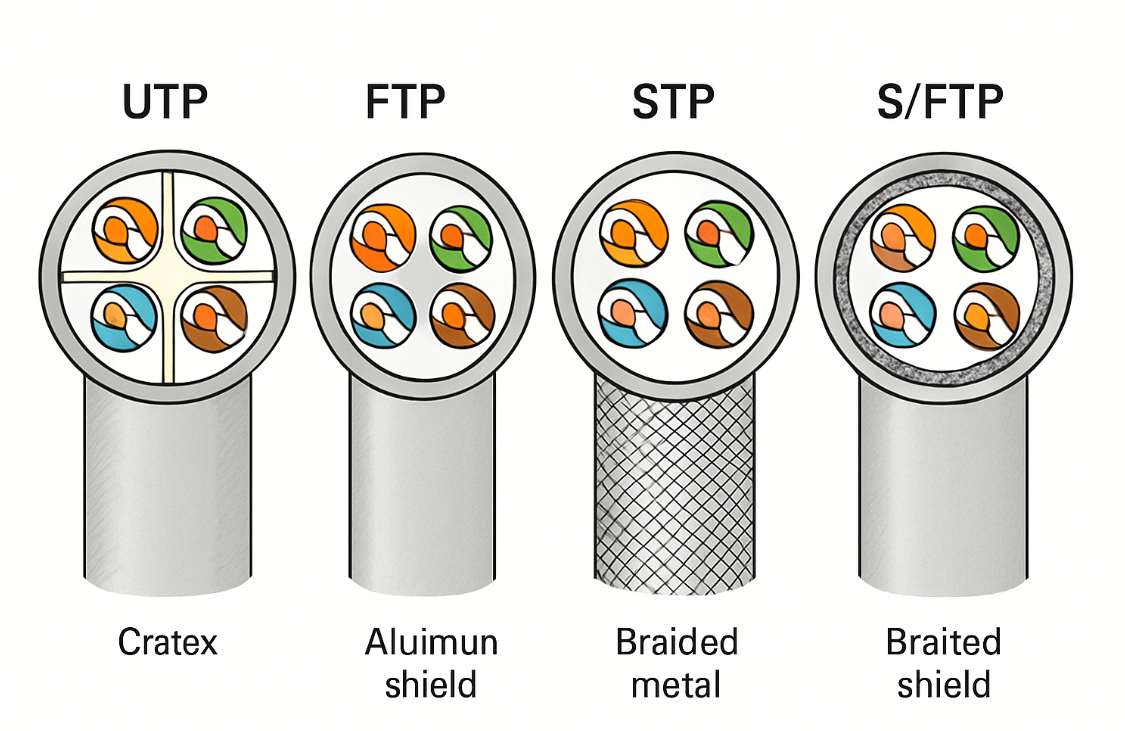

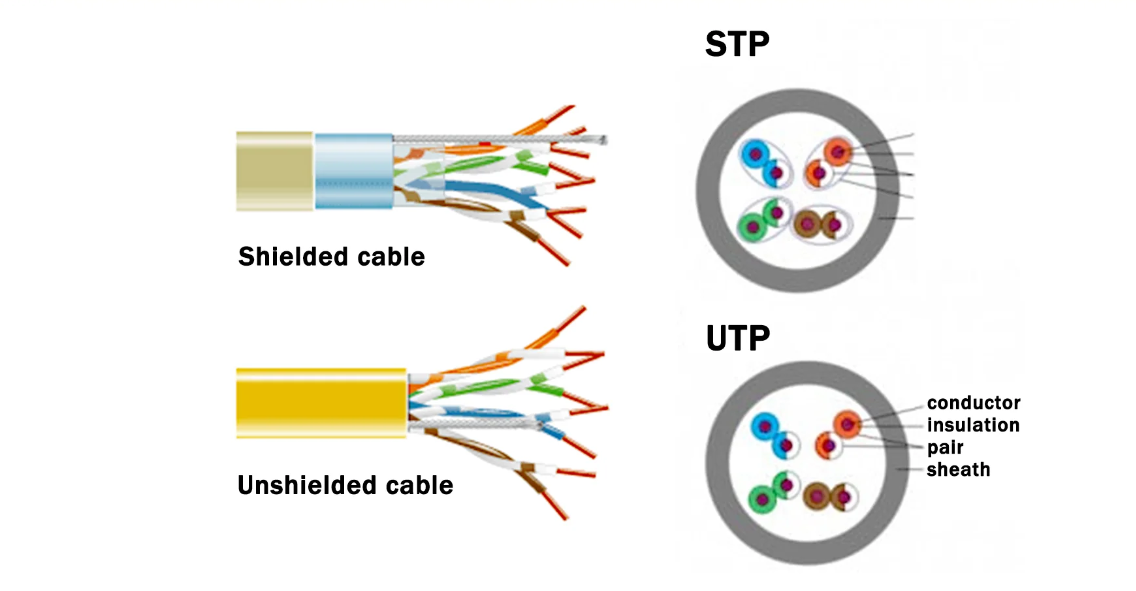

A cross-sectional comparison is more intuitive:
From the cross-section views, unshielded cables have a simple internal structure, while shielded cables feature one or more additional metal protective layers.
Item | Unshielded (UTP) | Shielded (STP/FTP/SFTP) |
Interference Resistance | Moderate, relies on twisting and skeleton to reduce crosstalk | Excellent, effectively shields against external EMI and RFI |
Transmission Distance | Standard 100 meters, supports Gigabit; 10G over short distances | Same, but more stable in interference-prone environments |
Transmission Speed | Supports 1Gbps, 10Gbps over short distances | Same, more reliable in high-interference settings |
Security/Confidentiality | Moderate | Better, prevents signal leakage and eavesdropping |
Advantages of Unshielded (UTP):
· Lower cost (typically 20-50% cheaper than shielded).
· Lightweight, smaller diameter, flexible and easy to bend, convenient for installation.
· No grounding required, simple construction, suitable for most homes and offices.
Disadvantages:
· Susceptible to interference in strong electromagnetic environments (e.g., near motors, transformers, or power lines), leading to signal attenuation or packet loss.
Advantages of Shielded (STP):
· Strong interference resistance, ideal for industrial, hospital, data center, or high-security scenarios.
· Reduces crosstalk between cables, more stable transmission, especially in dense cabling.
· Prevents electromagnetic leakage, enhancing data security.
Disadvantages:
· Higher cost, thicker and stiffer cable, complex installation (requires full shielding components and proper grounding; otherwise, shielding may be ineffective or counterproductive).
· Heavier, larger bend radius, harder to route.
· Choose Unshielded (UTP): Homes, ordinary offices, schools, and other low-interference environments. Currently, over 90% of civilian and commercial cabling uses UTP—high cost-effectiveness and sufficient for Gigabit needs.
· Choose Shielded (STP): Factories, hospitals, financial server rooms, data centers, parallel strong power cabling, or classified environments. Shielded provides significantly better network stability in severe interference.
Category 6 unshielded and shielded cables are essentially equivalent in transmission performance; the main differences lie in interference resistance and cost. For most users, unshielded Cat6 cable is the preferred choice—inexpensive, easy to install, and sufficient. If your environment has obvious electromagnetic interference (e.g., cables running in the same tray as power lines), consider the shielded version. When cabling, opt for pure copper cores and avoid inferior products like copper-clad aluminum to ensure long-term stability.
