Views: 0 Author: Site Editor Publish Time: 2025-08-14 Origin: Site
In modern office environments and data centers, the management and organization of cables is a crucial issue. With the continuous increase of electronic devices, the usage of various cables (such as network cables, telephone lines, power lines, etc.) is also growing increasingly large. If cables are not managed properly, it will not only lead to a messy office environment, but also may cause safety hazards and even affect the normal operation of the network and equipment.
Cable managers and patch panels, as professional cable management tools, can effectively simplify cable organization work, improve work efficiency, optimize space utilization, and ensure the safe operation of equipment. This article will provide a detailed introduction to the types, functions, usage methods of cable managers and patch panels, as well as their applications in various scenarios, to help readers better understand and apply these tools for cable management.

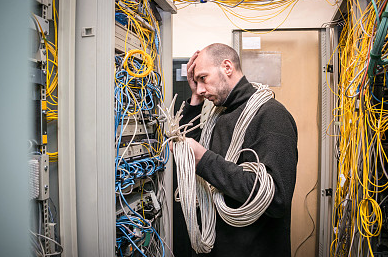

A disordered cable layout can lead to difficulties in connecting equipment, and it takes a lot of time to find and separate cables during maintenance and upgrades. By using cable managers and patch panels, cables can be neatly classified and fixed, making equipment connection and maintenance more convenient and significantly improving work efficiency.
Reasonable planning of cable layout can prevent cables from occupying too much space and reduce interference to office areas and equipment rooms. Cable managers and patch panels can neatly store cables, free up valuable floor and wall space, and make the working environment neater and more orderly.
Messy cables may lead to problems such as cable damage, short circuits or overheating, thereby causing safety hazards such as fires. Through effective cable management, the friction and compression between cables can be reduced, external damage to cables can be avoided, and the safe operation of equipment can be ensured.
A neat cable layout can make the office environment and data center look more professional and aesthetically pleasing. Good cable management not only helps enhance the company's image but also creates a more comfortable working environment for employees.
A cable manager is a tool used for organizing, securing and protecting cables. It is usually made of plastic, metal or other durable materials, and comes in a variety of designs and specifications to adapt to different cable types and usage scenarios.
Function: Mainly used for organizing the cables of desktop devices such as computers, printers, telephones, etc. It can neatly store the cables under or on the desktop, preventing them from being scattered haphazardly on the ground.
Features: Compact design, easy to install and use. It usually comes with multiple cable channels and fixtures, allowing for the simultaneous management of multiple cables.
Application scenarios: Offices, meeting rooms, home studios, etc.
Function: It is used to fix and organize cables laid along the wall. It can hide the cable within the wall or close to it, reducing the space occupied by the cable.
Features: Easy to install, usually fixed to the wall by pasting or nailing. It is available in a variety of colors and materials, which can match the interior decoration style.
Application scenarios: offices, homes, commercial places, etc.

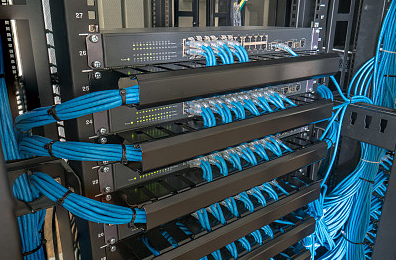

Function: Specifically designed for server racks and data centers, it is used to organize cables within the racks. It can neatly fix the cables on the rack, preventing them from entangling with each other and ensuring the heat dissipation and ventilation of the equipment.
Features: Flexible design, can be customized according to the size of the rack and the layout of the equipment. It usually comes with cable labels and marking functions, facilitating management and maintenance.
Application scenarios: Data centers, server rooms, etc.
Function: It is used to manage cables under the floor, typically in large data centers and commercial buildings. It can neatly store the cables under the floor to prevent them from being disturbed by the outside world.
Features: Installed under the floor, it has excellent protective performance and can prevent cables from being damaged by moisture, dust and mechanical factors.
Application scenarios: Data centers, commercial buildings, etc.
Classification and organization: A cable manager can help separate different types of cables (such as network cables, power lines, telephone lines, etc.) to prevent mutual entanglement and interference.
Fixation and protection: Through the fixing device of the cable manager, the cable can be firmly fixed at the designated position to prevent loosening or falling off. Meanwhile, the cable manager can also provide certain protection to prevent the cables from being damaged externally.
Labels and Markings: Many cable managers come with label or marking functions, which can conveniently identify cables and facilitate management and maintenance.
Aesthetics and tidiness: The design of cable managers usually focuses on aesthetics and tidiness, which can make the cable layout more orderly and enhance the overall aesthetic appeal of the environment.

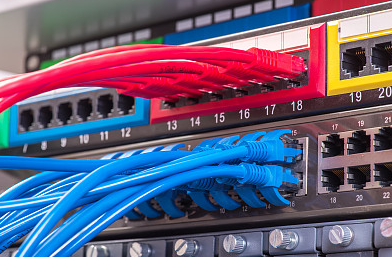

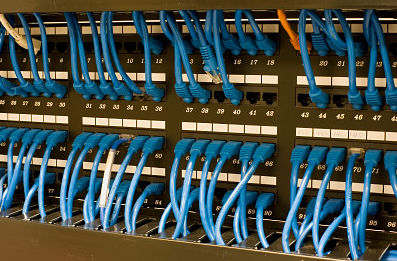

A patch panel is a device used for centralized management and distribution of cables. It is usually installed on cabinets or walls and is used to connect network devices (such as routers, switches, servers, etc.) and terminal devices (such as computers, printers, etc.). The main function of a patch panel is to simplify cable connections and enhance the reliability and maintainability of the network.
Function: It is used to connect network devices and terminal devices, and supports multiple network transmission media (such as Cat5e, Cat6 network cables, etc.). It can neatly fix network cables on the patch panel, facilitating management and maintenance.
Features: It has multiple port types (such as RJ-45, RJ-11, etc.) and can be flexibly configured as needed. It usually comes with label and marking functions to facilitate the identification of the connection relationship of cables.
Application scenarios: Data centers, offices, schools, etc.
Function: It is used to connect voice communication devices (such as telephones, fax machines, etc.) and supports multiple voice transmission media (such as telephone lines, etc.). It can neatly fix the voice cables on the patch panel, facilitating management and maintenance.
Features: It has multiple port types (such as RJ-11, BNC, etc.) and can be flexibly configured as needed. It usually comes with label and marking functions to facilitate the identification of the connection relationship of cables.
Application scenarios: Offices, schools, hospitals, etc.
Function: It is used to connect optical fiber communication devices (such as optical fiber routers, optical fiber switches, etc.) and supports multiple optical fiber transmission media (such as single-mode optical fiber, multi-mode optical fiber, etc.). It can neatly fix optical fibers on the patch panel, facilitating management and maintenance.
Features: It has multiple port types (such as SC, LC, FC, etc.) and can be flexibly configured as needed. It usually comes with label and marking functions to facilitate the identification of the connection relationship of optical fibers.
Application scenarios: Data centers, communication machine rooms, etc.
Centralized management: The patch panel can centrally manage multiple cables on one device, facilitating unified management and maintenance. Through the patch panel, cables can be quickly identified and connected, improving work efficiency.
Flexible allocation: The patch panel can flexibly allocate cables as needed and supports multiple connection methods (such as direct connection, cross connection, etc.). This makes the expansion and upgrade of network and communication systems more convenient.
Labels and markings: Patch panels usually come with label and marking functions, which can conveniently identify cables and facilitate management and maintenance.
Enhancing reliability: Through patch panels, mutual interference between cables can be reduced, thereby improving the reliability of networks and communication systems. Meanwhile, the patch panel can also provide certain protection to prevent cables from being damaged externally.
Choose the right desktop cable manager: Select a desktop cable manager of appropriate size and functionality based on the number and types of desktop devices. For instance, if you need to manage multiple network cables and power lines, you can choose a manager with multiple cable channels.
Install the cable manager: Install the cable manager under or on the desktop, ensuring its location is convenient for use and does not affect the operation of the equipment. It can usually be fixed on the desktop by pasting or screwing.
Organize the cables: Insert the cables of the desktop device into the channels of the cable manager and sort them by type and purpose. For example, place the network cable in one channel and the power cord in another.
Fixing cables: Use the fixing devices of the cable manager (such as straps, clamps, etc.) to firmly fix the cables in the channel to prevent them from loosening or falling off.
Marking cables: Use labels or marker pens to mark the cables, indicating their purpose and the devices they are connected to. For example, mark "Computer-Router" on the network cable and "Printer" on the power cord, etc.
Select the appropriate wall cable manager: Choose a wall cable manager of the right size and function based on the quantity and type of wall cables. For instance, if you need to manage multiple network cables and telephone lines, you can choose a manager with multiple cable channels.
Install the cable manager: Install the cable manager on the wall, ensuring its position is convenient for use and does not affect the operation of the equipment. It can usually be fixed to the wall by pasting or nailing.
Organize the cables: Insert the wall cables into the channels of the cable manager and sort them by type and purpose. For example, place the network cable in one channel and the telephone line in another.
Fixing cables: Use the fixing devices of the cable manager (such as straps, clamps, etc.) to firmly fix the cables in the channel to prevent them from loosening or falling off.
Marking cables: Use labels or marker pens to mark the cables, indicating their purpose and the devices they are connected to. For example, mark "Computer - Router" on the network cable and "Telephone - switch" on the telephone line, etc.
Select the appropriate rack cable manager: Based on the size of the rack and the layout of the equipment, choose a rack cable manager of the right size and function. For instance, if there are multiple servers and switches within the rack, a manager with multiple cable channels and fixtures can be selected.
Install the cable manager: Install the cable manager on the rack, ensuring its location is convenient for use and does not affect the heat dissipation and ventilation of the equipment. It can usually be fixed on the frame by screws or clips.
Organize the cables: Insert the cables inside the rack into the channels of the cable manager and sort them by type and purpose. For example, place the network cable in one channel and the power cord in another.
Fixing cables: Use the fixing devices of the cable manager (such as straps, clamps, etc.) to firmly fix the cables in the channel to prevent them from loosening or falling off.
Marking cables: Use labels or marker pens to mark the cables, indicating their purpose and the devices they are connected to. For example, mark "Server - Switch" on the network cable and "Server - Power Supply" on the power cord, etc.
Select the appropriate patch panel: According to the requirements of the network or communication system, choose the appropriate type and specification of patch panel. For instance, if it is necessary to manage multiple network cables, a network patch panel can be chosen. If you need to manage optical fibers, you can choose an optical fiber distribution frame.
Install the patch panel: Install the patch panel on the cabinet or wall, ensuring its position is convenient for use and does not affect the heat dissipation and ventilation of the equipment. It can usually be fixed to the cabinet or wall by screws or clips.
Connect the cables: Insert the cables into the ports of the patch panel and classify and connect them according to their types and uses. For example, insert the network cable into port RJ-45 and the telephone line into port RJ-11.
Fixed cables: Use the fixing devices of the patch panel (such as straps, clamps, etc.) to firmly fix the cables to the ports to prevent them from loosening or falling off.
Marking cables: Use labels or marker pens to mark the cables, indicating their purpose and the devices they are connected to. For example, mark "Computer - Router" on the network cable and "Telephone - switch" on the telephone line, etc.
In an office environment, cable managers and patch panels can help organize the cables of desktop devices such as computers, printers, and telephones, making the office environment neater and more orderly. The desktop cable manager can be used to organize the cables under the desktop, preventing them from being scattered haphazardly on the ground. The wall cable manager can be used to organize the cables laid along the wall, reducing the space occupied by the cables. Patch panels can be used to connect network devices and terminal devices, simplify cable connections, and enhance the reliability and maintainability of the network.
In a data center environment, cable managers and patch panels are indispensable tools. The rack cable manager can help organize the cables inside the rack and ensure the heat dissipation and ventilation of the equipment. Patch panels can be used to connect network devices and servers, simplify cable connections, and enhance the reliability and maintainability of the network. By using cable managers and patch panels, mutual interference between cables can be effectively reduced, and the overall performance of the data center can be improved.
In a school environment, cable managers and patch panels can help organize cables in classrooms and offices. The desktop cable manager can be used to organize the cables of desktop devices such as computers, printers, and telephones, making classrooms and offices neater and more orderly. Patch panels can be used to connect network devices and terminal devices, simplify cable connections, and enhance the reliability and maintainability of the network. By using cable managers and patch panels, mutual interference between cables can be effectively reduced, and the network performance of the school can be improved.
In a hospital environment, cable managers and patch panels can help organize cables in wards and offices. The desktop cable manager can be used to organize the cables of desktop devices such as computers, printers, and telephones, making wards and offices neater and more orderly. Patch panels can be used to connect network devices and terminal devices, simplify cable connections, and enhance the reliability and maintainability of the network. By using cable managers and patch panels, mutual interference between cables can be effectively reduced, and the network performance of the hospital can be improved.
Choosing high-quality cable managers and patch panels is of vital importance. Poor-quality products may cause problems such as cable damage and unstable connections. When making a purchase, pay attention to the material, craftsmanship and certification status of the product. For instance, choose products with properties such as flame retardancy and corrosion resistance to ensure their durability in various environments.
Select a cable manager and patch panel with appropriate functions based on actual needs. For example, if it is necessary to manage multiple network cables, a patch panel with multiple RJ-45 ports can be chosen. If you need to manage optical fibers, you can choose a patch panel with optical fiber ports. At the same time, the applicability of the product should be taken into consideration to ensure its compatibility with existing equipment and cables.
Choosing products from well-known brands usually leads to better quality and after-sales service. Products of well-known brands undergo strict quality inspections and have higher reliability and stability. Meanwhile, brand manufacturers usually offer comprehensive after-sales services, such as technical support, product repair and replacement, etc., which can provide users with better guarantees.
When choosing cable managers and patch panels, select the appropriate products based on your budget. Although high-quality products may be slightly more expensive, in the long run, they can offer better performance and reliability, and reduce the costs of later maintenance and replacement. Therefore, within the budget, try to choose high-quality products as much as possible.
Regularly inspect the cable manager and patch panel to check if the cables are damaged, loose, aged or in any other condition. If any problems are found, they should be repaired or replaced in a timely manner to ensure the safety and stable operation of the cable.
Keep the cable manager and patch panel clean to prevent dust, dirt and other substances from affecting the performance of the cables. It can be cleaned with a clean soft cloth or dedicated cleaning tools, but be careful to avoid using corrosive cleaning agents.
In daily use, it is necessary to avoid applying external forces to the cable manager and patch panel, such as pulling or colliding, to prevent damage to the equipment. If you need to move the device, unplug the cable first to avoid damaging it due to pulling.
Make marks on the cable manager and patch panel, indicating the purpose of the cable and the connected equipment. This helps to quickly locate problems and improve maintenance efficiency.
Cable managers and patch panels are indispensable tools in modern office environments and data centers. By using these tools, the cable arrangement work can be effectively simplified, work efficiency can be improved, space utilization can be optimized, and the safe operation of equipment can be ensured. This article provides a detailed introduction to the types, functions, usage methods of cable managers and patch panels, as well as their applications in various scenarios. It is hoped that this can help readers better understand and apply these tools to manage cables.
In practical applications, choosing the appropriate cable manager and patch panel is of vital importance. High-quality, fully functional and reliable brand products should be selected based on actual needs, budget and environmental conditions. At the same time, attention should be paid to the maintenance and upkeep of cable management. Regularly check the equipment status, keep it clean, avoid external force damage, and make good marks to ensure the long-term stable operation of the cable management system.
In conclusion, good cable management not only enhances work efficiency and environmental aesthetics, but also reduces safety hazards, improves the reliability and service life of equipment. It is hoped that this article can provide valuable references for readers, helping them manage cables better and create an efficient, safe and clean working environment.
