Views: 0 Author: Site Editor Publish Time: 2025-12-22 Origin: Site
With the rapid advancement of 5G, cloud computing, and the Internet of Things (IoT), fiber optic cables have become the backbone of high-speed data transmission. They transmit information via light signals, offering advantages like high bandwidth, strong resistance to interference, and low attenuation. These cables are widely used in telecommunications, internet infrastructure, broadcasting, and more. This article explores the classification of fiber optic cables based on their applications, helping readers understand the best choices for different scenarios.
Fiber optic cables (often simply called optical cables) can be classified in various ways: by transmission mode (single-mode vs. multi-mode) or by structure (loose-tube vs. tight-buffered). However, classification by application focuses on the deployment environment and installation method. The main types are as follows:

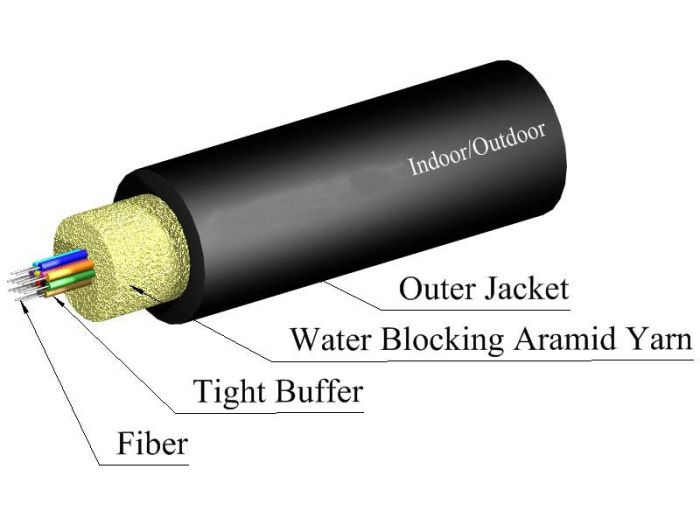

Indoor cables are primarily used for wiring inside buildings, such as data centers, office buildings, and equipment rooms. They are flexible, flame-retardant, and bend-resistant, making them easy to install and maintain. They typically feature tight-buffered structures with low-smoke zero-halogen (LSZH) flame-retardant jackets for fire safety.
Typical applications: Vertical/horizontal wiring within buildings, FTTH (Fiber to the Home) indoor segments, and data center patch cords.
Outdoor cables are designed for harsh external environments, resisting UV rays, moisture, temperature extremes, and mechanical damage. Common subtypes include aerial, direct-buried, and duct cables, often with armoring (steel or aluminum tape) and water-blocking materials.
- Aerial cables: Hung on poles, either self-supporting (e.g., ADSS) or lashed.
- Direct-buried cables: Buried directly in the ground, rodent-resistant and crush-proof.
- Duct cables: Installed in underground conduits for easy maintenance.
Typical applications: Metropolitan networks, backbone networks, and rural broadband access.
Submarine cables are the "arteries" of intercontinental communication, featuring complex structures with multiple armor layers (steel wire protection), waterproofing, and repeaters (for signal amplification). They withstand extreme conditions like high pressure, corrosion, and even shark bites.
Typical applications: International internet backbones and transcontinental data transmission. Remarkably, about 99% of global international data traffic travels through submarine cables.
These are specialized "last-mile" cables, often butterfly-shaped drop cables or figure-8 cables, known for high flexibility and ease of bending during installation into homes. They are commonly used in PON (Passive Optical Network) systems.
Typical applications: Home broadband, smart communities, and intelligent homes.
Beyond the mainstream types, there are cables tailored for niche scenarios:
- Tactical/Military cables: Portable, high tensile strength, and impact-resistant for field operations.
- Armored cables: Rodent-proof and damage-resistant for subways, tunnels, etc.
- Sensing cables: Used for temperature or strain monitoring (e.g., pipeline surveillance).
Selecting a fiber optic cable involves considering factors like transmission distance, bandwidth requirements, installation environment, cost, and safety standards. For instance, long-haul backbones favor single-mode outdoor cables, while home access prefers FTTH drop cables. As technology evolves, cables are trending toward higher density and lower loss, supporting 10Gbps and beyond.
