What is Optical Fiber Cladding?

Views: 0     Author: Site Editor     Publish Time: 2025-12-17      Origin: Site




光纤包层2


Definition and Principle of Optical Fiber Cladding

Optical fiber cladding is one or more layers of material with a lower refractive index that surrounds the higher refractive index fiber core. This design enables total internal reflection at the core-cladding interface, confining light within the core and ensuring efficient, low-loss transmission.

In most optical fibers, light propagation within the cladding is suppressed. However, certain specialized fibers support cladding modes where light travels through both the cladding and core. The ability to support optical modes depends on the fiber type—single-mode fibers support only one mode, while multimode fibers allow multiple modes to propagate.

Standard Optical Fiber Cladding Diameter and Its Importance

The cladding diameter of optical fibers is typically standardized at 125 μm, a size that strikes an optimal balance between mechanical strength, flexibility, and practical usability. While cladding diameter does not significantly affect optical guiding properties, it has substantial practical implications.

Mechanical Durability and Flexibility

The 125 μm standard diameter provides robustness while maintaining flexibility for bending and installation. Non-standard diameters may increase brittleness or require specialized designs.

Tool Compatibility

Most fiber handling tools (such as strippers and fusion splicers) are calibrated for the 125 μm standard. Non-standard diameters can complicate operations and require specialized equipment.

Splicing and Connection Challenges

Splicing fibers with mismatched cladding diameters is more complex and may require custom solutions to minimize loss or connection failure.

Manufacturing Precision Control

During the fiber drawing process, real-time feedback systems strictly maintain consistent cladding diameter for product reliability and uniformity.

Advantages of Optical Fiber Cladding

  • Minimized Signal Loss: Effectively reduces signal dissipation caused by core irregularities, enabling longer transmission distances.

  • Enhanced Mechanical Strength: Provides additional protection against environmental and physical damage.

  • Support for Smaller Core Diameters: Allows compact fiber designs without compromising performance.

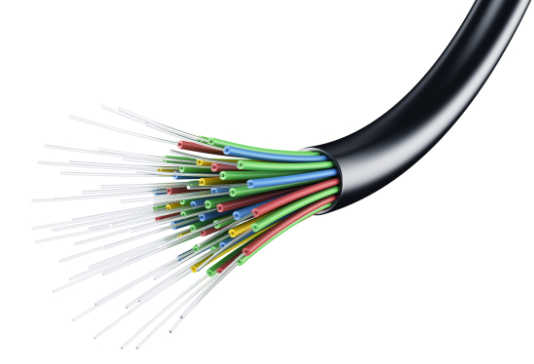

  • 光纤包层1

Disadvantages of Optical Fiber Cladding

  • Complex Splicing and Connection: Requires precise alignment, especially with differing cladding diameters, often needing professional equipment and expertise.

  • Vulnerability to Damage: If the cladding is damaged, total internal reflection is disrupted, leading to signal leakage or complete fiber failure.

Recommended High-Quality Optical Fiber Products — ZORA (www.zoracz.com)

ZORA (www.zoracz.com), a professional manufacturer of network cables and optical fiber products, offers industry-standard 125 μm cladding optical fiber products, including:

  • Single-mode (9/125 μm) and multimode (50/125 μm, 62.5/125 μm) fiber patch cords and pigtails

  • Indoor/outdoor fiber optic cable systems

  • MPO pre-terminated patch cords

  • AOC active optical cables

  • High-density data center solutions

All products strictly adhere to the 125 μm cladding standard, ensuring excellent mechanical performance, compatibility, and low-loss transmission. Visit www.zoracz.com for more product details and customized solutions.
