Wi-Fi 7 (IEEE 802.11be), as the latest generation of wireless local area network standards, has been entering the enterprise commercial market at an unprecedented speed since the Wi-Fi Alliance officially launched its certification in January 2024. However, as enterprise IT decision-makers compete to upgrade their networks to Wi-Fi 7, an easily overlooked but crucial aspect is emerging: Is the underlying structured cabling system that supports Wi-Fi 7 ready?
Traditionally, structured cabling has often been regarded as a "one-time investment, long-term use" passive base layer in IT infrastructure investment. However, the advent of Wi-Fi 7 is breaking this conventional thinking - when the aggregated throughput of access points (aps) easily exceeds 10 Gbps and the power supply of PoE jumps from 30W to over 90W, the existing copper cable cabling systems of enterprises are facing unprecedented pressure. Some industry observers even directly stated, "Wi-Fi 7 is breaking the copper cable local area network." Although this judgment has a certain degree of foresight, it accurately reveals a core fact: the upper limit of wireless performance is increasingly determined by the lower limit of wired infrastructure.
From the perspective of structured cabling design, this article will systematically analyze the profound impact of Wi-Fi 7 on copper cable selection, PoE power supply architecture, optical fiber deployment strategy and overall network topology, and provide future-oriented cabling planning suggestions for enterprises.
To understand why Wi-Fi 7 imposes such strict requirements on wiring design, it is first necessary to examine its core technical characteristics.
Wi-Fi 7 expands the channel bandwidth from 160MHz of Wi-Fi 6 to 320MHz, and upgrades the modulation mode from 1024-QAM to 4096-QAM (4K-QAM), with a theoretical peak rate as high as 46 Gbps. This leapfrog rate increase means that when multiple RF units of the AP are running at full speed simultaneously, the aggregated throughput can easily exceed 10 Gbps. Compared with the theoretical upper limit of 9.6 Gbps of Wi-Fi 6, the actual available bandwidth has increased several times.
MLO is one of the signature technologies of Wi-Fi 7, allowing aps to establish links simultaneously on the 2.4GHz, 5GHz and 6GHz frequency bands, and bundling multiple cross-band links into a virtual link through the MAC layer. This technology significantly reduces latency while enhancing throughput, but it also objectively increases the bandwidth requirements of the AP for the backhaul link - concurrent data streams from multiple frequency bands ultimately need to be sent to the network through wired ports.
The MRU (Multiple Resource Unit) technology of Wi-Fi 7 expands the number of RU resources that a single terminal can simultaneously occupy from one in Wi-Fi 6 to multiple, significantly improving spectral efficiency and reducing latency by up to 90%. In the campus network, the collaborative solution of 50G-PON and Wi-Fi 7 can even achieve nanosecond-level jitter and deterministic delay within 100 microseconds. The achievement of these performance targets is highly dependent on the stability and low latency of the wired backhaul link - any signal attenuation or interference in the cabling process will directly weaken the performance on the wireless side.
These technical features all point to one conclusion: Wi-Fi 7 is not a "minor optimization" of Wi-Fi 6, but a paradigm shift in network architecture. If the bottleneck of previous generations of Wi-Fi mainly lay in the wireless channel itself, then the bottleneck of Wi-Fi 7 has moved forward to the wired side. Higher-performance Wi-Fi 7 access points will output much more traffic than traditional aps. If 1G access or limited bandwidth uplink is still used, it will cause obvious bottlenecks.
In enterprise structured cabling, the TIA-568 series standards define the category classification of copper cables: Cat5e supports 1 Gbps to 100 meters, with a bandwidth of 100 MHz; Cat6 supports 10 Gbps within 55 meters and has a bandwidth of 250 MHz. Cat6A supports speeds ranging from 10 Gbps to 100 meters, with a bandwidth of 500 MHz. Cat8 supports 25/40 Gbps but has a distance limit of within 30 meters. It is mainly used for interconnection between data center cabinets.
In the Wi-Fi 6 era, the uplink demand for 10 Gbps aps was not yet widespread, and many enterprises were still using Cat6 or even Cat5e for horizontal cabling. However, the popularity of Wi-Fi 7 is pushing this situation to the limit - when the multi-radio units of the AP are running at full speed, the traditional Gigabit Ethernet uplink will immediately become a bottleneck.
Panduit clearly states in its technical white paper that Cat6a cables have become the de facto standard for supporting Wi-Fi 6 and higher versions for three reasons: Firstly, Cat6a is the lowest cable grade for supporting 10GBASE-T, ensuring a 10-gigabit connection between Wi-Fi 7 aps and switches; Secondly, Cat6a has a significantly better carrying capacity for PoE than Cat5e, which can effectively reduce the cable heating when high-power aps are powered. Finally, considering that Wi-Fi 7 and future technologies may exceed 10 Gbps, it is recommended that at least two Cat6a cables be deployed at each AP point to achieve a maximum backhaul capacity of 20 Gbps through link aggregation.
A more forward-looking deployment solution adopts a "four-cable strategy" : pre-installing four Cat6a cables at AP points. Initially, only one (Wi-Fi 5/6 stage) may be used. As the density increases, it will be migrated to two (Wi-Fi 6 high-density deployment), and eventually all four will be enabled in Wi-Fi 7 stage (two for primary and backup link aggregation, and two for extending adjacent aps). This phased utilization model of "Day 1 pre-installation, Day 2 expansion, Day 3 full load" can reduce the single-point cabling cost from over $500 in the later stage to $35- $50 in the initial stage.
By 2026, this trend has been further consolidated. Industry consensus holds that choosing Cat5e or Cat6 for new projects is no longer about "saving money", but rather locking in a performance ceiling that Wi-Fi 7 access layer and AI workloads will soon reach. Cat6A, with its 23AWG thick conductor, clear cross-isolation structure and 500 MHz bandwidth, has become the preferred solution for PoE++ heat dissipation and external crosstalk.
It is worth noting that although Cat7 and Cat8 have higher frequency characteristics and rate support, they are not mainstream choices in enterprise-level cabling. Cat7 is fully shielded and is mainly used for 10G links in environments with high electromagnetic interference. Cat8 is a fully shielded copper cable solution that supports 25/40 Gbps but is limited to a distance of approximately 30 meters. It is mainly suitable for short-distance interconnection within data centers. For most enterprise office environments, Cat6A, with its superior cost-effectiveness and ease of installation, has become the best solution to balance current demands with future expansion.
The power consumption of Wi-Fi 7 AP is much higher than that of the previous generation products. Take FS AP-N755 as an example. Its overall power consumption reaches 60W and it needs to be powered by IEEE 802.3bt PoE++. Even entry-level enterprise Wi-Fi 7 aps, such as EnGenius ECW520, require approximately 21W of PoE+ power supply and have a maximum power consumption of 21W. The high-performance models such as Ruijie RG-AP9751-R even support multiple power receiving methods including PoE, PoE+, and POE ++.
In contrast, the power consumption of aps in the Wi-Fi 6 era was generally between 15 and 25 watts. The reasons for the significant increase in power consumption of Wi-Fi 7 aps include: concurrent operation of three frequency bands, higher-power RF front ends, larger-scale MIMO antenna arrays (16×16 configuration), as well as possible USB extensions and Internet of Things modules.
The IEEE 802.3bt (PoE++) standard extends PoE technology from two pairs of wire power supply to four pairs of wire power supply simultaneously. Type 3 supports a maximum output of 60W, and Type 4 supports a maximum output of 90W. This poses new challenges for structured cabling:
First, the requirements for wire gauges have been raised. In the PoE++ scenario, thicker copper wires can reduce DC resistance, decrease voltage drop and heat generation. The 23AWG solid copper wire commonly used in Cat6A has become the preferred choice for high-power long-distance transmission, while the 24AWG Cat6 wire may face the risks of heat dissipation and voltage drop under dense wiring and high-power loads.
Second, thermal management has become a design consideration. When multiple cables carrying PoE++ current are tightly bundled, heat accumulation will further increase the cable resistance, which may cause voltage drops or even restarts of the power-receiving equipment at peak power. Enterprises should view cable bundling as a heat dissipation design issue rather than a simple maintenance detail.
Thirdly, the PoE budget needs to be re-planned. Even if it is temporarily impossible to upgrade the switch, enterprises can consider purchasing Wi-Fi 7 aps that support power derating operation, temporarily disable the 6 GHz frequency band or limit the MLO function through firmware, and release all performance after the infrastructure is upgraded. This strategy of "hardware first, software unlocked later" can effectively alleviate the pressure of one-time capital expenditure.
Driven by Wi-Fi 7, the role of optical fibers in enterprise cabling is undergoing fundamental changes. In the past, optical fibers were mainly used in backbone links and data center interconnection. Nowadays, optical fibers are extending to the edge and even reaching AP points.
The port configuration of Wi-Fi 7 AP clearly reflects this trend. FS AP - N755, for example, the cable interface includes a 100 m / 1000 m / 2.5 G / 5 G / 10 gbase -t Ethernet port, 1 1000 m / 2.5 G / 5 G / 10 gbase -t Ethernet port, 10 G SFP + 1 light mouth, And one 10/100/1000 BASE-T RJ45 port. Cloudswit's AP7360 also offers 10G SFP+ WAN ports, supporting copper cable or fiber uplink. TP-Link TL-N7AP13000-TC3-PD even provides one 10G network port, one 2.5G network port and two 10G optical ports for data transmission. The popularity of SFP+ optical ports means that enterprise Wi-Fi 7 aps have the ability to natively support direct fiber connection.
The core advantages of optical fibers over copper cables were further magnified in the Wi-Fi 7 era: The transmission distance far exceeds the 100-meter limit of copper cables, has stronger anti-electromagnetic interference ability, a service life of more than 30 years, and supports continuous smooth evolution - the bandwidth can be upgraded by increasing the wavelength without the need to re-lay the cables.
Zte's AI 10G all-optical campus solution takes 50G-PON and Wi-Fi 7 technologies as the core to build a new type of all-optical network for the campus and upgrade the connection capability from both the medium and architecture dimensions. By replacing the traditional active aggregation switch with a passive splitter, the network architecture is simplified from the three-layer "core - aggregation - access" to a flat two-layer architecture, which not only reduces the number of faulty nodes but also enhances the overall stability.
In actual deployment, the eastern Smart park of Qianjiang Motorcycle has adopted a combined solution of "POL all-optical network ×Wi-Fi 7", pioneering a brand-new path of optical network foundation and wireless reach. This solution takes advantage of the low cost and anti-interference features of optical fibers to provide a stable backhaul channel for high-concurrency wireless services.
From the perspective of total cost of ownership (TCO), the advantages of the fiber optic solution are equally significant. Compared with traditional copper cable local area networks, optical local area networks can reduce cable usage by up to 70%, decrease the number of equipment rooms, and lower cooling requirements, thereby reducing network energy consumption by up to 40% and saving TCO by up to 50%. Ruijie Networks' optical and electrical hybrid cable solution has achieved the integration of over a kilometer data transmission and PoE power supply, which can significantly reduce the deployment space and wiring complexity in the weak current room.
For many business projects in Canada and Europe, the core issue in cabling design is no longer "fiber optic or copper cable", but "where to deploy fiber optic to avoid having to start over in the future".

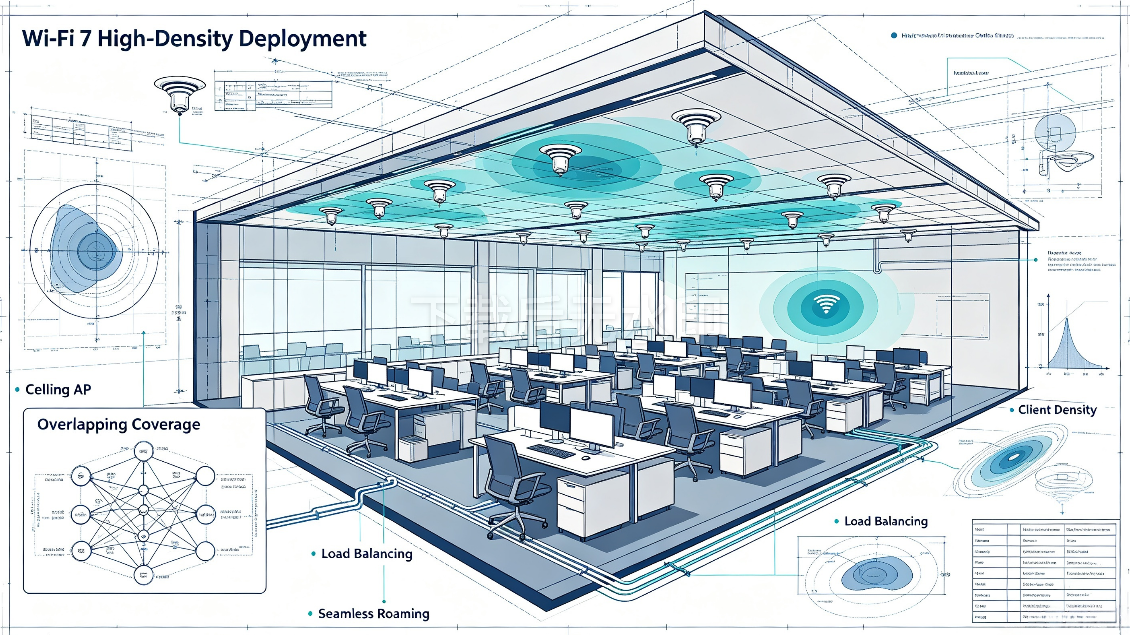

The high-density deployment of Wi-Fi 7 is redefining the role of the Intermediate patch panel (IDF). By 2026, IDF will no longer be a passive wiring cabinet, but a floor-level edge node that aggregates data from Wi-Fi 7, PoE++ devices and AI sensors.
This evolution is driven by three major factors: the 10G uplink and PoE++ power supply requirements of Wi-Fi 7 aps, the high-bitrate data streams continuously generated by AI cameras and sensors, and the unified bearer of IT/OT/BMS systems on a single converged network. In real projects, IDF has become the first convergence point for thousands of device links. Designing it as a "small edge data center" in advance can avoid the painful upgrades brought about by the expansion of AI cameras, sensors and smart building systems in the future.
Access layer switches must be upgraded synchronously to match the capabilities of Wi-Fi 7 aps. Firstly, the switch needs to support multi-rate ports - 2.5GbE, 5GbE and 10GbE have become standard configurations. Secondly, the switch needs to provide sufficient PoE power budget and high reliability power supply capability. The S3400 series switch can provide a total POE ++ power of up to 640W. Thirdly, in high-density AP deployment scenarios, switches need to have high backplane bandwidth, high packet forwarding capability, and sufficient buffers to cope with the rapid accumulation of concurrent wireless traffic.
Enterprises should also give priority to choosing access switches that support 25G/100G uplink and ensure that their backplane switching capacity is sufficient to support full-duplex line-speed forwarding for all ports. For high-density scenarios such as large conference rooms and gymnasiums, it is even necessary to consider configuring 25GbE direct connection for a single AP.
For new enterprise buildings or large-scale park renovations, this article suggests adopting the following structured cabling strategies:
- Horizontal cabling : The entire line adopts Cat6A as the minimum standard, reserving at least two Cat6A cables to each AP point. It is recommended to reserve four in high-density areas.
- Backbone cabling : OS2 single-mode optical fibers are used to connect the MDF with each IDF node, and redundant optical fiber cores are reserved to support future bandwidth upgrades and link aggregation.
- Power Supply Planning : PoE++ (802.3bt) should be the standard configuration for switch selection. The total PoE budget should cover the power consumption requirements of all aps under peak conditions and reserve a margin of more than 30%.
- Construction Specifications : Follow the 90-meter permanent link plus 10-meter patch cord channel length limit of TIA-568; Maintain a minimum distance of 50 millimeters from power cables; Use Velcro instead of cable ties to fix the cables and maintain the minimum bending radius. After the construction is completed, use the Level VI tester to certify each link.
- Document Management : Label identification and document archiving should be carried out in accordance with the TIA-606-C standard. Test reports for each link should be permanently preserved.
For existing buildings, a complete rewiring is not always feasible. Enterprises can adopt a phased upgrade strategy
- Phase One (Short-term) : Replace the existing PoE+ switches with multi-gigabit switches that support POE ++, and prioritize upgrading the cabling in high-density areas to Cat6A.
- Phase Two (Mid-term) : Introduce optical fibers in the main communication corridors and backbone paths, and gradually migrate the aggregation layer and above networks to an all-optical architecture.
- Phase 3 (Long-term) : With the large-scale deployment of Wi-Fi 7 devices, the remaining copper cable segments will be evaluated and replaced, ultimately achieving end-to-end 10 gigabit + bandwidth capability.
IT is worth noting that the TIA/EIA-568 series standards are still being updated continuously (the latest version is TIA-568.2D), and enterprise IT decision-makers should pay close attention to the standard developments. Meanwhile, the IEEE 802.3bt specification for PoE++ is constantly being improved. The thermal management and power classification issues of four-pair power supply will directly affect the feasibility of high-density deployment.
The arrival of Wi-Fi 7 is not merely an upgrade of wireless technology; it marks a fundamental reshaping of the enterprise network architecture. When the ceiling of wireless performance is significantly raised, all eyes should be turned to the foundation that carries it - the structured cabling system.
From Cat6A becoming the new benchmark, PoE++ power supply becoming the standard, to optical fibers extending from the backbone to the edge, Wi-Fi 7 is driving a paradigm shift in structured cabling from multiple dimensions. Enterprise IT decision-makers need to elevate the cabling system to a strategic position of equal importance to core network equipment - after all, no matter how fast an AP or how powerful a switch is, they ultimately cannot exceed the limits set by physical cables.
As industry observers put it: "Wi-Fi 7 May be very popular, but if your wired infrastructure can't keep up, it's basically just a marketing gimmick." In the long run, building a flexible cabling infrastructure for Wi-Fi 7 and even Wi-Fi 8 will be a key cornerstone for maintaining a leading position in the digital competition.
