SC vs. LC Fiber Optic Jumpers: Understanding the Differences for Your Network

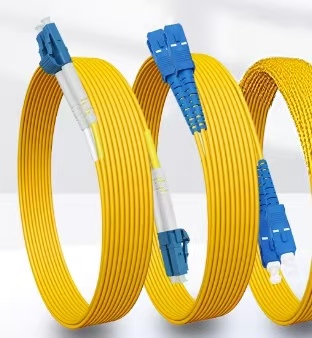

SC/SC

LC/LC

Fiber optic jumpers, also known as patch cords, are critical components in modern telecommunications and data center networks, serving as flexible connectors that bridge equipment and ensure seamless data transmission. In outdoor and indoor Fiber to the X (FTTX) projects, data centers, and enterprise networks, choosing the right jumper is pivotal for performance, scalability, and cost efficiency. Two of the most widely used connector types are SC (Subscriber Connector) and LC (Lucent Connector). As a leading Chinese manufacturer of comprehensive cabling solutions, ZORA (www.zoracz.com) offers both SC and LC jumpers tailored for diverse applications, including single-mode and multi-mode fibers, ruggedized for outdoor use, and optimized for high-density environments.

But what exactly sets SC and LC jumpers apart? This blog dives deep into the technical, practical, and application-specific differences between SC and LC fiber optic jumpers, providing a comprehensive guide to help you select the right solution for your network. We’ll cover their design, performance, use cases, installation considerations, and future trends, all while highlighting ZORA’s high-quality products. By the end, you’ll understand why the choice between SC and LC matters and how ZORA can support your connectivity needs.

What Are Fiber Optic Jumpers?

Before diving into the differences, let’s clarify what fiber optic jumpers are. A jumper is a short fiber optic cable with connectors on both ends, used to link network devices like optical line terminals (OLTs), optical network terminals (ONTs), switches, or patch panels. They are the “last mile” of connectivity in a network, ensuring low-loss, high-speed data transfer. ZORA’s jumpers, available at www.zoracz.com, are pre-terminated with precision connectors, offering insertion loss below 0.2 dB and return loss above 55 dB, meeting TIA/EIA-568 and ITU-T standards.

SC and LC jumpers dominate the market due to their reliability and versatility. However, their distinct designs cater to different needs, making it essential to understand their differences.

SC Fiber Optic Jumpers: Design and Features

The SC (Subscriber Connector) was developed by NTT in the 1980s and has become a staple in telecommunications, particularly for FTTX deployments like FTTH (Fiber to the Home). Its key characteristics include:

· Physical Design: SC connectors feature a push-pull coupling mechanism with a 2.5 mm ceramic ferrule, ensuring precise alignment of the fiber core. The rectangular shape allows for easy handling and secure connections.

· Size: Larger than LC, with a footprint of about 7 mm x 9 mm, making it less suitable for high-density applications but robust for general use.

· Performance:

o Insertion Loss: Typically <0.2 dB (ZORA’s SC/APC jumpers achieve <0.15 dB).

o Return Loss: >50 dB for UPC (Ultra Physical Contact), >60 dB for APC (Angled Physical Contact).

o Durability: Supports 500+ mating cycles without degradation.

· Standards Compliance: Meets IEC 61754-4 and TIA-604-3, ensuring compatibility with PON (Passive Optical Network) systems.

· Applications: Commonly used in telecom, CATV, and outdoor FTTX due to its ruggedness and ease of use. ZORA’s SC jumpers are available with IP67-rated waterproof housings for harsh environments.

SC jumpers are favored for their simplicity and reliability, especially in scenarios where space isn’t a constraint. For example, in outdoor FTTH deployments, ZORA’s SC/APC jumpers ensure low-reflection connections for GPON networks, supporting speeds up to 2.5 Gbps.

LC Fiber Optic Jumpers: Design and Features

The LC (Lucent Connector), developed by Lucent Technologies, is a smaller, more modern connector designed for high-density applications. Its key features include:

· Physical Design: LC connectors use a latch mechanism similar to RJ45 plugs, with a 1.25 mm ceramic ferrule—half the size of SC. This compact design is ideal for tight spaces.

· Size: Roughly 50% smaller than SC (4 mm x 6 mm), allowing twice as many connections in the same panel space.

· Performance:

o Insertion Loss: Comparable to SC, typically <0.2 dB (ZORA’s LC/UPC jumpers achieve <0.1 dB).

o Return Loss: >55 dB for UPC, >65 dB for APC.

o Durability: Supports 500+ mating cycles, similar to SC.

· Standards Compliance: Adheres to IEC 61754-20 and TIA-604-10, widely used in high-speed networks.

· Applications: Preferred in data centers, enterprise LANs, and high-density telecom equipment. ZORA’s LC jumpers support 10Gbps to 400Gbps applications, ideal for cloud computing and 5G backhaul.

· LC’s compact size makes it the go-to choice for modern data centers where rack space is at a premium. ZORA’s LC/MPO jumpers, for instance, enable parallel optics for 100G+ networks.

Key Differences Between SC and LC Jumpers

To make an informed choice, let’s break down the differences across several dimensions:

1. Physical Size and Density

The most significant difference is size. LC’s smaller footprint allows for double the port density in patch panels or ODFs, critical for data centers. For example, a 1U rack with LC connectors can support 48 ports, while SC might handle only 24. However, SC’s larger size makes it easier to handle in outdoor settings, where technicians may wear gloves.

2. Coupling Mechanism

SC’s push-pull design ensures a secure fit, reducing accidental disconnections in environments with vibration (e.g., aerial FTTX). LC’s latch mechanism is less robust but allows for quick, tool-free connections in controlled environments like server rooms.

3. Performance

Both offer comparable optical performance, but LC’s smaller ferrule requires higher precision in manufacturing. ZORA’s automated polishing ensures both SC and LC jumpers achieve <0.2 dB insertion loss, but LC/APC may edge out slightly in return loss for high-speed applications.

4. Cost and Availability

SC jumpers are marginally cheaper due to simpler manufacturing and wider use in legacy systems. LC jumpers, being newer, may cost 10-20% more but are increasingly standard in modern networks. ZORA offers competitive pricing for both, with bulk discounts at www.zoracz.com.

5. Application Fit

· SC: Ideal for telecom (GPON, EPON), outdoor FTTX, and environments needing robust, easy-to-use connectors.

· LC: Preferred for high-density data centers, enterprise networks, and 5G/edge computing where space and speed are critical.

Choosing Between SC and LC for Your Network

The choice depends on your project’s specific needs:

· For Outdoor FTTX Projects: SC jumpers are often preferred. Their larger size simplifies field installation, and ZORA’s ruggedized SC/APC jumpers withstand harsh conditions like rain and UV exposure. For example, in FTTH deployments, SC jumpers connect splitter boxes to ONTs with minimal signal loss.

· For Data Centers and High-Density Networks: LC jumpers shine. Their compact size maximizes port density, and ZORA’s LC/MPO jumpers support next-gen 400Gbps networks. They’re ideal for connecting switches, servers, and storage systems.

· Hybrid Scenarios: Some networks use both. For instance, an FTTX backbone may use SC at distribution points and LC in data centers. ZORA provides hybrid SC-LC jumpers for such setups.

Consider these factors:

· Space Constraints: Limited rack space? Choose LC.

· Environmental Conditions: Outdoor or industrial settings? Opt for SC.

· Budget: SC for cost-sensitive projects; LC for future-proofing.

· Speed Requirements: LC for 100Gbps+; SC for up to 10Gbps.

Installation and Maintenance Best Practices

Proper handling ensures optimal performance for both SC and LC jumpers. ZORA’s products are designed for ease of use, but these tips apply:

Installation

1. Cleanliness: Use ZORA’s fiber cleaning kits to remove dust from connectors, preventing loss (e.g., >0.5 dB from contamination).

2. Connector Type: Match polish types (UPC vs. APC) to equipment. ZORA’s color-coded jumpers (blue for UPC, green for APC) simplify identification.

3. Bend Radius: Adhere to G.657.A2 standards (7.5 mm for LC, 10 mm for SC) to avoid micro-bends.

4. Testing: Use OTDR to verify insertion loss (<0.3 dB) and return loss (>50 dB). ZORA provides testing tools at www.zoracz.com.

Maintenance

· Regular Inspection: Check for wear or loose connections quarterly.

· Storage: Keep spare jumpers in ZORA’s protective cases to avoid damage.

· Labeling: Use ZORA’s labeling systems for quick identification in dense setups.

Common mistakes

· Mixing UPC and APC connectors, causing high reflections.

· Over-tightening LC latches, which can damage the ferrule.

· Neglecting cleaning, leading to signal degradation.

Real-World Applications and Case Studies

ZORA’s SC and LC jumpers have powered diverse projects:

Case Study 1: FTTH Deployment in Shenzhen

A telecom operator used ZORA’s SC/APC jumpers for a 5,000-home FTTH project. The ruggedized design withstood coastal humidity, achieving:

· 99.9% uptime with <0.2 dB loss.

· 40% faster installation than splicing.

· Cost savings of $30,000 from reduced labor.

Case Study 2: Data Center Upgrade in Shanghai

A hyperscale data center deployed ZORA’s LC/UPC jumpers for 100Gbps connections. The high-density design doubled port capacity, resulting in:

· 20% lower rack space costs.

· Latency reduced to <1 ms.

· Scalability for 400Gbps upgrades.

Case Study 3: Hybrid Campus Network

A university integrated SC jumpers for outdoor backbone links and LC jumpers for indoor data centers. ZORA’s hybrid solutions ensured:

· Seamless connectivity across 10 buildings.

· 25% energy savings from optimized cabling.

· Easy maintenance with modular jumpers.

These cases showcase how ZORA’s SC and LC jumpers meet varied needs, from telecom to high-speed data centers.

Future Trends in Fiber Optic Jumpers

By 2025, SC and LC jumpers will evolve with industry trends:

· Higher Speeds: LC jumpers will dominate for 800Gbps networks, while SC remains relevant for 10Gbps PON.

· Smart Monitoring: ZORA is developing IoT-enabled jumpers for real-time diagnostics.

· Sustainability: Eco-friendly jackets reduce environmental impact.

· Automation: Pre-terminated jumpers support robotic installation in mega data centers.

ZORA’s R&D ensures our jumpers stay ahead, available at www.zoracz.com.

Conclusion: SC or LC? ZORA Has You Covered

SC and LC fiber optic jumpers serve distinct yet complementary roles. SC excels in telecom and outdoor FTTX for its robustness, while LC is the choice for high-density, high-speed data centers. By understanding their differences—size, coupling, and application—you can optimize your network’s performance and cost.

At ZORA, we offer a full range of SC and LC jumpers, from ruggedized outdoor models to high-density MPO/LC solutions, all backed by rigorous testing and global standards. Visit www.zoracz.com to explore our catalog, request a quote, or consult our experts. Whether you’re building an FTTH network or a next-gen data center, ZORA’s jumpers will power your connectivity with reliability and efficiency.
