In the era of smart healthcare, hospitals have evolved far beyond traditional clinical facilities into highly data-driven ecosystems. From Hospital Information Systems (HIS) and PACS (medical imaging) to real-time vital sign monitoring in ICUs, a stable, high-speed network is the invisible lifeline of modern medicine.
However, medical cabling faces two extremely stringent challenges: First, hospitals are packed with highly sensitive equipment that is extremely vulnerable to Electromagnetic Interference (EMI). Second, as high-density environments for vulnerable patients, cabling materials must meet uncompromising safety and environmental standards. As a professional structured cabling manufacturer, we understand these pain points intimately. This article explores how to build a medical-grade network infrastructure that perfectly balances EMI resistance with hygienic safety.

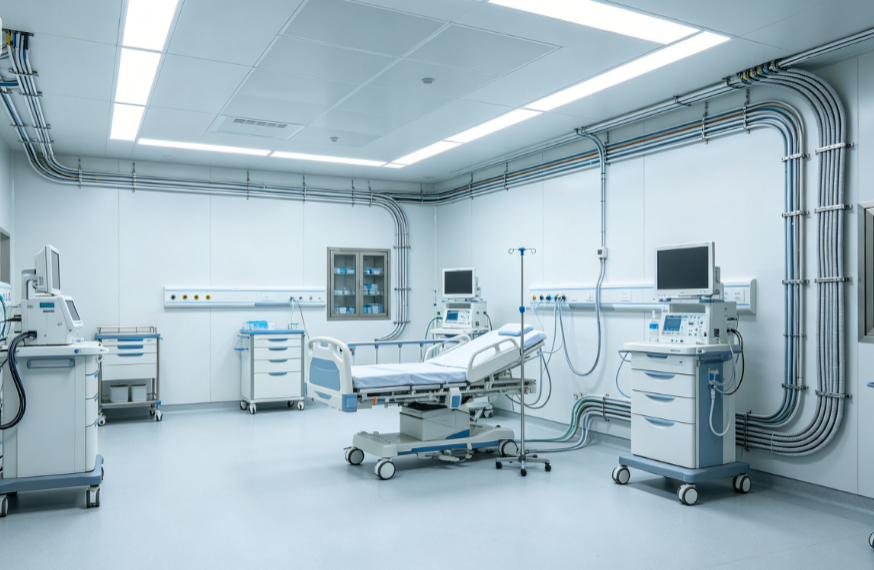

In operating rooms, ICUs, radiology departments (MRI/CT), and reproductive medicine centers, high-precision instruments are densely deployed. These devices are highly susceptible to external electromagnetic interference during operation or data transmission. Signal degradation or bit errors in network links can cause imaging delays, trigger false equipment alarms, or even compromise patient safety.
The Solution: High-Spec Shielded Systems & Fiber-to-the-Desk (FTTD)
Traditional Unshielded Twisted Pair (UTP) cables are often inadequate for high-EMI zones. Medical-grade cabling requires high-specification Shielded Twisted Pair (STP/FTP) or Fiber-to-the-Desk (FTTD) solutions. For instance, Category 7 cables are engineered for high-speed, noise-sensitive applications. Their S/FTP (Screened/Foiled Twisted Pair) structure provides dual-layer protection: each copper pair is individually wrapped in metal foil, and the entire cable is shielded by a high-density tinned copper braid, offering maximum defense against external EMI and RFI.
Alternatively, fiber optic transmission is completely immune to EMI, maintaining absolute signal purity in complex electromagnetic environments and ensuring that micro-volt level medical data is transmitted without distortion.
Hospitals are high-risk zones for cross-infection, populated by patients with weakened immune systems. In the event of a fire, the dense smoke and toxic halogen gases released by conventional cables can cause fatal secondary harm. Therefore, material selection in medical cabling must strictly adhere to safety baselines.
The Solution: LSZH Materials & Medical-Grade Antimicrobial Panels
Medical cables must pass rigorous B1-class (or higher) flame-retardant testing. Utilizing Low Smoke Zero Halogen (LSZH) jacket materials not only effectively prevents flame propagation during a fire but also minimizes smoke density and eliminates the release of toxic gases, buying critical "golden time" for emergency evacuation.
Furthermore, in high-cleanliness areas like operating rooms and ICUs, faceplates should feature medical-grade antimicrobial coatings (e.g., embedded silver-ion technology) to efficiently neutralize common pathogens. Dust-proof sliding doors on 86-type faceplates are also highly recommended to reduce dust accumulation, lower cleaning burdens, and mitigate infection risks.
Healthcare is evolving rapidly. Emerging applications like AI-assisted diagnostics and telesurgery demand virtually limitless bandwidth. An excellent medical cabling system must possess forward-looking scalability.
The Solution: Physical Isolation & F5G Evolution
Hospital networks are typically segmented into Intranet (core business), Extranet (internet access), IoT/Security, and Voice networks. Physical isolation via independent cable trays is essential to completely prevent data cross-contamination and security breaches.
For the backbone architecture, deploying single-mode or multi-mode 10G fiber optics is recommended, with the option to adopt F5G (Fiber to the Room) all-optical networks. By replacing traditional active aggregation switches with passive optical splitters, F5G delivers 10G bandwidth for instant medical image retrieval while reducing the number of wiring closets and minimizing fire hazards in equipment rooms. A single deployment can support smooth evolution for 30 years, perfectly aligning with long-term hospital expansion plans.
Medical networks are life-critical; any single point of failure can lead to catastrophic consequences. Thus, the reliability and maintainability of the cabling system are paramount.
The Solution: Redundant Design & Smart O&M
For core areas like emergency centers and ICUs, multiple independent telecom access points must be configured. The backbone links between the main cross-connect and core areas require at least two separate physical routes to ensure business continuity during single-point failures.
Additionally, integrating intelligent electronic patch panels and management software enables real-time port monitoring. By constructing a 4D digital map of "Network-Terminal-User-Application," administrators achieve global visibility. When anomalies occur, the system triggers automated alerts and pinpoints the exact location, reducing Mean Time to Repair (MTTR) from tens of minutes to mere minutes, shifting O&M from reactive troubleshooting to proactive prevention.
Medical structured cabling is not merely about "pulling cables through conduits"; it is a systematic engineering project that directly impacts patient safety and clinical efficiency. It demands a supplier with not only superior manufacturing capabilities but also a profound understanding of specialized healthcare regulations.
ZORA has been deeply rooted in the structured cabling industry for years, providing one-stop solutions tailored for high-demand scenarios like healthcare and data centers. Our medical-grade LSZH cables, EMI-resistant shielded systems, and antimicrobial faceplates are fully certified by international authorities, building a secure, stable, and future-ready network foundation for your smart hospital.
