ZRC601004A
ZORA
Product Description

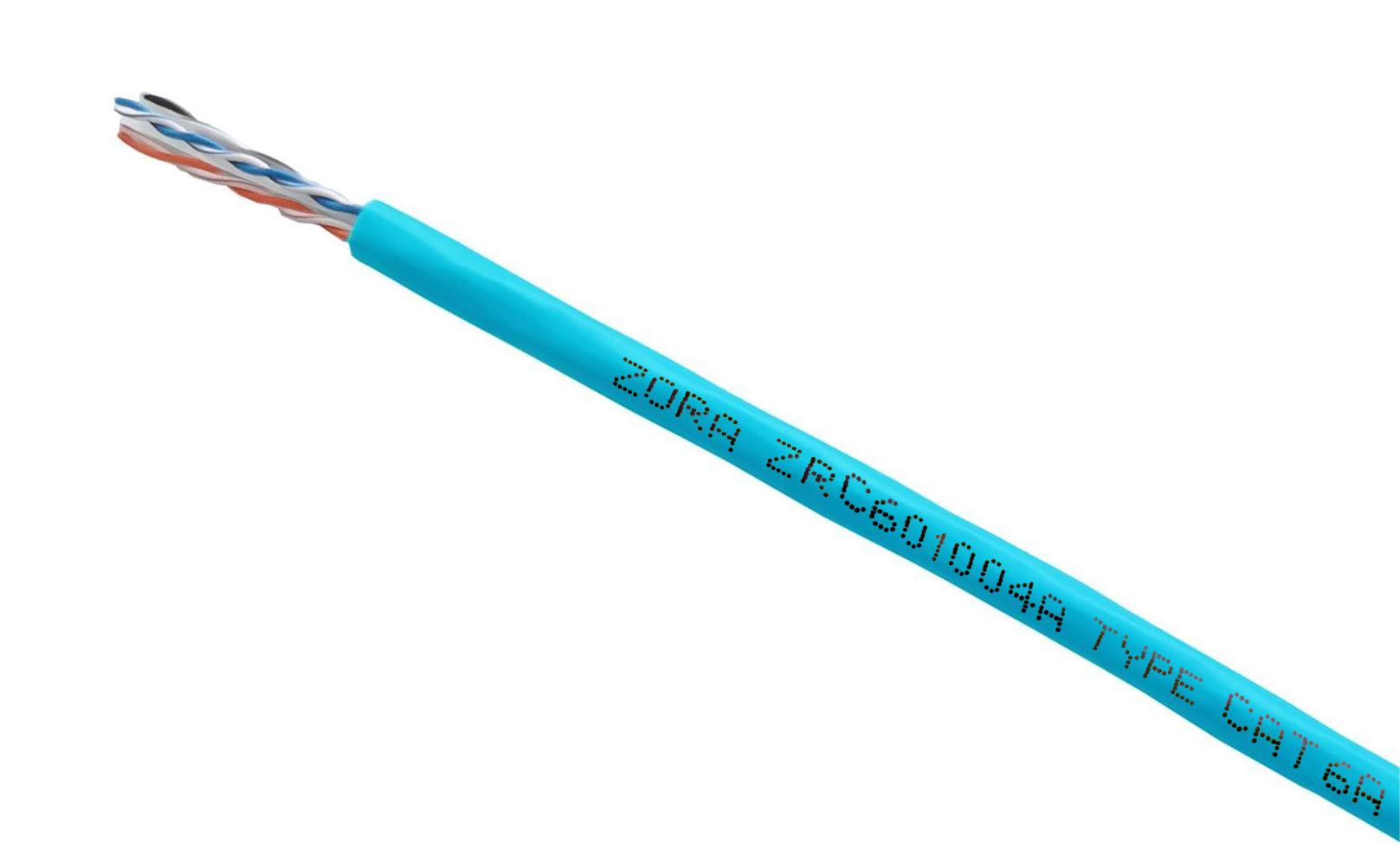

ZORA Cat 6A UTP 4P PVC cables have significant performance margins, far exceeding your high-performance requirements for network cabling systems. All components in the system meet the requirements of ANDI/TIA 568.2-D Cat 6A standards, with a maximum usable bandwidth of over 500MHz. The system is backward compatible with ZORA Cat 6 systems, and a 25-year quality assurance eliminates your worries.
1、Structure: The cable adopts a unique internal cross-bone design, which is better at ensuring the outer diameter, and effectively improves the electrical performance of NEXT, FEXT, and so on.
2、Copper material: domestic high-quality oxygen-free copper;
3、Wire：Adopting international popular and advanced tightly wrapped wire;
4、Transmission bandwidth: 500MHz; DC resistance of single conductor: ≤9.5Ω/100m; DC resistance imbalance: ≤2.5%;
5, stranding distance: the cable has a precision stranding distance;
6、Sheath: the outer sheath is PVC material or LSZH material, the inner sheath is flame retardant polyethylene;
7、Provide cable length marking to reduce waste.
YD/T1019
ANSI/TIA 568.2-D
ISO/IEC 11801
IEC 60332-1
Ordering Information | |||||
|---|---|---|---|---|---|
Product Number | Product Name | outer sheath | Color | Length Qty | Qty / Pallet |
ZRC601004A | Cat 6A UTP 4P PVC Cable | PVC | Gray | 305Mtr Reel | 24 or 40 |
ZRC601004B | Cat 6A UTP 4P PVC Cable | PVC | Blue | 305Mtr Reel | 24 or 40 |
ZRC601004C | Cat 6A UTP 4P PVC Cable | PVC | Green | 305Mtr Reel | 24 or 40 |
Colors can be customized according to customer needs
Construction | |||
1.Conductor（mm） | Solid bare copper 23AWG |
| |
2.Insulation（mm） | HDPE 1.02±0.08 | ||
3.Color Code |
White-Orange(Stripe)/Orange White-Green(Stripe)/Green White-Brown(Stripe)/Brown | ||
4.Wrapping（mm） | ----- | ||
5.Screen（mm） | ----- | ||
6.Drain wire（mm） | ----- | ||
7.Cross | Yes | ||
8.Rip cord | Yes | ||
9.Jacket（mm） | Material | PVC | |
Nom.thickness | 0.5 | ||
Color | Aqua | ||
Nom.diameter | 6.2mm±0.5mm | ||
Mechanical characteristics | |
Operating temperature | -20~75℃ |
Installation temperature | 0~75℃ |
Tensile strength.Max | 80N |
Bending radius | 8D |
Flame resistant | IEC 60332-1 |
Length of Delivery | 305m/box |
Electrical characteristics(20℃) | |
Conductor resistance .Max | 8.0Ω/100m |
Conductor resistance unbalance .Max | In pair:2%|Between pairs:4% |
Insulation resistance(DC 500V/1 min) .Min | 5000MΩ·km |
Dielectric strength（C-C, .DC.1min） | 1kV |
Mutual capacitance .Max | 5.6nF/100m |
Performance Statistics | |||||||
Frequency (MHz) | Attenuation (dB/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB/100m) | PSELFEXT (dB/100m) | Delay (ns/100m) | RL (dB) |
4 | 3.8 | 66.3 | 63.3 | 56.0 | 53.0 | 552.0 | 23.0 |
8 | 5.3 | 61.8 | 58.8 | 49.9 | 46.9 | 546.7 | 24.5 |
10 | 5.9 | 60.3 | 57.3 | 48.0 | 45.0 | 545.4 | 25.0 |
16 | 7.5 | 57.2 | 54.2 | 43.9 | 40.9 | 543.0 | 25.0 |
20 | 8.4 | 55.8 | 52.8 | 42.0 | 39.0 | 542.0 | 25.0 |
25 | 9.4 | 54.3 | 51.3 | 40.0 | 37.0 | 541.2 | 24.3 |
31.25 | 10.5 | 52.9 | 49.9 | 38.1 | 35.1 | 540.4 | 23.6 |
62.5 | 15.0 | 48.4 | 45.4 | 32.1 | 29.1 | 538.6 | 21.5 |
100 | 19.1 | 45.3 | 42.3 | 28.0 | 25.0 | 537.6 | 20.1 |
200 | 27.6 | 40.8 | 37.8 | 22.0 | 19.0 | 536.5 | 18.0 |
250 | 31.1 | 39.3 | 36.3 | 20.0 | 17.0 | 536.3 | 17.3 |
| 300 | 34.3 | 38.1 | 35.1 | 18.5 | 15.5 | 536.1 | 17.3 |
| 400 | 40.1 | 36.3 | 33.3 | 16.0 | 13.0 | 535.9 | 17.3 |
| 500 | 45.3 | 34.8 | 31.8 | 14.0 | 11.0 | 535.8 | 17.3 |
ZORA Cat 6A UTP 4P PVC Cable FAQ
It is an unshielded twisted pair (UTP) cable compliant with Cat 6A standards, consisting of 4 pairs of copper cores and a PVC jacket. It supports 10Gbps speeds with 500MHz bandwidth, ideal for high-performance networks.
Bandwidth: Cat6A supports 500MHz (vs. 250MHz for Cat6, 100MHz for Cat5e).
Speed: 10Gbps over 100m (Cat6 supports 10Gbps only up to 55m; Cat5e supports 1Gbps).
Performance: Lower crosstalk and higher stability in Cat6A.
Data centers, enterprise networks, industrial cabling
HD video streaming (4K/8K), IoT devices
Gigabit/10G Ethernet (10GBASE-T) requiring high bandwidth.
Yes, supports PoE (802.3af/at/bt) for devices like IP cameras and wireless APs.
Avoid sharp bends (minimum bend radius ≥4× cable diameter).
Keep away from strong EMI sources.
Use Cat6A-rated connectors and patch panels.
Compliant with ISO/IEC 11801-1, TIA/EIA-568.2-D; some models meet UL/CE/RoHS.
UTP offers lower cost and easier installation for non-extreme EMI environments. Shielded cables are recommended for industrial/high-interference areas.
Check printed markings (Cat6A, brand, certifications).
Validate performance via professional cable testers.
ZORA provides a 25-year system warranty (requires certified installer deployment).
White-Blue(Stripe)/Blue
