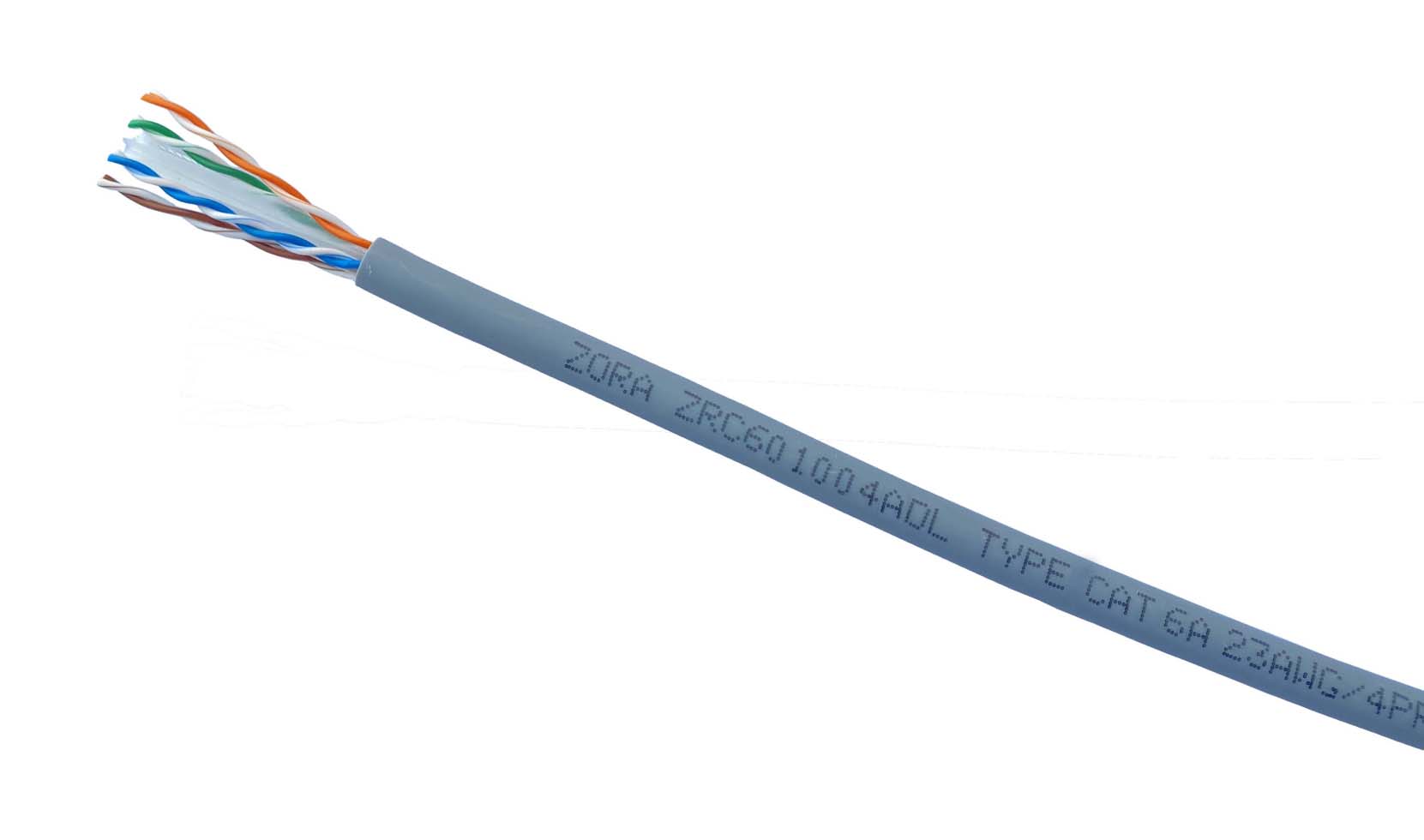

ZRC601004ADL
ZORA
Product Description
ZORA Cat 6A UTP 4P LSZH cables have significant performance margins, far exceeding your high-performance requirements for network cabling systems. All components in the system meet the requirements of ANDI/TIA 568.2-D Cat 6A standards, with a maximum usable bandwidth of over 500MHz. The system is backward compatible with ZORA Cat 6 systems, and a 25-year quality assurance eliminates your worries.
1、Structure: The cable adopts a unique internal cross-bone design, which is better at ensuring the outer diameter, and effectively improves the electrical performance of NEXT, FEXT, and so on.
2、Copper material: domestic high-quality oxygen-free copper;
3、Wire：Adopting international popular and advanced tightly wrapped wire;
4、Transmission bandwidth: 500MHz; DC resistance of single conductor: ≤9.5Ω/100m; DC resistance imbalance: ≤2.5%;
5, stranding distance: the cable has a precision stranding distance;
6、Sheath: the outer sheath is PVC material or LSZH material, the inner sheath is flame retardant polyethylene;
7、Provide cable length marking to reduce waste.
YD/T1019
ANSI/TIA 568.2-D
ISO/IEC 11801
IEC 61035-2
Ordering Information | |||||
|---|---|---|---|---|---|
Product Number | Product Name | outer sheath | Color | Length Qty | Qty / Pallet |
ZRC601004ADL | Cat 6A UTP 4P LSZH cable | LSZH | Gray | 305Mtr Reel | 24or40 |
ZRC601004B | Cat 6A UTP 4P LSZH cable | LSZH | Blue | 305Mtr Reel | 24or40 |
ZRC601004C | Cat 6A UTP 4P LSZH cable | LSZH | Green | 305Mtr Reel | 24or40 |
Colors can be customized according to customer needs

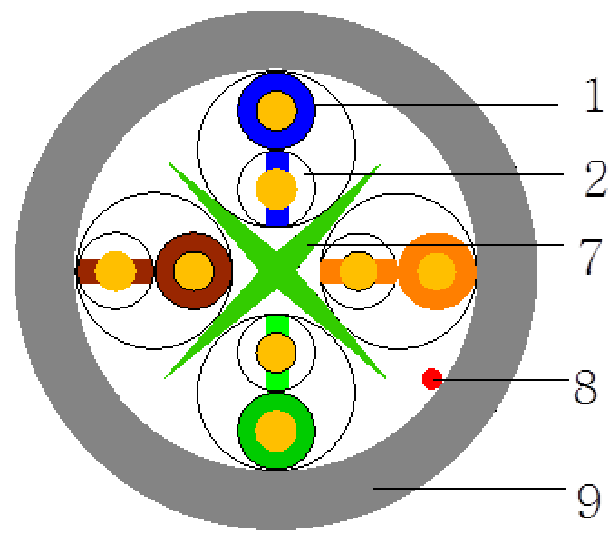

Construction | |||
1.Conductor（mm） | Solid bare copper 23AWG |
| |
2.Insulation（mm） | HDPE 1.02±0.08 | ||
3.Color Code |
White-Orange(Stripe)/Orange White-Green(Stripe)/Green White-Brown(Stripe)/Brown | ||
4.Wrapping（mm） | ----- | ||
5.Screen（mm） | ----- | ||
6.Drain wire（mm） | ----- | ||
7.Cross | Yes | ||
8.Rip cord | Yes | ||
9.Jacket（mm） | Material | LSZH | |
Nom.thickness | 0.5 | ||
Color | grey | ||
Nom.diameter | 6.2mm±0.5mm | ||
Mechanical characteristics | |
Operating temperature | -20~75℃ |
Installation temperature | 0~75℃ |
Tensile strength.Max | 80N |
Bending radius | 8D |
Flame resistant | IEC 61034-2 |
Length of Delivery | 305m/box |
Electrical characteristics(20℃) | |
Conductor resistance .Max | 8.0Ω/100m |
Conductor resistance unbalance .Max | In pair:2%|Between pairs:4% |
Insulation resistance(DC 500V/1 min) .Min | 5000MΩ·km |
Dielectric strength（C-C, .DC.1min） | 1kV |
Mutual capacitance .Max | 5.6nF/100m |
| Performance Statistics | |||||||
Frequency (MHz) | Attenuation (dB/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB/100m) | PSELFEXT (dB/100m) | Delay (ns/100m) | RL (dB) |
4 | 3.8 | 66.3 | 63.3 | 56.0 | 53.0 | 552.0 | 23.0 |
8 | 5.3 | 61.8 | 58.8 | 49.9 | 46.9 | 546.7 | 24.5 |
10 | 5.9 | 60.3 | 57.3 | 48.0 | 45.0 | 545.4 | 25.0 |
16 | 7.5 | 57.2 | 54.2 | 43.9 | 40.9 | 543.0 | 25.0 |
20 | 8.4 | 55.8 | 52.8 | 42.0 | 39.0 | 542.0 | 25.0 |
25 | 9.4 | 54.3 | 51.3 | 40.0 | 37.0 | 541.2 | 24.3 |
31.25 | 10.5 | 52.9 | 49.9 | 38.1 | 35.1 | 540.4 | 23.6 |
62.5 | 15.0 | 48.4 | 45.4 | 32.1 | 29.1 | 538.6 | 21.5 |
100 | 19.1 | 45.3 | 42.3 | 28.0 | 25.0 | 537.6 | 20.1 |
200 | 27.6 | 40.8 | 37.8 | 22.0 | 19.0 | 536.5 | 18.0 |
250 | 31.1 | 39.3 | 36.3 | 20.0 | 17.0 | 536.3 | 17.3 |
| 300 | 34.3 | 38.1 | 35.1 | 18.5 | 15.5 | 536.1 | 17.3 |
| 400 | 40.1 | 36.3 | 33.3 | 16.0 | 13.0 | 535.9 | 17.3 |
| 500 | 45.3 | 34.8 | 31.8 | 14.0 | 11.0 | 535.8 | 17.3 |
ZORA Cat 6A UTP 4P LSZH Cable FAQ
This is a Category 6A Unshielded Twisted Pair (UTP) cable with 4 pairs and Low Smoke Zero Halogen (LSZH) jacket. It supports 10Gbps Ethernet, ideal for high-density cabling, public spaces (e.g., hospitals), and eco-sensitive environments, emitting minimal smoke and no toxic halogens when burned.
Supports 10GBASE-T (10Gbps) up to 100 meters, compliant with ANSI/TIA-568.2-D (500MHz bandwidth). Shorter runs (≤50m) ensure higher stability.
Low Smoke: Enhances visibility during fires.
Zero Halogen: No toxic chlorine/bromine gases released.
Eco-Friendly: Meets RoHS and IEC 60754 standards, suitable for enclosed spaces.
No grounding needed for UTP. Installation guidelines:
Untwist pairs ≤13mm during termination.
Maintain ≥30cm separation from power cables.
Terminate with T568A/B standards.
Yes, but link performance depends on the lowest-rated component. For example, Cat 6 switches limit the link to 250MHz (10Gbps up to 55m).
Basic Test: Use a cable tester for continuity and wiring verification.
Certification: Validate insertion loss and ANEXT with Fluke DSX-8000 per TIA-568.2-D.
Cat 6A LSZH has a slightly larger diameter (~6.5mm) but remains flexible. Reserve 20% extra space in high-density cable managers.
White-Blue(Stripe)/Blue
