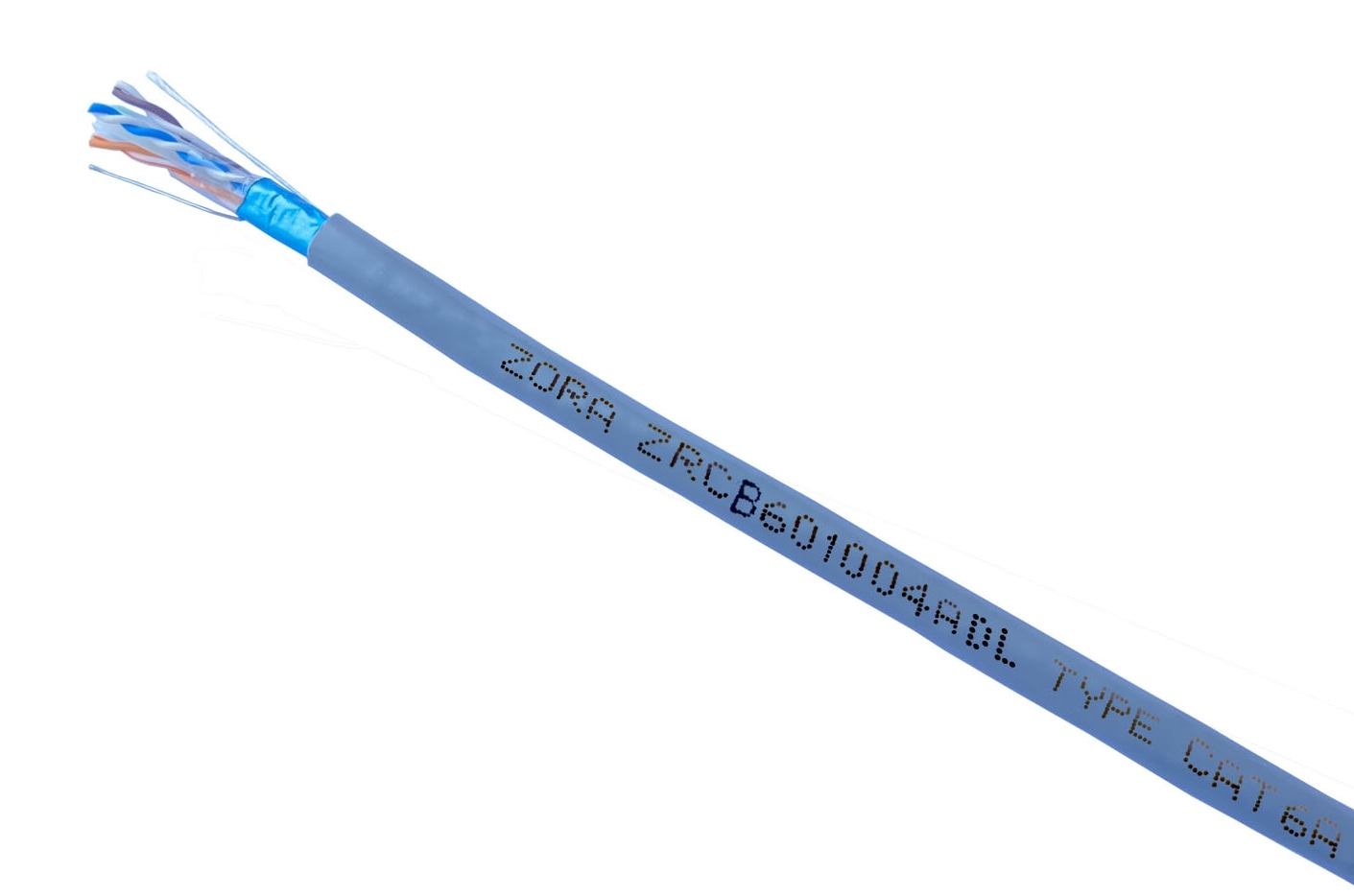

ZORA Cat 6A FTP 4P LSZH Cable

ZORA Cat 6A FTP 4P LSZH Cable for high-interference environments (industrial/data centers), with foil & braided shielding to reduce EMI, supports 10Gbps (100m), 500MHz.

Model:
ZRCB601004ADL
Brand:
ZORA

Availability:



Inquire

Product Description

ZORA Cat 6A FTP 4P LSZH Cable Description

ZORA Cat6A FTP 4P LSZH cables have significant performance margins, far exceeding your high-performance requirements for network cabling systems. All components in the system meet the requirements of ANDI/TIA 568.2-D Cat 6A standards, with a maximum usable bandwidth of over 500MHz. The system is backward compatible with ZORA Cat 6 systems, and a 25-year quality assurance eliminates your worries.

ZORA Cat 6A FTP 4P LSZH Cable Features

1、Structure: The cable adopts a unique internal cross-bone design, which is better at ensuring the outer diameter, and effectively improves the electrical performance of NEXT, FEXT, and so on.

2、Copper material: domestic high-quality oxygen-free copper;

3、Wire：Adopting international popular and advanced tightly wrapped wire;

4、Transmission bandwidth: 500MHz; DC resistance of single conductor: ≤9.5Ω/100m; DC resistance imbalance: ≤2.5%;

5、stranding distance: the cable has a precision stranding distance;

6、With the help of aluminum foil shielding layer and tinned copper wire, to achieve excellent shielding effect, with very high anti-interference ability and confidentiality performance;

7、Sheath: the outer sheath is PVC material or LSZH material, the inner sheath is flame retardant polyethylene;

8、Provide cable length marking to reduce waste.

Reference Standard

YD/T1019
ANSI/TIA 568.2-D
ISO/IEC 11801
IEC 61034-2

Ordering Information
Product Number	Product Name	outer sheath	Color	Length Qty	Qty / Pallet
ZRCB601004ADL	Cat6A FTP 4P LSZH cable	LSZH	Gray	305Mtr Reel	24or40
ZRCB601004B	Cat6A FTP 4P LSZH cable	LSZH	Blue	305Mtr Reel	24or40
ZRCB601004C	Cat6A FTP 4P LSZH cable	LSZH	Green	305Mtr Reel	24or40

Colors can be customized according to customer needs

Technical Specifications

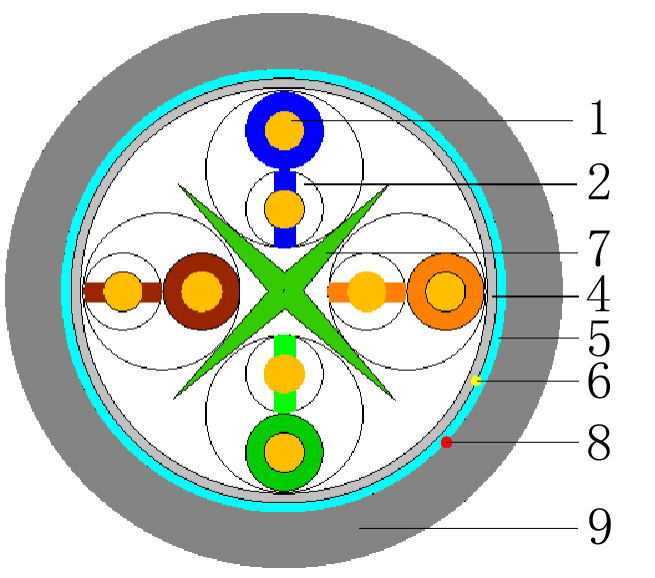

Construction
1.Conductor（mm）	Solid bare copper 23AWG
2.Insulation（mm）	HDPE 1.12±0.08
3.Color Code	White-Blue(Stripe)/Blue White-Orange(Stripe)/Orange White-Green(Stripe)/Green White-Brown(Stripe)/Brown
4.Wrapping（mm）	PET tape0.02
5.Screen（mm）	Al foil0.06
6.Drain wire（mm）	Tinned copper 0.4
7.Cross	Yes
8.Rip cord	Yes
9.Jacket（mm）	Material	LSZH
	Nom.thickness	0.5
	Color	gray
	Nom.diameter	7.5mm±0.5mm

Mechanical characteristics
Operating temperature	-20~75℃
Installation temperature	0~75℃
Tensile strength.Max	100N
Bending radius	8D
Flame resistant	IEC 61034-2
Length of Delivery	305m/box

Electrical characteristics(20℃)
Conductor resistance .Max	8.0Ω/100m
Conductor resistance unbalance .Max	In pair:2%\|Between pairs:4%
Insulation resistance(DC 500V/1 min) .Min	5000MΩ·km
Dielectric strength（C-C, .DC.1min）	1kV
Mutual capacitance .Max	5.6nF/100m

Performance Statistics
Frequency (MHz)	Attenuation (dB/100m)	NEXT (dB)	PSNEXT (dB)	ELFEXT (dB/100m)	PSELFEXT (dB/100m)	Delay (ns/100m)	RL (dB)
4	4.2	63.0	60.5	51.2	48.2	562	19.0
8	5.8	58.2	55.6	45.2	42.2	557	19.0
10	6.5	56.6	54.0	43.3	40.3	555	19.1
16	8.2	53.2	50.6	39.2	36.2	553	18.0
20	9.2	51.6	49.0	37.2	34.2	552	17.5
25	10.2	50.0	47.3	35.3	32.3	551	17.0
31.25	11.5	48.4	45.7	33.4	30.4	550	16.5
62.5	16.4	43.4	40.6	27.3	24.3	549	14.0
100	20.9	39.9	37.1	23.3	20.3	548	12.0
200	30.1	34.8	31.9	17.2	14.2	547	9.0
250	33.9	33.1	30.2	15.3	12.3	546	8.0
300	37.4	31.7	28.8	13.7	10.7	546	7.2
400	43.7	28.7	25.8	11.2	8.2	546	6.0
500	49.3	26.1	23.2	9.3	6.3	546	6.0

ZORA Cat 6A FTP 4P LSZH Cable FAQs

FAQs

Q1: Is ZORA Category 6A shielded twisted pair cable faster than ordinary network cable? How much faster?

A1: Faster and more stable!
Speed comparison: Ordinary Category 6 cable (Cat6) supports 10Gbps within 55 meters, while ZORA Category 6A shielded cable (Cat6a STP) supports 10Gbps within 100 meters, and the transmission distance is increased by 80%.
Anti-interference advantage: In scenes such as factories and hospitals, shielded cables can reduce over 90% of signal packet loss problems and ensure "zero data jamming".
Q2: Is it necessary to use ZORA shielded twisted pair cables for home decoration?

A2: Ordinary families do not need to use them, but the following situations are recommended:
Smart home density: such as whole-house PoE monitoring, 4K/120Hz transmission in the audio-visual room;
Strong interference environment: The residence is close to high-voltage towers, elevator shafts, etc.;
Future proof: Pre-wire for 10G network and 8K streaming media, and the life of shielded cables is up to 15 years.
Q3: Can ZORA shielded cables really prevent interference? Is it okay to be close to power lines?

A3: Professional-grade protection!
Double shielding design: The outer metal mesh protects against high-power equipment (such as air-conditioning motors), and the inner aluminum foil isolates crosstalk between adjacent cables;
Safe distance: Compared with unshielded cables, the spacing can be shortened by 50% when parallel to strong wires (recommended ≥10cm), saving wiring space.
Q4: Do ZORA Cat 6A shielded twisted cables have to be paired with special crystal plugs and switches?

A4: Supporting equipment is required, but the cost is controllable:
Crystal plug: A metal shielded crystal plug must be used (the unit price is 3-4 yuan more expensive);
Switch: Ordinary switches can be used, but shielded switches are recommended when grounding requirements are high (the cost is about 20% higher), which is a must for industrial scenarios.
Q5: Why are ZORA shielded cables harder than ZORA unshielded cables? Will it affect installation?

A5: The hardness comes from the shielding layer, but the design has been optimized:
Flexible sheath: Use low-smoke zero-halogen (LSZH) sheath, and the bending radius ≥4 times the wire diameter is sufficient;
Construction tips: Avoid right-angle bends when threading pipes, and large-angle bends can maintain performance.
Q6: How to identify high-quality Category 6A shielded cables?

A6: Look for 4 key indicators:
Certification mark: UL certification, ETL certification, ISO/IEC 11801 standard;
Shielding layer thickness: aluminum foil ≥0.05mm, braided mesh coverage ≥80%;
Wire gauge standard: 23AWG (wire diameter ≥0.57mm), copper core purity ≥99.9%;
Brand warranty: provide more than 20 years of performance warranty (other brands are usually ≤5 years).
Q7: How to verify whether the shielded cable is really effective?

A7: 3-step simple test:
Check the cross section: cut the cable and check the double-layer structure of aluminum foil + braided mesh;
Measure grounding: use a multimeter to detect the resistance of the shielding layer and the grounding terminal of the patch panel (should be <1Ω);
Running speed test: compared with unshielded cables in an interference environment (such as a workshop), the packet loss rate should drop by more than 95%.
