What is a Fiber Optic Splice?

A fiber optic splice (also known as fiber splicing) refers to the permanent or semi-permanent joining of two optical fibers to create an uninterrupted light transmission path. It is critical in fiber optic networks for extending cables, branching networks, or repairing damaged fibers while minimizing signal loss.

Background of Fiber Optic Splices

In fiber optic communication systems, a single fiber length is often insufficient for long-distance transmission. Therefore, multiple fiber segments must be joined through splices to form a complete link. The development of fiber optic splicing technology has been driven by the need to address connection challenges in these systems.

Working Principle

Fiber optic splices operate based on the principle of total internal reflection. By precisely aligning the fiber cores, light signals are transmitted from one fiber to another with minimal loss. Any misalignment or end-face defects can increase signal attenuation.

Key Performance Parameters

• Insertion Loss: The reduction in signal strength after connection, measured in dB. Lower values indicate better performance.

• Return Loss: The loss due to reflected light caused by connection imperfections, also measured in dB. Higher values indicate better performance.

Main Applications

Fiber optic splices are widely used in:

• Long-haul backbone transmission networks

• Distributed fiber optic networks

• FTTH (Fiber to the Home) access networks

• Fiber optic sensors and fiber laser systems

• Data centers and LAN equipment interconnection

Main Types of Fiber Optic Splices

1. Splices

Permanent or semi-permanent connections, typically not reusable.

• Mechanical Splice: Aligns and secures fiber ends mechanically. Quick to install but with slightly higher loss.

• Fusion Splice: Uses an electric arc to melt and fuse fiber ends together. Offers the lowest loss and highest stability—preferred for long-distance lines.

2. Connectors

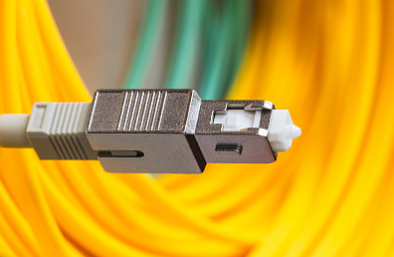

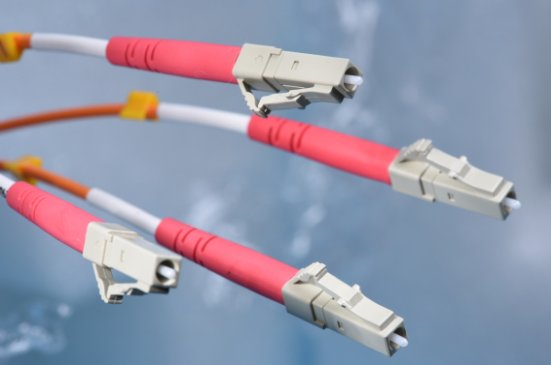

Reusable termination method suitable for scenarios requiring frequent connection/disconnection. Common types include SC, FC, and LC.

• Fast Connectors: Also known as field-installable or dry pre-polished connectors. Factory pre-polished, requiring no on-site polishing or epoxy. Ideal for FTTH emergency repairs and rapid deployment. FS offers a wide range of high-quality fast connectors supporting SC/LC/FC interfaces for maximum installation efficiency.

3. Couplers

Passive devices used for signal splitting or combining.

• T-Type Coupler: Uses GRIN lenses and beam splitters to divide one input into two outputs.

• Star Coupler: Splits one input into multiple outputs.

• Tree/Three-Port Coupler: Achieves simple splitting without complex optical components.

Differences Between Splices, Connectors, and Couplers
