What Types of Wiring Tools Are Used in The Comprehensive Wiring Process?

In the construction of structured cabling, the wiring tool (also known as punching tool, IDC tool, wiring knife, carding knife, Punch Down Tool) is one of the most crucial termination tools. It is used to precisely press the core wires of twisted pairs (such as Cat5e/Cat6/Cat6A) into the RJ45 module, patch panel, 110 patch panel, Keystone socket, etc. These IDC (Insulation Displacement Connector) terminals to achieve reliable electrical connection, and automatically trim the excess wire ends.

1. Classified by blade type/connection standard (the most common classification method)

This is the primary criterion for choosing the tool. Different modules must match the corresponding blades:

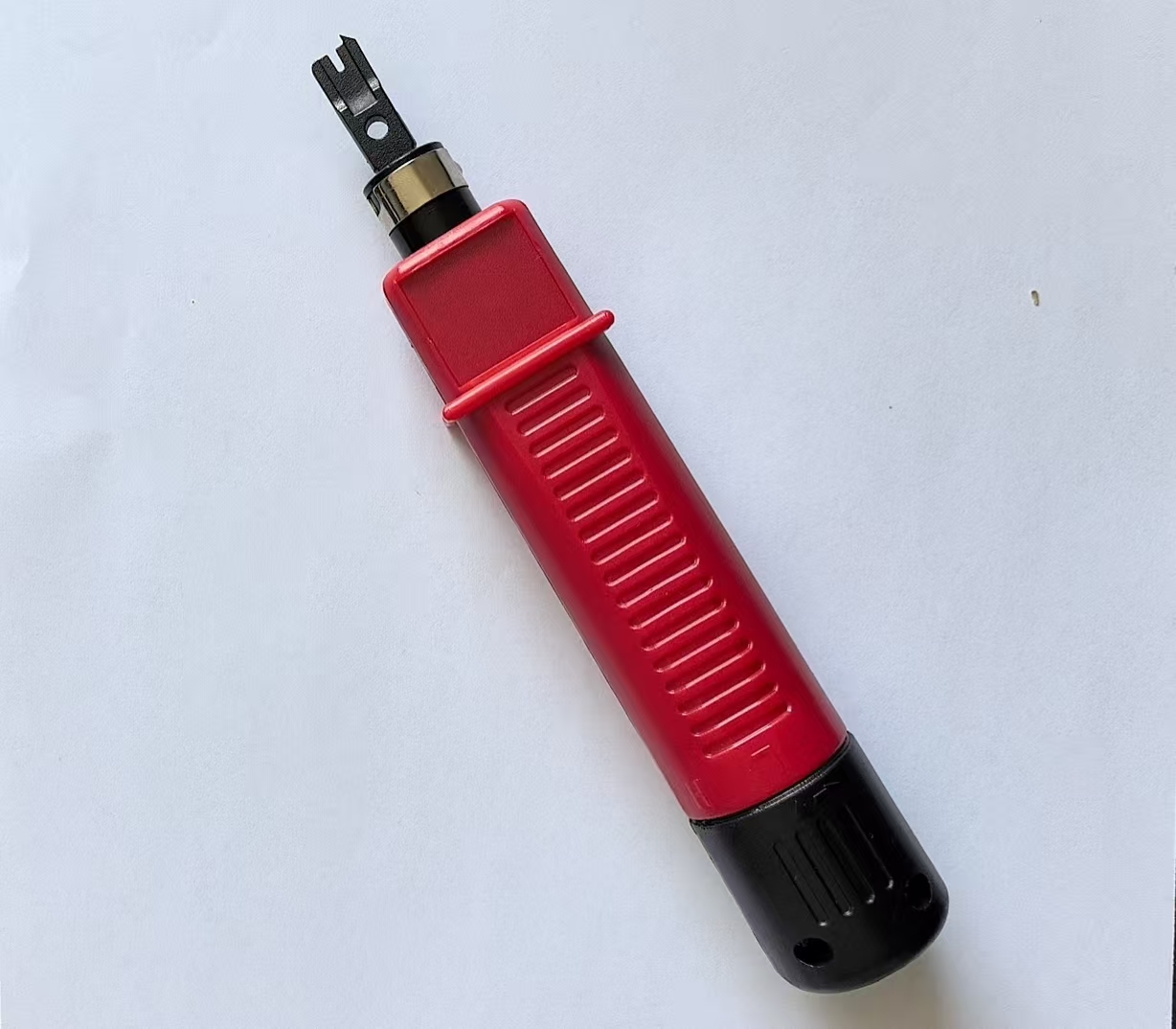

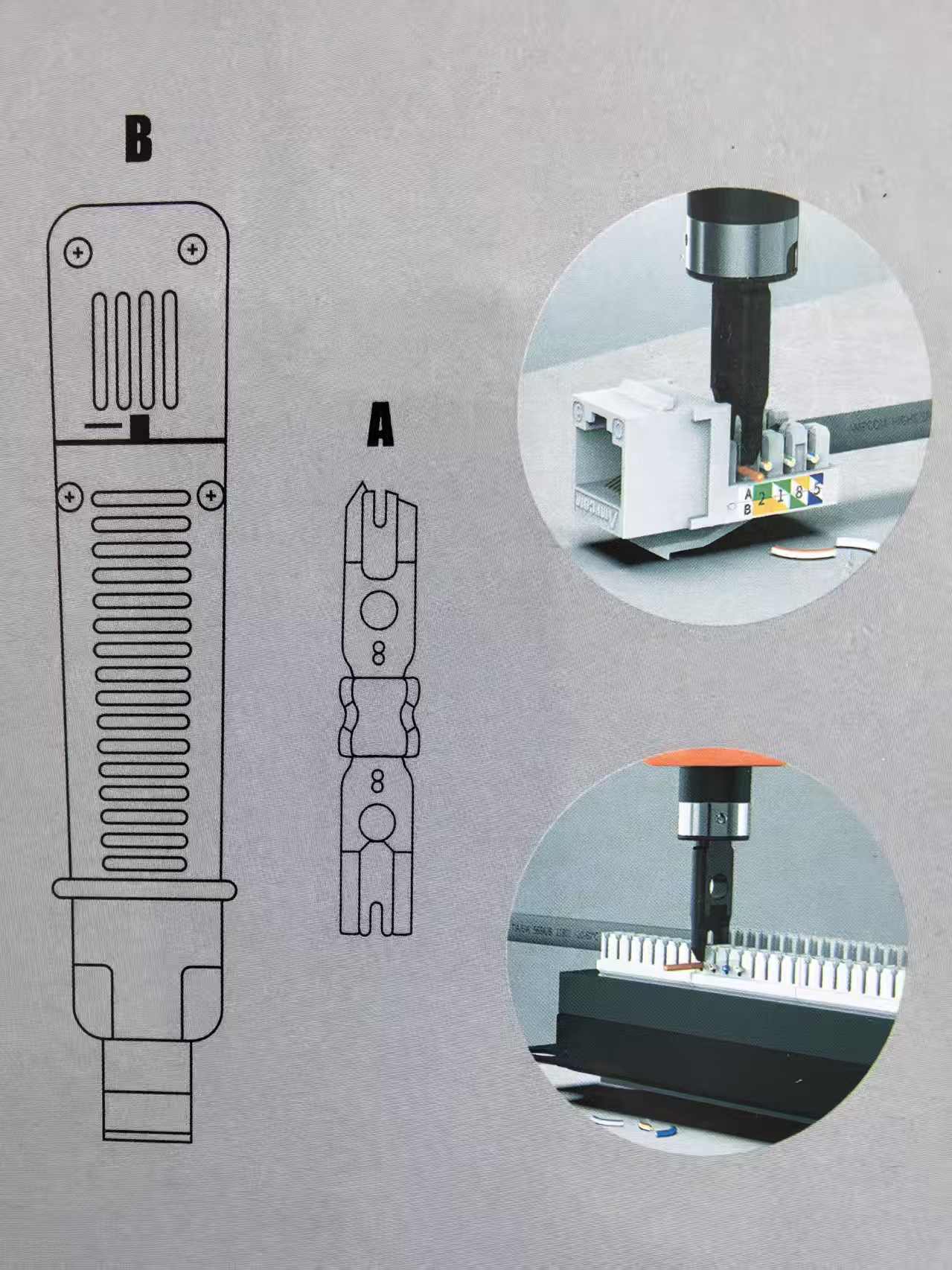

- 110 type blade (110 Punch Down Tool)

The most mainstream type, widely used in China and the United States. The 110 type blade is extensively applied in telephone systems and network cabling integration, providing precise crimping for products such as integrated network distribution frames, 110 distribution frames, RJ45 modules, and integrated network panels. The blade adopts single-point vertical crimping technology, with the blade edge width precisely matching the slot of the 110 module. It supports rapid crimping of single-core wires and is suitable for various types of cables such as Cat5e/Cat6/Cat6A. Its market share accounts for over 80%, making it a "standard tool" for network cabling construction.

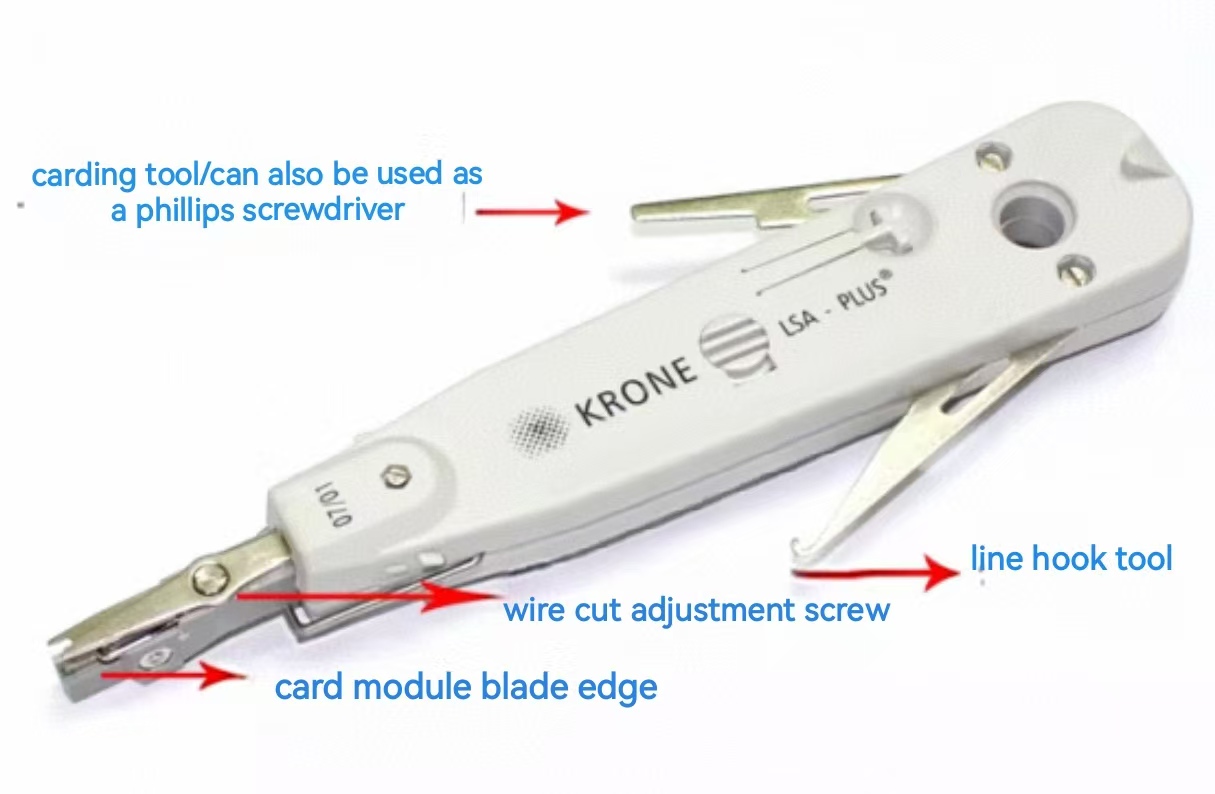

- Krone type blade (Krone Punch Down Tool / LSA-PLUS)

This type of blade is the mainstream in European communication systems. It is designed for the Krone LSA-PLUS module and is commonly used for crimping of Krone modules and 10-pair 110 modules. It features a 45° inclined cutting design, which reduces the bending stress of the cables and enhances the stability of high-frequency signal transmission.

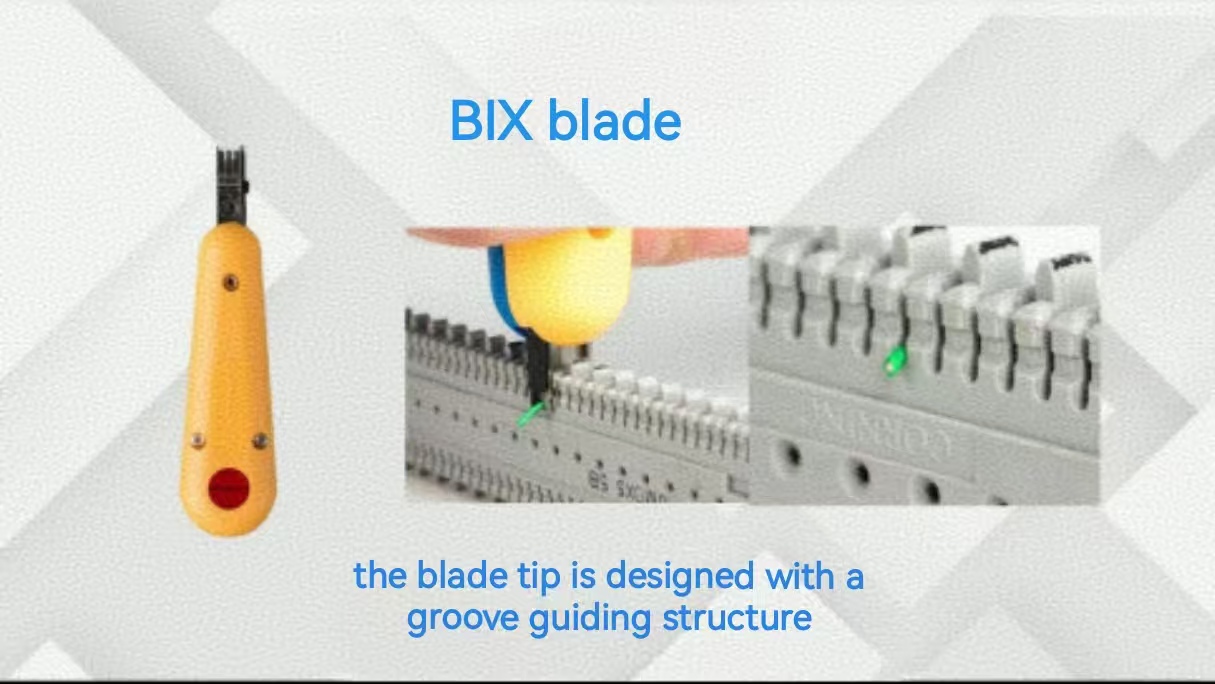

- BIX type blade

This blade type is compatible with the BIX cross-connect system and is mainly used in voice communication systems in North America. The blade's end features a groove guiding structure to ensure precise alignment of the twisted pair cables. It supports modular quick insertion and removal, making it suitable for office environments with frequent patching.

- Model 66 blade

Used specifically for the old telephone system. It is less used nowadays.

Many professional tools support replaceable/reversible blades (such as 110 and Krone dual-purpose models), which are very practical.

2. Classification by working principle/operation method

- Impact Type (Impact Punch Down Tool) → Highly recommended

It features an internal spring mechanism. When pressed, it generates impact force, ensuring that the core wire is fully positioned and the excess wire ends are cut off simultaneously. The force is uniform, the connection is reliable, and it reduces poor contact. Usually, there are high/low impact force adjustments (Hi/Lo), suitable for different wire diameters.

- Non-impact / Manual type

Low cost, lightweight, without spring impact. Suitable for small-scale, light-load construction, but the crimping is not very secure, and there is a high risk of loose wire ends or uncut wires. Not recommended for professional projects.

- Electric/Battery-powered

Used in high-intensity and large-scale construction projects (such as large data centers), it is highly efficient, has a comfortable feel, but is expensive and has high maintenance costs.

3. Special/Derived Types

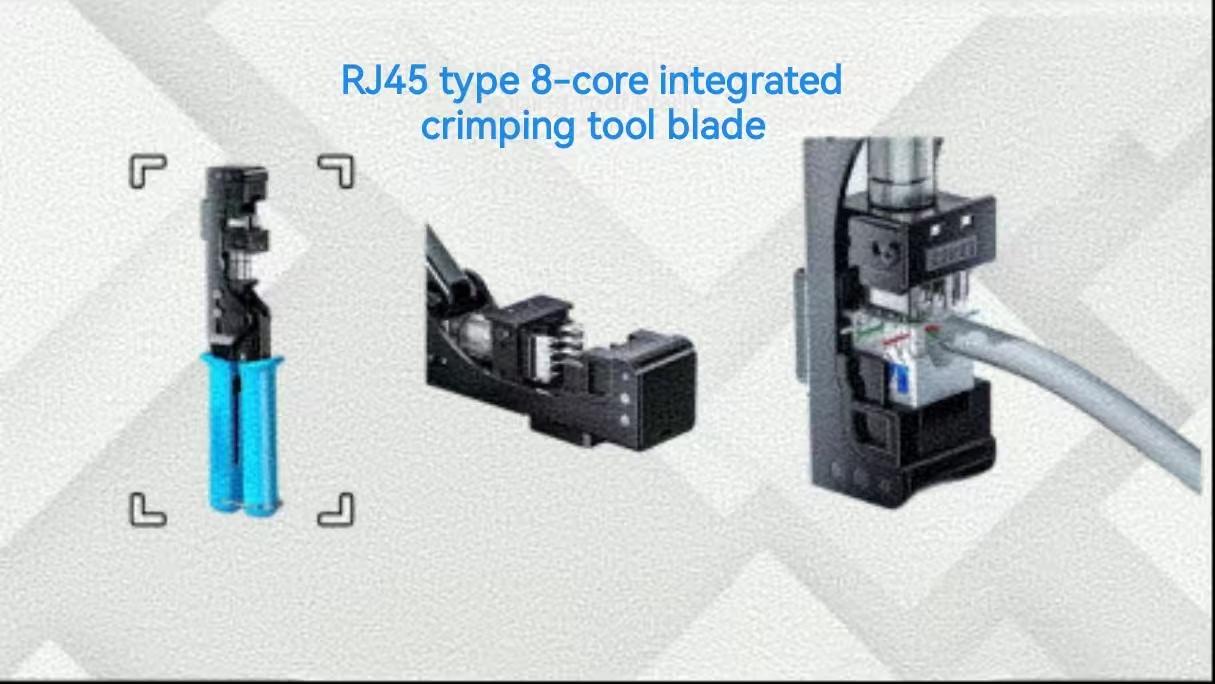

- RJ45 Type 8-core Integrated Pressing Blade: This blade type is an improved design based on the traditional 110-type blade. It has the function of pressing eight core wires at once and cutting off the excess wire ends, effectively improving the construction efficiency. However, during the process of inserting the module into the slot and aligning it, it requires a certain amount of time for operation. Additionally, since the pressure required for one-time pressing of eight core wires is relatively large, it is not easy to control the operation, so this blade is less applied in the market.

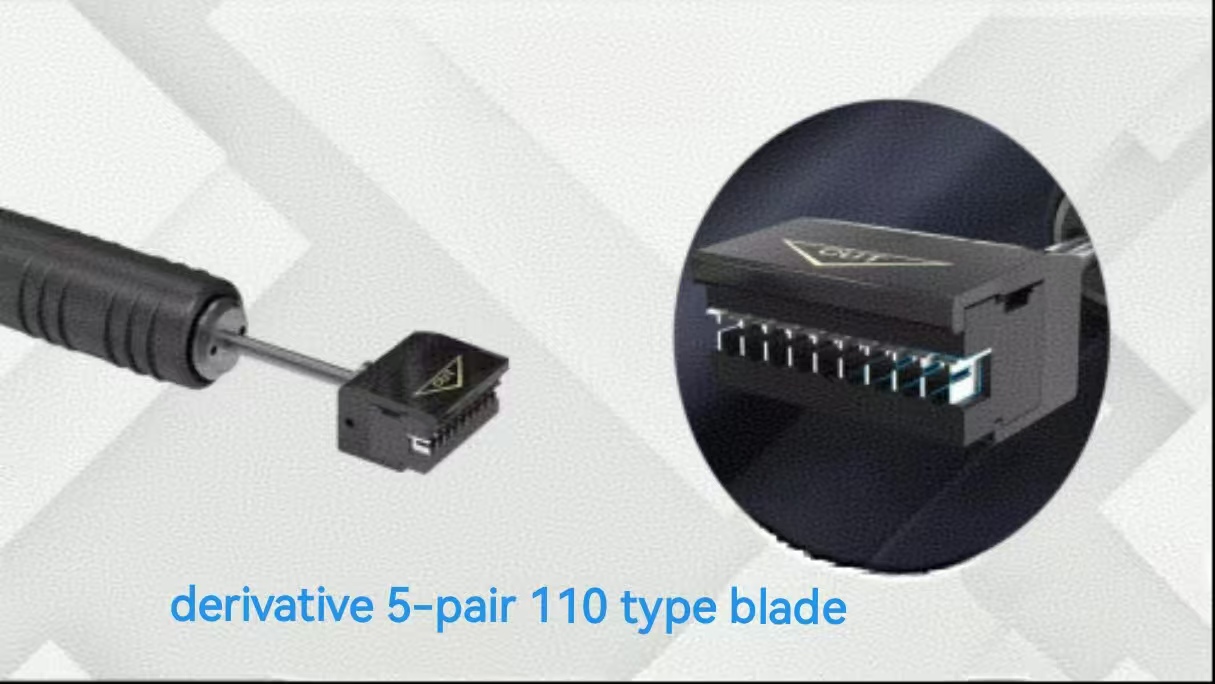

- Five-pair / Multiple-pair Wire Stripping Tool: Designed for large number of cables (such as 25-pair, 50-pair), it strips multiple pairs at once, enhancing batch production efficiency.

- Multi-functional integrated tool: Integrates wire stripping + stripping + cutting + hooking functions (such as adjustable wire-cutting mouth, screwdriver head).

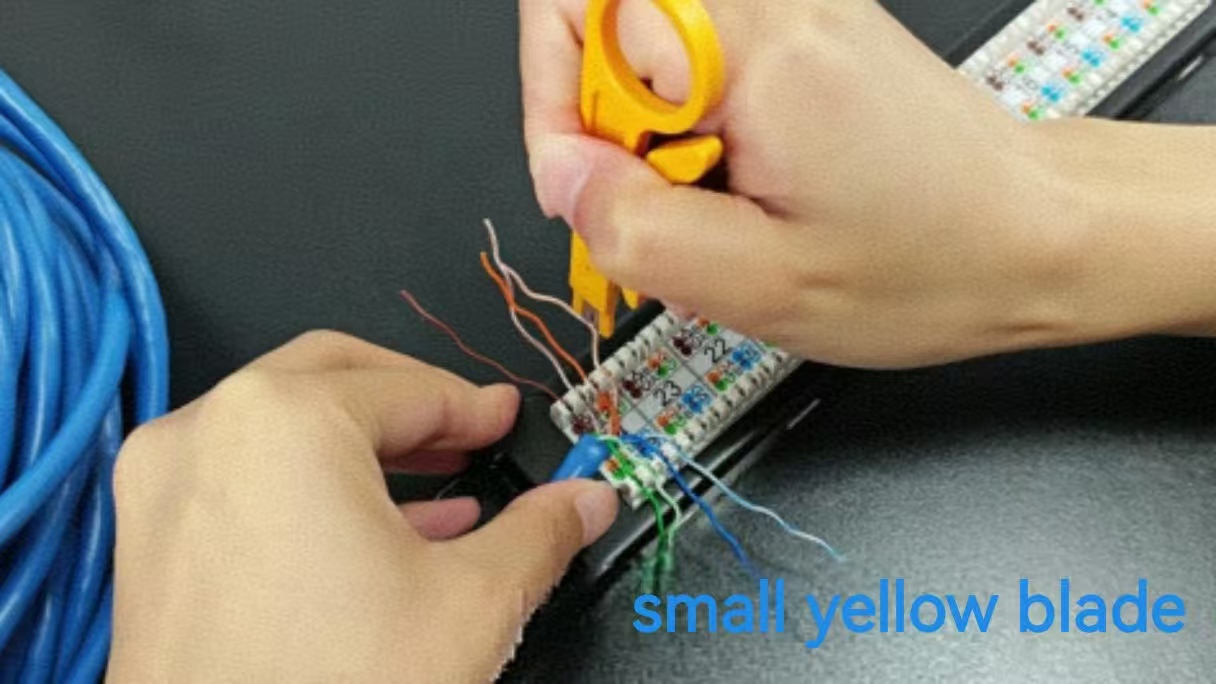

- Yellow Small Knife / Simple Cable Holder Knife: A basic version, suitable for DIY or temporary use, with poorer precision and durability.

Purchase and Usage Suggestions

- Preferred Choice: Select impact tools with adjustable impact force and replaceable blades (110 is the main type) such as brands like Fluke, Klein, Jonard, TRENDnet, and Pangu.

- Matching Modules: First, confirm whether your module/fiber optic distribution frame is 110 or Krone, then choose the blade.

- Auxiliary Inspection: After crimping, use a network tester to verify parameters such as NEXT and return loss.

- Important Notes: The blade should be sharp. When operating, exert force vertically and listen for a "click" to confirm the position; shielding cables require special tools or careful handling.

The quality of the cabling system is 70% dependent on the termination process. Choosing and using the right wiring tools can significantly reduce the failure rate and enhance network performance (especially for 10 Gigabit/PoE projects).

Summary

From the current mainstream 110 type and some of its derivative types, we can observe the trajectory of technological innovation and improvement. These improvements have enabled us to meet the wiring requirements in various scenarios. Each of them has its unique design concept and advantages, providing more options for network wiring. The existence of these cable-cutting tools not only enriches the technical means of network wiring but also promotes the continuous development and progress of the wiring industry.
