How to Plan Horizontal Cabling for Large Office Buildings

Network performance in large office buildings directly impacts employee productivity and business efficiency. Horizontal cabling serves as the "last mile" of a structured cabling system, extending from each floor's telecommunications room (IDF/Telecommunications Room) to individual workstations, meeting rooms, and common areas. Poor planning can lead to high retrofit costs, severe signal attenuation, and compromised Wi-Fi coverage or PoE device support (such as cameras and access points). This guide walks you through how to plan it scientifically to support 10Gbps+ speeds, future-proof for 10+ years, and comply with international standards.

1. What Is Horizontal Cabling? How Does It Differ from Backbone Cabling?

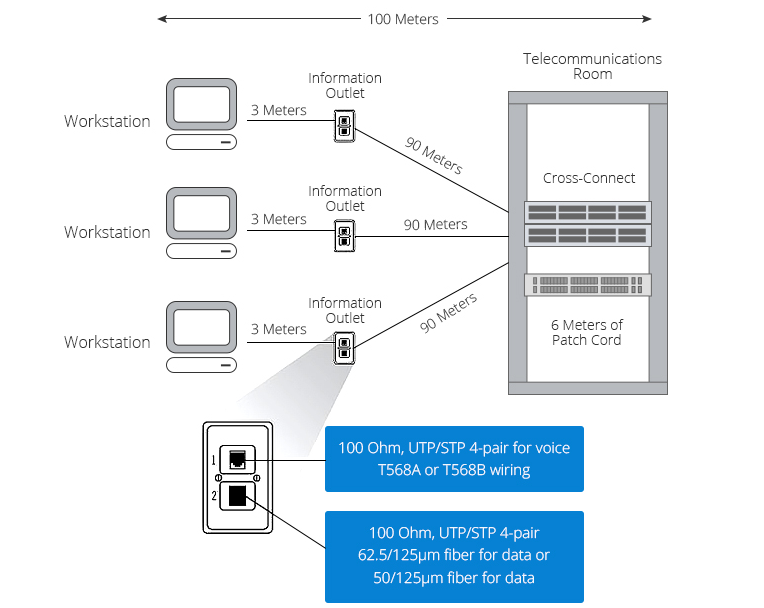

Horizontal cabling refers to the same-floor permanent links from the horizontal cross-connect (HC) in the telecommunications room to the telecommunications outlet (TO) in the work area. It uses a star topology (Star Topology) and does not include inter-floor or inter-building vertical backbone cabling (Backbone Cabling, which typically uses multimode fiber such as OM4/OM5).

Key Standard Limits (based on ANSI/TIA-568 series, current as of 2025–2026):

· Permanent link maximum length: 90 meters

· Total channel length (including patch cords at both ends): 100 meters

· Recommend 10–20% slack/reserve in each horizontal cable for bends and future adjustments.

2. Pre-Planning Needs Assessment (The Most Critical Step)

For large office buildings (>5,000 m² or multi-floor), conduct a thorough requirements survey first:

· User density: Plan 2–3 data ports per 100 m² in standard office areas (typical workstation: 2 ports for data + voice; high-density call centers/trading floors: 4–6 ports).

· Bandwidth requirements: Support 1G/10G Ethernet, Wi-Fi 6E/7 access points (1–2 Cat6A runs per AP), PoE++ (up to 90W) devices, and IoT sensors.

· Future-proofing: Reserve at least 20–30% spare ports and tray capacity.

· Special areas: 4–8 ports for conference rooms, dedicated runs for server rooms/print areas, isolated circuits for surveillance cameras.

Recommended per work area: 2× Cat6A copper cables (data) + optional multimode fiber for high-bandwidth needs, or MUTOA multi-user outlets for open-plan offices.

3. Site Survey and Telecommunications Room Design

· IDF location: Position centrally on each floor with a service radius ≤45 meters (to stay within the 90-meter limit). Large floors may require 2–3 IDFs.

· Room size requirements (per TIA-569): Minimum 3m × 3m (recommend 4m × 4m+ for >100 ports), dedicated power/UPS, air conditioning (temperature/humidity control), no water pipes, fire-rated doors, access control.

· Relationship to MDF: Connected via backbone fiber in a hierarchical star structure.

4. Cable Selection and Pathway Planning (Core Technical Decisions)

Recommended Cables (mainstream in 2026):

· Copper: Cat6A F/UTP (foiled/shielded) — supports full 10Gbps bandwidth, PoE, excellent interference resistance, and best cost-performance.

· Fiber: OM5 multimode for high-density or longer horizontal runs (rare cases).

· Rating: Plenum-rated (CMP) low-smoke zero-halogen cables required in air-handling spaces.

Best Pathway Practices:

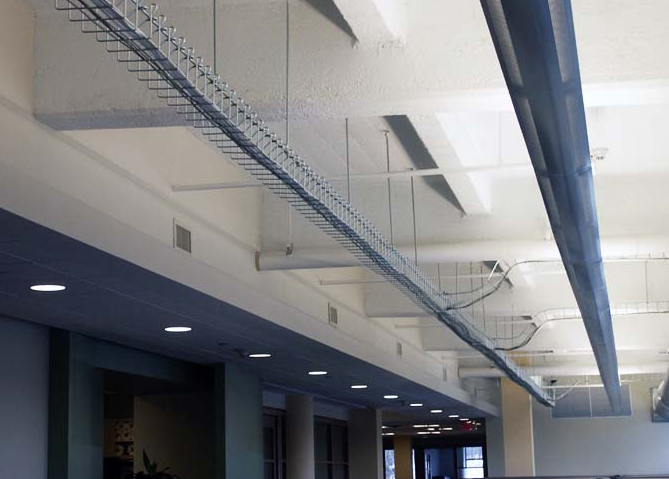

· Prefer overhead cable trays for easy access and future expansion.

· Maintain ≥200 mm separation from power cables; cross at 90° angles.

· Minimum bend radius: ≥4× cable outer diameter; tray fill rate ≤40%.

· Support every 1.2–1.5 meters with J-hooks or hangers; never rest cables on ceiling tiles.

· Fire-stop all penetrations through floor risers.

5. Work Area Outlets and Installation Details

· Install dual- or quad-port faceplates at each workstation (T568B pinout is the most common standard).

· For open offices, use MUTOA (multi-user telecommunications outlet assembly) — terminate horizontal cables at fixed points, then use short patch cords for flexible layout changes.

· Label both ends of every cable with machine-printed tags (example format: F3-IDF2-PP05-042).

6. Testing, Certification, and Documentation

Test 100% of installed links after completion:

· Use Fluke DSX-8000 or equivalent certification tester.

· Required tests: length, insertion loss, return loss, NEXT, PS-NEXT, ACR-F, PS-ACR-F, Alien Crosstalk (mandatory for Cat6A).

· Deliver permanent link certification reports and archive them for asset management.

7. Real-World Case Studies: Lessons from Large Office Projects

Here are anonymized and generalized examples drawn from documented industry projects (inspired by real implementations like multi-story headquarters upgrades, corporate campuses, and large-scale office renovations):

Case Study 1: Multi-Story Government Headquarters Upgrade (7-Story Office Building) A large federal agency relocated its headquarters into a seven-story office building. The project involved installing a full structured cabling system compliant with ANSI/TIA standards, including Cat6A horizontal cabling to over 1,000 workstations across 21 telecommunications rooms per floor.

· Key Challenge: Coordinating backbone fiber with extensive horizontal runs while integrating VoIP for 1,000+ endpoints.

· Solution: Centralized IDFs with overhead tray pathways, 20%+ spare capacity built in, and full certification testing.

· Outcome: Zero major downtime during cutover, award-winning craftsmanship, and a system that supported seamless expansion for additional floors without recabling. Early MEP coordination prevented rework, saving significant costs.

Case Study 2: 75,000 sq ft Industrial-Style Open Office Renovation A corporate client renovated a large open-plan office space with exposed ceilings. The team was brought in during design phase to engineer pathways.

· Key Challenge: No hidden ceilings meant all horizontal cabling (55,000+ feet of Cat6A) had to run on ladder trays along structural beams while maintaining aesthetics and code compliance.

· Solution: Early collaboration with architects and electrical teams locked in routes, achieving 35% less rework than typical industrial projects. Zone cabling elements were incorporated for flexibility.

· Outcome: On-schedule completion, high-density PoE support for Wi-Fi APs and devices, and easy future adds/changes in an adaptable workspace.

Case Study 3: Corporate Campus with Zone Cabling for Smart Building Features A multinational company built out a modern campus emphasizing IoT and flexibility.

· Key Challenge: Frequent layout changes and future sensor/IoT additions in open offices.

· Solution: Implemented zone cabling architecture — horizontal Cat6A runs terminated at consolidation points per zone instead of point-to-point to every desk. This allowed short patch cords for user moves.

· Outcome: Two years post-install, environmental sensors and additional PoE devices were added with minimal disruption and cost (vs. prohibitive rewiring in traditional setups). Network reliability improved dramatically, supporting Wi-Fi 6E/7 and smart building systems.

These cases highlight the ROI of early planning, standards compliance, and 20–30% redundancy: reduced faults, easier expansions, and avoidance of major retrofits.

8. Common Pitfalls in Large Projects and Cost Control

· Coordinate early with architects, MEP engineers, and fire safety teams to avoid ceiling cut-outs later.

· Phased implementation: Install main trays first, then pull horizontal cables.

· Budget breakdown: Cables ~40%, trays/conduits ~30%, telecom room upgrades ~15%, testing/documentation ~15%.

· ROI: Proper planning can reduce network downtime by up to 70% and eliminate major retrofits for 10+ years.

Conclusion

Horizontal cabling in large office buildings is far more than "just pulling some network cables"—it's the foundational infrastructure for digital transformation over the next 10–15 years. Strictly follow TIA-568 & TIA-569 standards, build in 20–30% redundancy, and adopt Cat6A + tray systems to create a fast, reliable, and scalable intelligent office network.
