Engineering Fiber Optic Cabling Pain Points, Common Problems, and Solutions

Views: 0     Author: Site Editor     Publish Time: 2025-11-12      Origin: Site

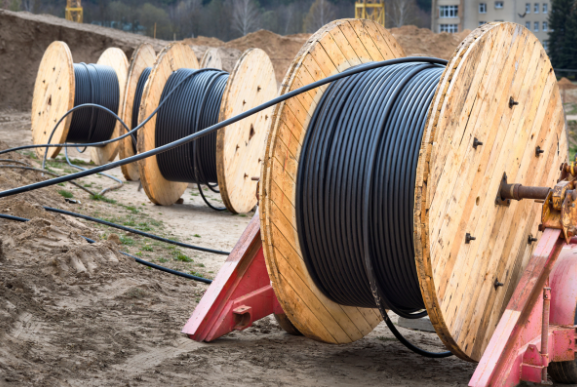

Engineering Fiber Optic Cabling


In modern engineering projects, fiber optic cabling, as the core infrastructure for high-speed data transmission, has become the standard for data centers, smart cities, cultural tourism night tour projects, and even national-level engineering. It supports ultra-high bandwidth and low-latency communication needs, driving digital transformation. However, fiber optic cabling projects are not without challenges, constrained by physical properties, construction environments, and maintenance difficulties, often facing numerous pain points. These issues not only increase construction costs and extend project timelines but can also lead to signal interruptions or network failures. This article delves into the common pain points and problems in engineering fiber optic cabling and provides targeted solutions to help engineers and project managers avoid pitfalls.



Core Pain Points in Engineering Fiber Optic Cabling


Fiber optic cabling differs from traditional copper cables, with its delicate and fragile nature making the construction process complex. Based on industry experience and actual cases, the common pain points in engineering cabling mainly focus on physical construction, signal transmission, and later maintenance across three levels. The following are several typical issues:


- Pipe Penetration and Cabling Difficulties: HDMI and other integrated active fiber optic cables have longer connector lengths, making it difficult to pass through small-diameter (smaller than standard) and multi-turn pipe environments. During construction, repeated pulling is required, which is inefficient and can even cause early damage.


- High Risk of Fiber Breaks and Physical Damage: Fiber optic cables are extremely prone to breaking during pulling, excavation, or accidental collisions. After project completion, external factors such as building construction or rodent bites can cause hidden fiber breaks, leading to complete signal loss.


- Directionality and Compatibility Issues: Integrated fiber optic cables have strict directionality; if reversed during cabling and not discovered in time, it will require demolition and re-cabling after the concealed engineering is completed. Mismatched connector types (e.g., SC, LC, ST) or end faces (e.g., PC, UPC, APC) can lead to signal reflection or interruption.


- Signal Attenuation and Loss: Excessive bending, connector contamination, or improper splicing can cause light signal attenuation. Dust, oil, or moisture entering the connectors further amplifies the loss, leading to reduced transmission speeds or intermittent dropouts.


- Environmental and Maintenance Challenges: Water ingress, extreme temperatures, or improper fixation can corrode the fiber or cause stress fractures. In later maintenance, the lack of regular inspections often turns small problems into major failures.


These pain points not only test the technical level of the construction team but also directly affect the project's ROI (Return on Investment). According to statistics, cabling failures account for over 30% of network interruptions, urgently requiring systematic solutions.

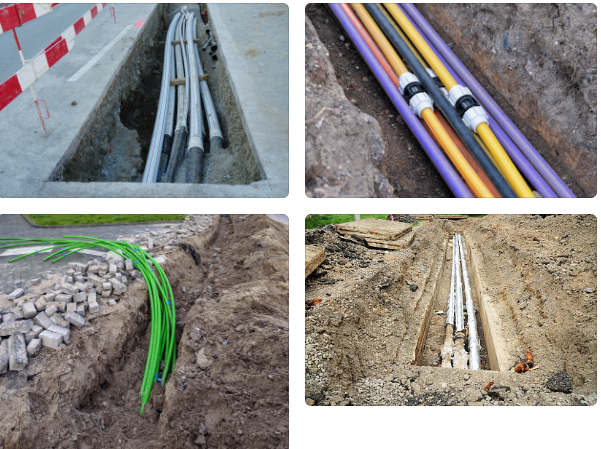

Engineering Fiber Optic Cabling2

Common Problems and Targeted Solutions


For the above pain points, the following table summarizes typical problems in engineering fiber optic cabling and their solutions. The solutions combine industry best practices and technological innovations to minimize risks and improve efficiency. Each solution can be flexibly adjusted based on project scale.


Common Problem

Pain Point Description

Solution

Expected Effect

Pipe Penetration Difficulty

Connectors too long, small pipe diameter and multiple turns lead to pulling failure.

Adopt fusion splicing: Pre-lay custom cables, cut fibers during construction and re-fuse with a fusion splicer; or introduce MPO quick-connect for modular fast connection.

Penetration success rate increased by 90%, splicing loss only 0.01dB, suitable for national projects and cultural tourism engineering.

Fiber Break Risk

Physical breaks caused by pulling or accidental collisions.

Use fusion splicing or mechanical splicing to repair break points; add steel tape or glass fiber insulation to enhance cable tensile strength; avoid sharp bends during construction, maintain bend radius >10 times cable diameter.

Reduce later maintenance frequency, extend cable life to over 10 years.

Directionality Issue

Cabling direction reversal or connector incompatibility.

Pre-test directionality, use optical pass-through technology to simplify EDID copying; standardize connector selection (e.g., unified LC interface), and simulate cabling paths in the design phase.

Avoid rework, 100% compatibility, support 32Gbps high-bandwidth transmission.

Signal Attenuation

Contamination, bending, or improper splicing leading to optical loss.

Regularly clean connectors (use specialized tools to remove dust); test attenuation per segment <0.3dB/km; optimize splicing technology to ensure end face alignment.

Improve signal stability, extend transmission distance to over 500m.

Environmental Damage

Water ingress, temperature changes, or improper fixation.

Install waterproof casings and seal entrances; select temperature-resistant materials (e.g., LSZH low-smoke zero-halogen cables); add supports for vertical cabling to avoid stress.

Strong resistance to environmental interference, reduce maintenance costs by 50%.


When implementing solutions, it is recommended to introduce professional tools such as fusion splicers, optical power meters, and OTDR (Optical Time Domain Reflectometer) to quantify test results. In economically developed areas, fusion splicing services can be directly adopted, while remote projects should budget for training local teams.



Implementation Recommendations and Best Practices


To maximize the effectiveness of solutions, engineering teams should start from the planning stage:

- Pre-design: Accurately measure distances to avoid overly long cabling; simulate environments, select single-mode/multi-mode fibers (single-mode for long distances >1km, multi-mode for high-speed short distances).

- Construction Standards: Segment testing, verify optical transmission upon completion of each section; minimize vertical rise slopes and provide full support.

- Later Operations and Maintenance: Establish a regular inspection mechanism, clean connectors quarterly; deploy OLP (Optical Line Protection) equipment for automatic fiber break switching.


These practices have been verified in numerous projects, such as Huaguang Yunneng's fusion splicing solution widely used in cultural tourism night tour engineering, significantly reducing failure rates.



Conclusion


Although engineering fiber optic cabling has pain points, through scientific solutions and technological innovations, these challenges can be completely managed. Professional construction, standardized management, and continuous optimization are key. In the future, with the explosion of 5G and AI applications, fiber optic cabling will become more intelligent, and engineers need to keep up with trends and enhance skills.
