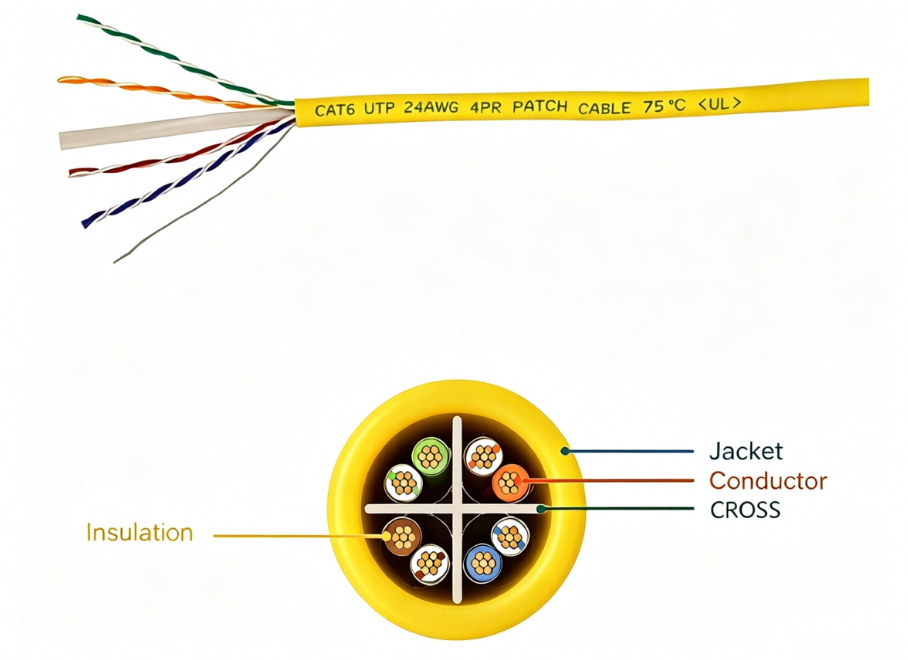

The Profound Knowledge in a Single Network Cable: In-depth Interpretation of CAT6 UTP 24AWG PVC Stranded Cable

Today, with the increasing popularity of high-speed networks, the network cable, this seemingly insignificant "minor role", is often the key factor determining the quality of the network experience. Have you ever encountered the embarrassing situation where you have a gigabit broadband, but the download speed just won't increase? The problem is very likely to lie in that unremarkable network cable in your home.

Today, let's delve into a very classic and widely used network Cable product - CAT6 UTP 24AWG PVC Stranded Cable. If we break down this long string of English words, there are quite a few tricks behind each letter and number.

I. CAT6: Category 6 standards, the cornerstone of Gigabit networks

CAT6 refers to Category 6 network cables and is one of the most mainstream network cable standards in home and enterprise wiring at present. Compared with CAT5e, the transmission bandwidth of CAT6 has been increased from 100MHz to 250MHz. This means it has stricter crosstalk suppression and signal attenuation control capabilities, and can stably support the transmission of 1000Base-T (Gigabit Ethernet). Some high-quality CAT6 cables can even support up to 10GBase-T over short distances.

In simple terms, if you want your gigabit broadband at home to be fully operational, choosing CAT6 is the safest starting standard.

Ii. UTP: Unshielded, a cost-effective choice

UTP stands for Unshielded Twisted Pair (unshielded Twisted Pair). It has no metal shielding layer inside and relies on the twisted-pair structure between the wire pairs to counteract its own signal interference and some external interference.

The advantages of UTP lie in its low cost, good flexibility and easy installation, making it the first choice for the vast majority of indoor network cabling. If your usage scenario is not in a strong electromagnetic interference environment (such as factories, substations, etc.), UTP is fully sufficient and its cost performance is much higher than that of shielded cables (STP/FTP).

Iii. 24AWG: The thickness of the wire determines the transmission quality

24AWG is the specification for the thickness of conductors under the American Wire Gauge standard. The smaller the value of AWG, the thicker the wire diameter and the better the electrical conductivity.

When converted to metric systems, the copper core diameter of 24AWG is approximately 0.511mm. This is the standard wire diameter for CAT5e/ CAT5E network cables. It also fully meets the standard requirements for CAT6 cables. A thicker wire diameter means lower DC resistance of the conductor (approximately 93.8Ω/km for 24AWG) and less signal attenuation, which is more beneficial for long-distance transmission and PoE power supply.

It is worth mentioning that for the same 24AWG network cable, if it is made of oxygen-free copper (OFC), its conductivity is far superior to that of inferior materials such as copper-clad aluminum (CCA) or copper-clad steel. Be sure to pay attention to this point when making a purchase.

IV. Stranded: Twisted conductors, flexible and durable

Stranded (stranded wire) is a concept opposite to Solid (solid wire). Solid wire is made up of a single copper core, while stranded wire is composed of multiple strands of fine copper wire twisted together (commonly 7 strands, such as 7×0.20mm).

Both have their own merits:

Characteristics	Solid line	Stranded wire
Flexibility	Hard and not easy to bend	Soft and resistant to bending
Applicable scenarios	Fixed wiring within the wall	Jumpers, frequent plugging and unplugging, and moving devices
Signal attenuation	Slightly better	Slightly inferior to the solid line (but with a very small gap)

The greatest advantage of stranded wire lies in its flexibility and fatigue resistance. It is very suitable for making finished Patch cords, which are used in scenarios such as connecting devices to wall sockets, switches to patch panels, etc., where frequent plugging and unplugging and bending are required. It is also often used in situations where a certain degree of mobility is required.

V. PVC: Outer Sheath, an Economical and Practical "Protective Clothing"

PVC (polyvinyl chloride) is the most common material for the outer sheath of network cables. It is widely adopted because it has multiple advantages:

• Low cost: The mature technology and abundant supply of raw materials make the PVC sheath affordable.

• Good mechanical properties: It has high tensile strength, wear resistance and impact resistance.

• Strong chemical stability: It can resist the corrosion of most acids, alkalis and organic solvents.

• It has certain flame retardancy: It has a certain flame retardant effect by itself.

Of course, PVC also has its drawbacks: it tends to become hard and brittle at low temperatures. When burning, it will release thick smoke and toxic gases (such as hydrogen chloride). Therefore, in densely populated enclosed places (such as subways, hospitals, and data centers), low smoke zero halogen (LSZH) materials are usually given priority. However, for the vast majority of families and ordinary office environments, PVC sheaths, with their excellent cost performance, remain the most economical and practical choice.

Vi. Application Scenarios and Purchase Suggestions

Taking all the above features into account, the CAT6 UTP 24AWG PVC Stranded Cable is most suitable for the following scenarios

• Finished Patch Cord: Used for connecting devices such as computers, routers, switches, printers, etc. The flexibility of the stranded structure makes both plugging and unplugging as well as wire management much easier.

• This cable is suitable for indoor environments that require flexible wiring: Whether it's a home study, an office workstation, or high-density cabinets in a data center, it can handle them all with ease.

•  Support for PoE power supply: CAT6 standard combined with 24AWG wire diameter can well support PoE/PoE+/ POE ++ Ethernet power supply.

 There are several points to note when making a purchase:

• Identify the Copper core material: Prefer Pure Bare Copper and avoid inferior materials such as copper-clad aluminum (CCA).

• Pay attention to the fire resistance rating: CM grade is sufficient for home use or ordinary offices. It is recommended to choose CMR grade for vertical wiring in multi-story buildings.

• Check the certification marks: Genuine products should be printed with certification marks such as UL and ETL, and comply with standards such as ANSI/TIA-568.2-D or ISO/IEC 11801.

Written at the end

The seemingly complex model "CAT6 UTP 24AWG PVC Stranded Cable" is actually not difficult to understand when disassembled. It represents a Category 6 standard, unshielded, 24AWG diameter, twisted conductor, and PVC outer sheath network cable - a high-quality product that combines performance and cost-effectiveness, specifically designed for patch cords and flexible cabling scenarios.

The next time you are worried about the network speed, you might as well first look down at the network cable that connects the device. Sometimes, the bottleneck of the network does not lie in the router or broadband, but precisely in this unremarkable cable. Choosing the right network cable may make a difference to your Internet experience.
