Modular Data Center vs Traditional Computer Room: Differences in Cabling Layout Thinking

Introduction

Data center cabling is not merely a job of pulling cables and terminating connectors. It is the physical blueprint that defines scalability, airflow, maintainability, fault recovery and upgrade capacity. Many infrastructure planners still apply traditional raised-floor cabling logic directly to modular data center pods, only to hit bottlenecks: cable congestion, blocked cold aisles, long on-site construction cycles, and messy “spaghetti cabling” once racks scale up.

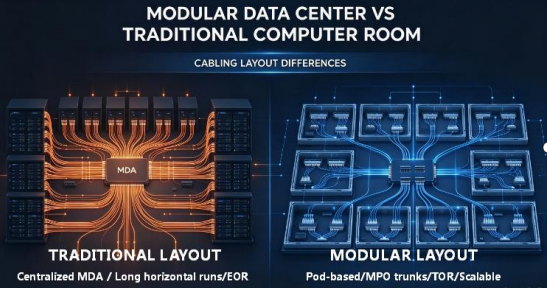

Traditional computer rooms and modular data centers are built around opposite core assumptions. A traditional room is building-first, cabling-follows. A modular pod is cabling, power and cooling co-designed before the module leaves the factory. This fundamental mindset gap shapes every decision: pathway routing, switching topology, cable media selection, testing workflow and documentation standards. This article unpacks those layout differences, compares typical architectures, and summarizes practical design rules for high-speed networks up to 400G and beyond.

1. Core Design Philosophy: Adaptive Growth vs Fixed-Room Planning

Traditional Computer Room

The traditional on-site computer room is stick-built around a static building envelope. The room size, raised floor space, ceiling height and cable trenches are finalized during civil construction. Cabling is treated as a secondary fit-out scope after walls, floors and air conditioning are completed.

Layout logic:

· The facility is planned for a target final capacity from day one.

· Cabling pathways (under-floor ducts, overhead cable trays) are sized based on the maximum predicted rack count years ahead.

· Horizontal cabling runs from a centralized Main Distribution Area (MDA) out to each rack row, usually End-of-Row (EoR) aggregation.

· Moves, adds and changes (MACs) happen reactively. When new servers arrive, installers run extra cables wherever space is available.

The weakness here is rigidity. If the actual IT load grows faster or slower than forecast, the cabling system is either over-provisioned and wasted, or undersized and quickly congested. Under raised floors, loose cables block cold airflow, create uneven cooling, and increase hotspots risk.

Modular Data Center

Modular data centers (micro-module pods, containerized units, prefabricated rows) follow a pod-first, standardized unit logic. Each self-contained pod is an independent compute block with its own cooling, power distribution and structured cabling zone. The whole data center grows by adding identical pods, not by rewiring a large shared room.

Layout logic:

· Cabling is a fixed part of the pod bill-of-material, engineered in the factory.

· Every pod has its own internal cabling boundary: intra-pod horizontal runs and inter-pod backbone trunks are separated clearly.

· Top-of-Rack (ToR) switching and pre-terminated trunk fiber (MPO/MTP) become the default, minimizing long messy horizontal runs inside the pod.

· Expansion only requires plugging new pre-tested trunk links between the new pod and the central MDA, without reworking existing live cabling.

For modular designers, the question is no longer “how many cables fit into this room”. It becomes “how many standardized trunk ports are reserved per pod for future bandwidth upgrades”.

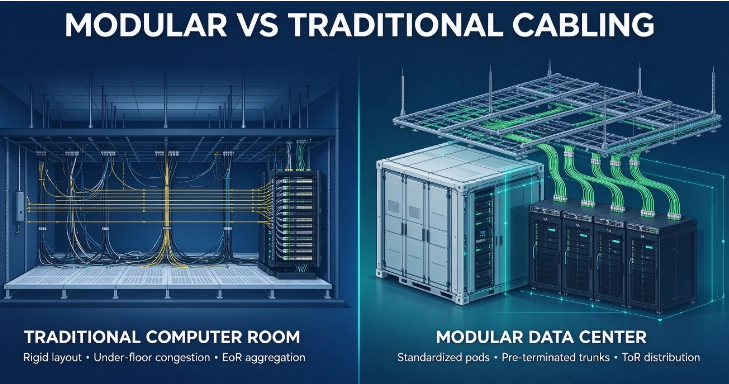

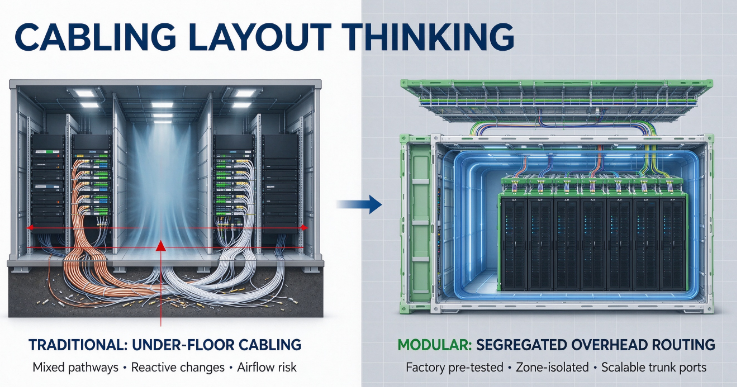

2. Routing & Containment: Under-Floor Chaos vs Segregated Overhead Zones

Traditional Room Cabling Pathways

Raised under-floor cabling is the classic default for legacy computer rooms. Power cables, copper patch cords and fiber bundles all share the plenum space below the floor.

Common layout traits:

· Mixed service routing: power, data, grounding and sometimes fire alarm cables run together under tiles.

· Horizontal cables fan out radially from one or a few central patch bays.

· Cable trays or J-hooks overhead are often added later as retrofits, not coordinated with airflow.

· Access means lifting floor tiles repeatedly, which disturbs cold air pressure, risks cable crushing, and complicates maintenance records.

Over time, the under-floor zone fills with unplanned patch runs. Cable bundles block cold air supply, raise PUE, and make it nearly impossible to trace circuits without shutting down nearby racks.

Modular Pod Containment Strategy

Nearly all modern modular data centers adopt overhead segregated routing, with strict physical separation rules baked into the pod frame design.

Key layout features:

· Dedicated overhead ladder racks: separate trays for A/B redundant fiber backbones, copper horizontal links, and power cables.

· Cable pathways are pre-sized in BIM models, usually with 30–40% spare capacity reserved for future trunk upgrades, rather than filling to maximum immediately.

· Cold aisle containment is integrated with cabling routes. Cable managers, trunk exit points and patch zones are placed outside server intake air paths to avoid blocking airflow.

· Within the pod, short vertical cable managers handle only local ToR patch cords. Long cross-row home-run cabling is eliminated wherever possible.

Because the pod frame, containment and cable exit points are fabricated together, clashes between cable routes, cooling ducts and busbars are resolved in digital design before manufacture. On site, technicians only connect pre-marked trunk ends, not route hundreds of individual patch cables.

3. Network Topology: End-of-Row Centralization vs Distributed Top-of-Rack

This is one of the most visible cabling layout divides.

Traditional: End-of-Row (EoR) Dominance

Traditional rooms rely heavily on EoR architecture. Aggregation switches sit in cabinets at the end of each rack row. Every server in that row runs an individual copper or fiber horizontal cable all the way to the EoR patch panel.

Cabling footprint impacts:

· Large volume of long horizontal cables running the full length of each aisle.

· Patch panel bays at row ends become dense “cable junction hotspots”.

· The MDA or core switch room becomes the single massive cross-connect point for the whole facility.

· Works well for stable, low-change enterprise workloads, but scales poorly for dense AI, cloud and high-frequency MAC environments.

Modular: ToR + Pre-Terminated Trunk Fiber

Modular layouts naturally favour Top-of-Rack switching. A ToR switch lives at the top of its server rack. Servers connect to the local ToR via very short DAC, AOC or short patch cords. Each ToR then uplinks via a small set of high-density MPO trunk fibers out of the pod to aggregation or spine switches.

Cabling benefits:

· Massive reduction in the total length and count of horizontal patch cables inside the pod.

· High-density fiber trunks replace hundreds of individual LC duplex runs; one 24-fiber MPO trunk carries far more bandwidth in a smaller bundle.

· Fault domain containment: a patching mistake or cable issue in one pod does not cascade across the whole computer room.

· When bandwidth upgrades from 100G to 400G or 800G, the physical trunk pathway stays the same. Only cassettes, transceivers and breakout modules are swapped.

Some hybrid modular designs still use EoR inside large pods, but the EoR cross-connect zone is itself pre-engineered and factory-tested, not built loose on site.

4. Cable Media & Assembly: Field Termination vs Factory Pre-Termination

The difference in layout thinking also changes which cable types are selected.

Traditional room workflow is field-first. Installers cut, strip, splice, polish and terminate LC or RJ45 connectors on-site after pathways are ready.

· Copper Cat6A / Cat6 is widely used for horizontal runs.

· Fiber splicing and connector polishing happen in the computer room.

· Testing is completed after installation, often with inconsistent loss records between contractors.

· Documentation is written after the cables are pulled, which easily drifts from the as-built reality.

Modular cabling leans hard on pre-engineered, factory-terminated assemblies.

· MPO/MTP trunk cables, fanout harnesses and fiber cassettes are terminated, cleaned, tested for insertion loss and labelled in a controlled factory environment.

· Every trunk has fixed, pre-measured lengths matched to the pod routing model. No on-site cutting or splicing inside the module.

· Fiber (OM4, OS2) becomes the primary media for inter-rack and inter-pod uplinks, while copper/DAC is limited to ultra-short intra-rack server-to-ToR links.

· All test reports, polarity records and label IDs are delivered together with the pod before shipment.

This shift changes layout planning: designers no longer estimate “how many fiber cores we might splice”. They design around fixed trunk port counts and cassette densities.

5. Maintenance, MAC and Documentation Logic

Traditional Room Maintenance Model

Maintenance is corrective and retrospective. Technicians trace cables physically, cross-reference paper drawings, lift floor tiles, and re-patch on demand. Documentation is a snapshot, not a live part of the cabling layout. When multiple contractors work on the same room over years, labeling conventions diverge, and cable tracing becomes slow and error-prone.

Modular Pod Maintenance Model

Modular cabling is designed for planned MACs from day one.

· Each pod has its own unique cable naming zone following TIA-606B asset labeling rules.

· Trunk paths are fixed and mapped in the BIM and DCIM system. Adding capacity means patching a new trunk port, not running new home-run cables.

· Fault isolation is zone-based: troubleshoot within the pod first, then check inter-pod backbone trunks.

· During expansion, live pods remain untouched. Only the new pod’s trunk interface connects to the existing spine layer.

This is a critical advantage for colocation, cloud and AI clusters where uptime requirements forbid large-scale recabling in live zones.

6. Side-by-Side Comparison Table

7. Common Pitfalls When Mixing Two Design Logics

Many failed modular deployments come from importing traditional cabling habits into pods:

1. Filling overhead trays to full capacity with no spare trunk ports, removing the core scalability benefit.

2. Treating the pod like a small traditional room and running dozens of loose LC patch cords between rows inside the module.

3. Mixing power and data cables in shared small containment, ignoring EMI separation rules in compact pod frames.

4. Skipping factory pre-testing and doing mass field splicing inside modular units, eroding delivery speed and quality consistency.

5. Using static MDA-centric drawings without separating intra-pod and inter-pod cabling domains in DCIM.

The right practice is to define a clear cabling boundary: inside the pod = standardized ToR trunk layout; between pods = redundant backbone fiber to the central fabric.

Conclusion

The cabling layout difference is deeper than tray routing or ToR versus EoR. It reflects two different views of what a data center is. The traditional computer room is a fixed space filled with IT gear. The modular data center is a library of repeatable compute blocks that interconnect via a well-defined physical fabric.

For 100G, 400G and emerging 800G workloads, the modular cabling model gains further advantage: high-density MPO trunking reduces congestion, factory testing lowers optical loss variance, and zone-based isolation protects live services during growth. That does not mean traditional structured cabling is obsolete. Stable, low-density enterprise server rooms still fit the EoR, raised-floor model well.

The best infrastructure designers do not simply pick one topology. They first decide the growth model: will this facility expand by adding racks inside a static room, or by adding self-contained pods? Once that decision is made, the cabling layout, routing strategy, media selection and testing workflow naturally follow.

If you are evaluating a hybrid deployment, the practical sweet spot is often: traditional MDA and core backbone, paired with modular pod zones using pre-terminated ToR trunk cabling. This balances investment protection for existing facilities while unlocking the speed and scalability of modular architecture.
