How Do Temperature and Humidity Affect Optical Fiber Performance?

In optical communication systems, optical fiber is the core carrier for signal transmission, and its performance stability directly dictates communication quality—whether it’s daily internet use, enterprise data transfer, or cross-regional long-haul communication, the "health" of optical fiber is non-negotiable. Temperature and humidity, our most common environmental factors, may seem harmless, but they quietly impact optical fiber’s transmission efficiency, service life, and even cause communication outages through physical and chemical effects. Today, we’ll break down these two "invisible influencers" to explain how they affect optical fiber and how to mitigate their impact.

I. Temperature: Invisible Stress from Thermal Expansion and Contraction

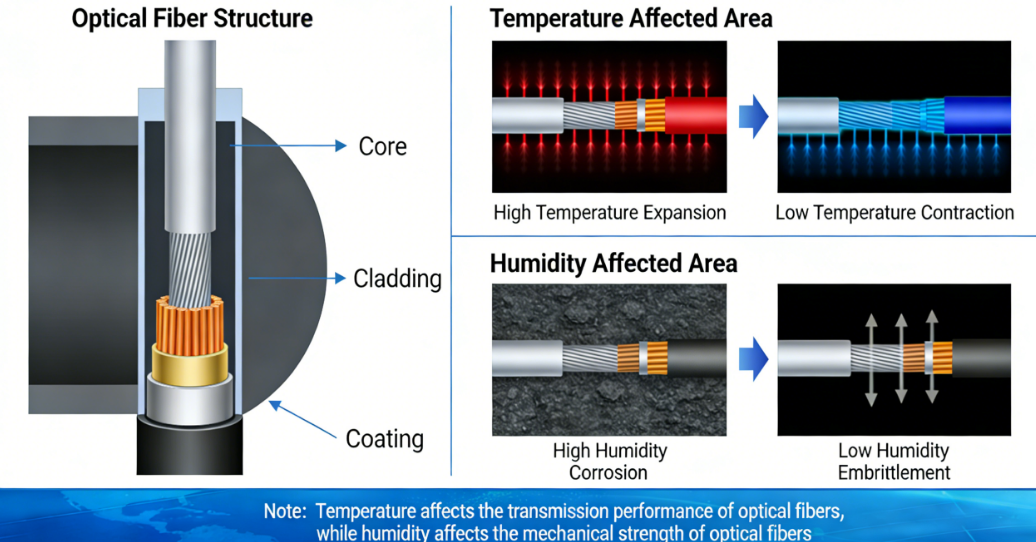

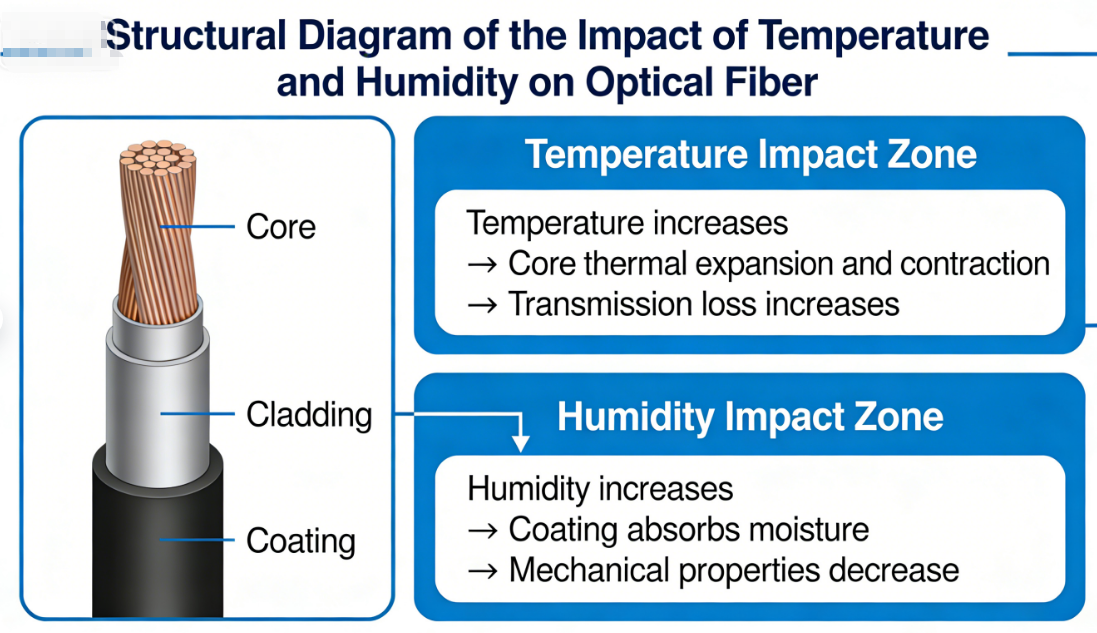

An optical fiber’s core structure includes a core, cladding, coating, and jacket. The core (mostly quartz glass) transmits optical signals, while the outer coating and jacket provide protection. Temperature changes essentially disrupt the stability of the fiber’s layers through thermal expansion and contraction, which in turn affects signal transmission quality. There are two key scenarios to consider: high and low temperatures.

1. High-Temperature Environments: Accelerated Aging & Increased Signal Attenuation

When ambient temperatures exceed 70°C—such as outdoor overhead fibers in summer or those near industrial facilities—the fiber’s outer materials are the first to suffer. Most fiber jackets are made of polyethylene, and high temperatures speed up oxidative degradation, causing molecular chain breakage, reduced mechanical strength, and even jacket cracking. The core’s outer coating (typically acrylate) softens at high temperatures, losing its protective function and potentially creating microcracks in the core.

More importantly, high temperatures directly increase optical signal attenuation. Under normal conditions, single-mode fiber in the 1550nm band has an attenuation of about 0.2dB/km, but this can rise by 0.1-0.3dB/km in high heat. This is because high temperatures intensify molecular motion in the core, boosting signal scattering and absorption—much like light fading in fog, weakening over distance and compromising communication clarity.

Additionally, high temperatures highlight the stark difference in thermal expansion coefficients between the fiber’s layers. Quartz fiber has a coefficient of about 0.55×10⁻⁶/℃, while polyethylene jackets have a much higher 150×10⁻⁶/℃. This gap creates interlayer stress, which over time can cause fiber microbending and further signal loss.

2. Low-Temperature Environments: Material Embrittlement & Mechanical Damage Risk

When temperatures drop below -40°C—common in high-latitude regions or severe cold weather—optical fiber becomes significantly more fragile. Jacket materials grow brittle as molecular movement slows, drastically reducing impact resistance: for example, polyethylene’s impact strength at -50°C is just 1/5 of its room-temperature strength. Even minor external forces, like wind or ice pressure, can crack the jacket and damage the inner core.

While the fiber itself (quartz) handles low temperatures well, the coating shrinks in cold conditions, creating gaps with the core and causing microbending loss. This is most noticeable at the midpoint of overhead fiber spans, where longer spans shrink more in cold weather, increasing microbending and abnormal signal attenuation. Test data shows that some single-mode fibers experience a total macro-bending + micro-bending loss increase of 0.08–0.15 dB/km at -55°C compared to room temperature, threatening long-haul communication stability.

II. Humidity: The Invisible "Corrosive" That Shortens Fiber Lifespan

If temperature’s impact is immediate and visible, humidity’s is hidden and long-lasting. Humidity itself doesn’t directly affect signal transmission, but water vapor can seep into the fiber through jacket defects or loose connections, causing chemical corrosion and physical damage. Over time, this significantly shortens fiber life and can even lead to sudden breakages.

1. Water Vapor Penetration: Corrosion & Structural Deformation

Fiber jacket materials (like polyethylene) have low water absorption (just 0.01%), but construction can leave minor scratches or poorly sealed connections—creating pathways for water vapor. When vapor seeps into the cable core, it triggers several issues:

For fibers with metal reinforcements (e.g., steel strands), water vapor causes electrochemical corrosion, producing products like iron hydroxide. This expansion deforms the cable core and squeezes the internal fiber. For non-metallic fibers, vapor may react with additives in water-blocking materials (e.g., petroleum jelly), reducing their effectiveness and allowing more vapor to reach the core.

Vapor also accelerates the fiber coating’s hydrolysis, causing peeling and cracking. This removes the core’s protection, exposing it to moisture and further increasing loss and damage.

2. High Humidity: Microbending Loss & Unstable Transmission

When humidity inside the fiber rises, water-blocking materials (e.g., water-blocking yarn) absorb moisture and expand, exerting radial pressure on the fiber. Experiments show that every 10% increase in humidity adds 5-10N/m of lateral pressure—exceeding 20N/m can cause microbending loss.

This loss is more pronounced in the 1310nm band, where signals are more sensitive to fiber bending. Humidity-induced microbending leads to significant attenuation, causing communication lags and packet loss. This is especially problematic in underground pipelines and coastal areas, where high humidity persists, accumulating loss and undermining long-term transmission stability.

III. Daily Protection: Mitigating Temperature & Humidity Impact

Understanding how temperature and humidity affect fiber lets us take targeted steps to extend its life and ensure stable communication. Protection priorities vary by scenario:

• High-temperature areas (deserts, industrial sites): Choose high-temperature-resistant jacket materials, such as low-smoke halogen-free polyolefin (long-term 90°C resistance) or fluoroplastics (long-term 200°C resistance). Increase overhead fiber suspension wire sag to prevent slack from thermal expansion.

• Low-temperature areas (high latitudes, severe cold): Use cold-resistant polyethylene jackets (with ethylene-vinyl acetate copolymer for flexibility at -60°C). Bury direct-buried fibers below the permafrost to reduce ground temperature fluctuations.

• Humid areas (coastal regions, underground pipelines): Adopt a double-layer jacket + metal armor for better sealing and minimal vapor penetration. Fill the cable core with water-swellable tape and low-temperature non-solidifying petroleum jelly for a three-level waterproof system.

• Daily maintenance: Regularly inspect fiber connections and jackets, repairing damage promptly. Install temperature and humidity controls in fiber rooms and distribution boxes to maintain stability (ideally 15-25°C and 40%-60% humidity).

IV. Summary: Details Drive Stability, Protection Starts with Awareness

Optical fiber may seem durable, enabling long-distance signal transmission, but temperature and humidity gradually degrade its performance over time, leading to failures. High-temperature thermal stress, low-temperature embrittlement, and humidity-induced corrosion—each can trigger communication outages.

For everyday users, understanding these impacts explains why networks sometimes lag in extreme heat or heavy rain. For communication technicians, mastering these mechanisms is key to implementing targeted protection and ensuring reliable optical communication systems.

After all, optical communication stability depends not just on high-quality fiber, but also on careful consideration of environmental factors—details are what keep communication seamless.
