Views: 0 Author: Site Editor Publish Time: 2026-01-21 Origin: Site
Recently, when helping a friend lay the network cable, he asked a particularly classic question:
"Does making the cable a bit longer or bending it a few times really make the network lag? Isn't gigabit supposed to handle anything?"
It's actually a great question because online opinions are all over the place:
Some say "bend it however, length doesn't matter much"
Others swear "over X meters = disaster, sharp bends = instant packet loss"

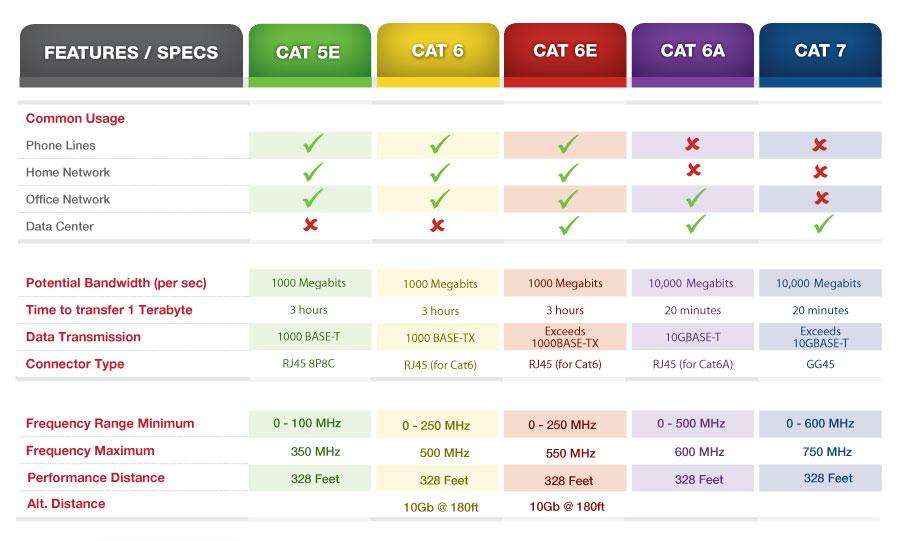

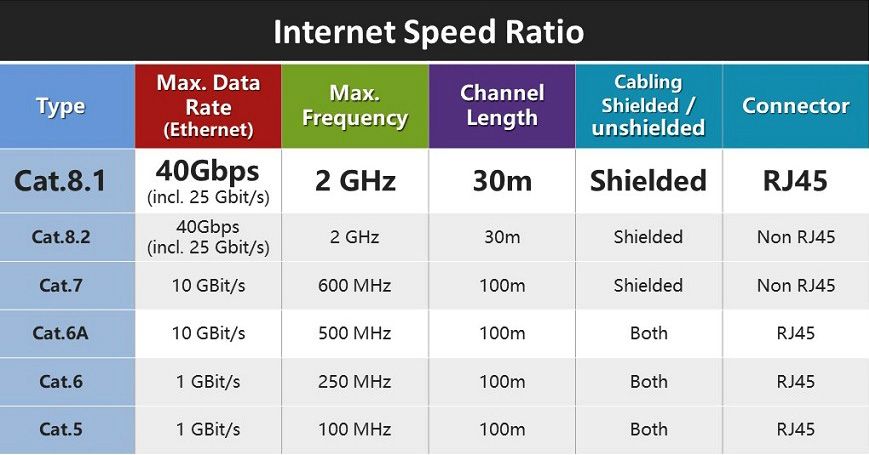

Quick Comparison: How Different Cable Categories Handle Length & Bending (2025–2026 mainstream reality)
Cable Category | Theoretical Max Safe Distance | Practical Recommended Distance | Bending Sensitivity | Gigabit Stability | 10G Stability | Notes |
Cat5e | 100 m | ≤ 80–90 m | ★★☆☆☆ | Easy | Basically impossible | Pretty much "vintage" now |
Cat6 | 100 m (Gigabit) | ≤ 70–85 m | ★★★☆☆ | Fairly easy | Struggles a lot | Still common in older buildings |
Cat6A | 100 m (10G) | ≤ 90–95 m | ★★☆☆☆ | Very easy | Easy | Current best bang-for-buck |
Cat7 / Cat7A | 100 m | ≤ 90–95 m | ★☆☆☆☆ | Rock solid | Very solid | Least sensitive to bends, but pricey |
Cat8 | 30 m (10G/25G/40G) | ≤ 25–28 m | ★★☆☆☆ | Extremely solid | Extremely solid | Mainly for short data-center runs |
Real-World Length Impact (using the most common Cat6A as example)
Distance | Gigabit Performance | 10 Gigabit Performance | Packet Loss / Retransmit Risk |
0–60 m | Perfect, basically zero issues | Perfect, basically zero issues | ★☆☆☆☆ |
60–85 m | Almost always perfect | Mostly fine, occasional issues in bad setups | ★★☆☆☆ |
85–95 m | Usually ok, some devices start dropping packets occasionally | Clearly struggles, often recommend dropping to 5 Gbps | ★★★☆☆ |
95–105 m | Many devices become noticeably unstable | Basically give up, frequently falls to 2.5G or 1G | ★★★★☆ |
105 m | Depends on luck… | 1 Luck + speed downgrade + praying | ★★★★★ |

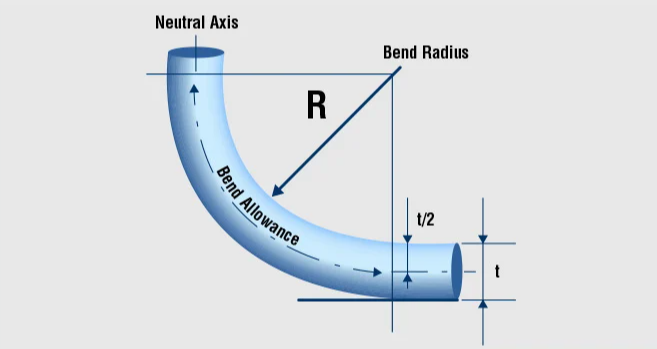

Bending – How Serious Is It Really?
Modern cables (especially Cat6A and above) have cross-shaped separators + individual pair shielding, so they tolerate bending much better than old myths suggest.
Still, there are some definitely dangerous bending habits that can seriously degrade performance:
1. 90° dead-sharp bend + tightly zip-tied ← Number one killer
2. Three or more near-90° sharp bends in a row (S-snake pattern)
3. Cable flattened at 90° and left that way long-term (door pinch, desk leg crush)
4. Bend radius smaller than 4× cable diameter (Cat6A recommends ≥4 cm radius)
5. Cable twisted into a pretzel shape inside a distribution box
- Gentle large-radius curves (like turning a car)

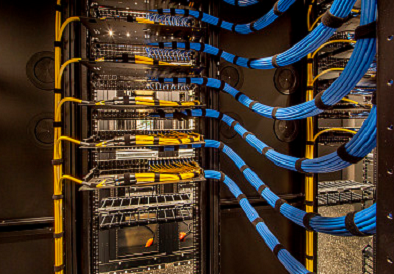

- Use cable trays / management rings for smooth transitions
- Keep bend radius ≥5–8 cm
- Never crush or pinch with tight ties
1. Use Cat6A whenever possible — it's the sweet spot for price/performance right now
2. Keep total home/office runs under 80 m if you can
3. Keep the most important segment (PC → switch) under 40 m
4. Absolutely avoid 90° dead bends + long-term crushing
5. Use cable management trays/rings in distribution boxes and corners
6. If you're already over 90 m and can't avoid it → add a mid-span switch or PoE extender
Your Situation → Recommended Action
≤3 rooms, total length <50 m │ Cat6 is totally fine, go wild
4–6 rooms, total 50–80 m │ Just go straight to Cat6A for peace of mind
Total 80–100 m │ Must use Cat6A + pay attention to bend radius
Want reliable 10 Gbps Cat6A + keep total ≤70 m + decent RJ45 plugs
Unlimited budget, want maximum reliability │ Full Cat7A or Cat8 (short runs)
Ethernet cables are a bit "magical" sometimes, but the magic has clear limits —
As long as you don't treat them like ropes, they'll usually behave very well.
