DIY Guide: How To Properly Install Indoor Optical Cables

In the era of high-speed networks, indoor optical cables (optical fiber cables) have become the preferred transmission medium for data centers, offices, and smart homes. Proper installation of indoor optical cables not only ensures stable signal transmission but also extends the cable's lifespan and avoids unnecessary faults. As a professional manufacturer of network cables and optical fibers, ZORA (www.zoracz.com) is committed to providing high-quality fiber optic products and solutions. This article will provide a detailed guide to the correct installation steps for indoor optical cables, helping you achieve DIY installation while complying with industry standards and safety regulations.

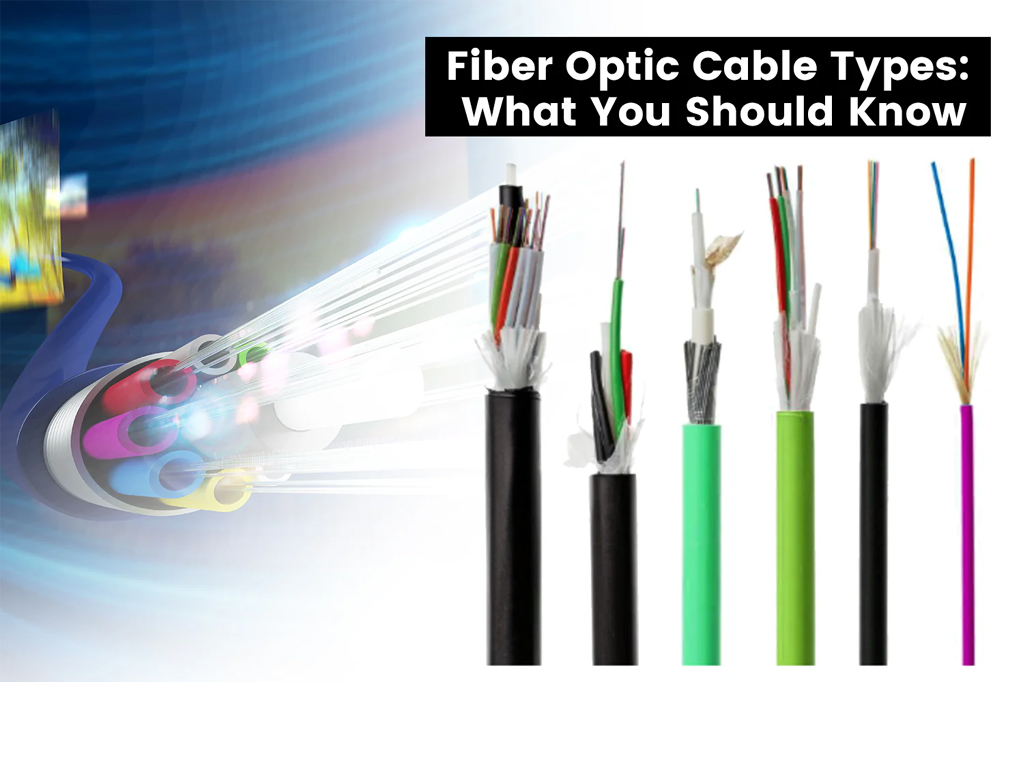

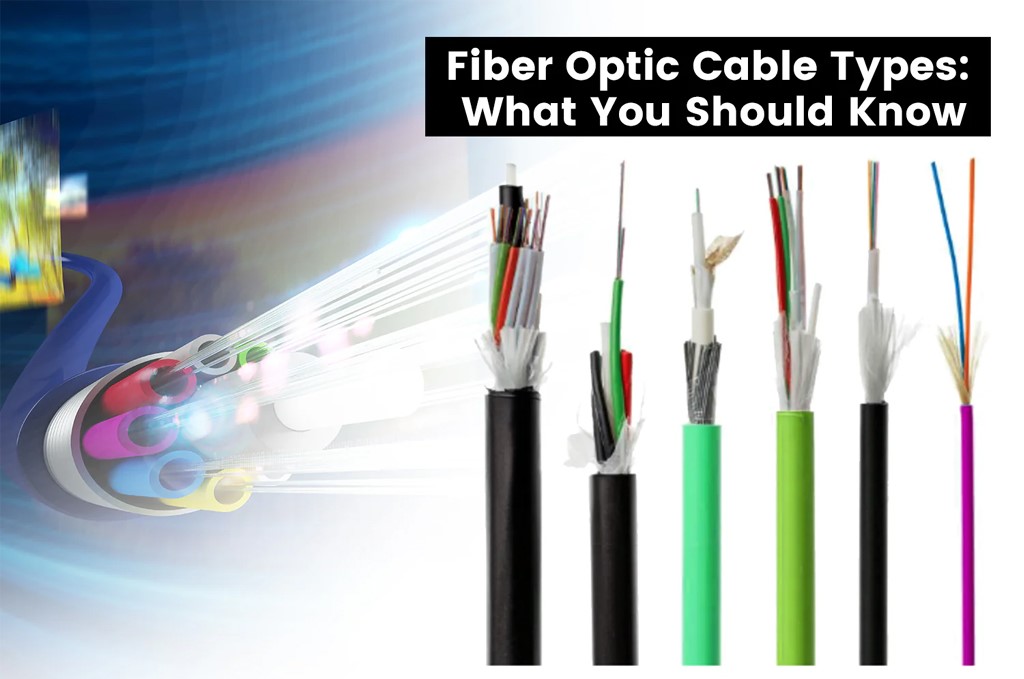

Common Types of Indoor Optical Cables (Image example: Classification of various indoor optical cable structures)

Why Choose Proper Installation for Indoor Optical Cables?

Compared to traditional copper cables, indoor optical cables offer higher bandwidth, lower signal attenuation, and better interference resistance. However, the fiber core is extremely fragile (with a diameter of just a few microns), and improper installation can lead to bending loss, fiber breakage, or signal attenuation. Following best practices maximizes network performance and aligns with Google's preferences for high-quality content—practical, detailed, and well-structured.

Required Tools and Materials

Preparing professional tools before installing indoor optical cables is essential. Common tools include:

Basic Fiber Optic Cable Termination Tool Kit

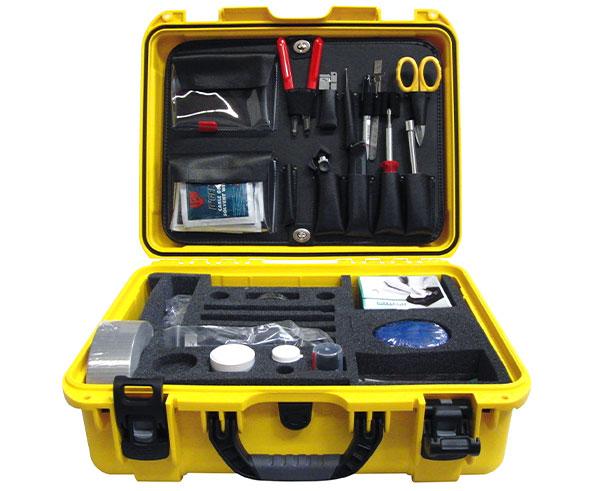

Example of a Fiber Optic Installation Tool Kit (including strippers, cutters, cleaning tools, etc.)

· Fiber optic stripper and cleaver

· Fiber cleaning tools (alcohol wipes, lint-free cloth)

· Cable puller or fish tape

·Cable clamps and ties

· Testing instruments (such as OTDR or optical power meter)

· Personal protective equipment (safety glasses, gloves)

ZORA offers matching fiber optic patch cords and accessories. For details, visit www.zoracz.com.

Safety Precautions

Although fiber optic installation does not involve electricity, there are potential risks:

· Wear safety glasses: To prevent fiber fragments from entering the eyes (fragments are as sharp as glass).

· Do not look directly at the fiber endface: Active light sources may damage the retina.

· Properly dispose of waste: Place fiber debris in dedicated containers to avoid injury.

· No eating or smoking in the work area; keep it clean.

Step-by-Step Guide: Indoor Optical Cable Installation

Step 1: Route Planning and Site Survey

· Measure the cable length, allowing 10-20% extra for service loops.

· Plan the routing: Utilize existing cable trays, ceiling spaces, or wall conduits, avoiding sharp corners and sources of electromagnetic interference.

· Check the environment: Ensure the temperature is within the installation range (typically 0-40°C) and complies with fire safety regulations (indoor cables often require LSZH low-smoke zero-halogen materials).

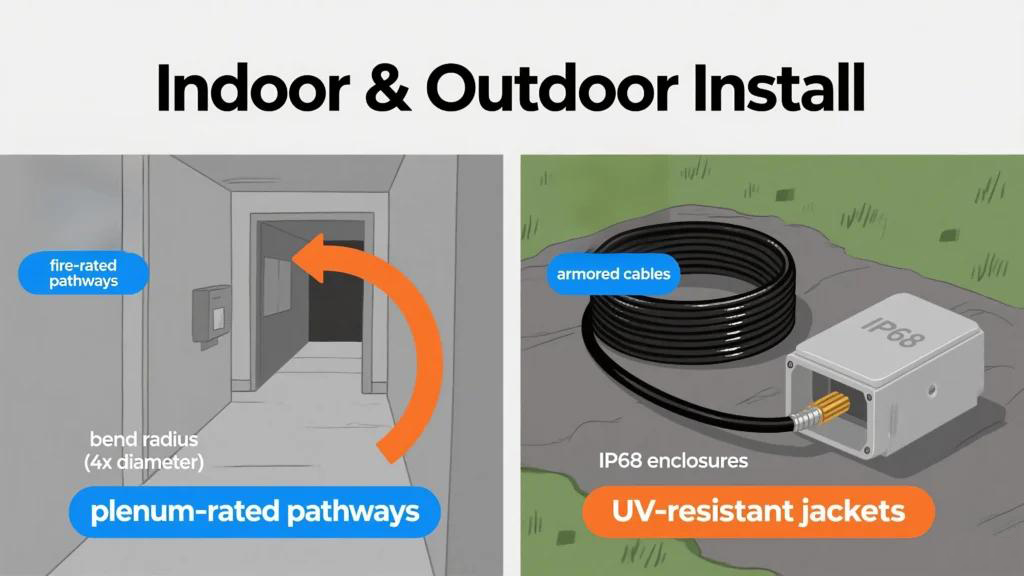

Example of Indoor Optical Cable Routing Path (utilizing cable trays and wall conduits)

Step 2: Prepare the Cable

· Inspect the cable packaging for integrity and no damage.

· Choose the appropriate type: Common indoor options include tight-buffered cables or distribution cables, suitable for bending and direct termination.

· If using conduits, pre-install innerducts to protect the cable.

Step 3: Pulling and Laying the Cable

· Key Rule: Always pull from the strength members (Kevlar yarn or fiberglass rods), never directly from the outer jacket.

· Maximum pulling tension should not exceed the manufacturer's specifications (typically a few hundred Newtons).

· Use lubricant to reduce friction (compatible with jacket materials).

· Lay flat in cable trays or ceilings; avoid dragging over existing cables.

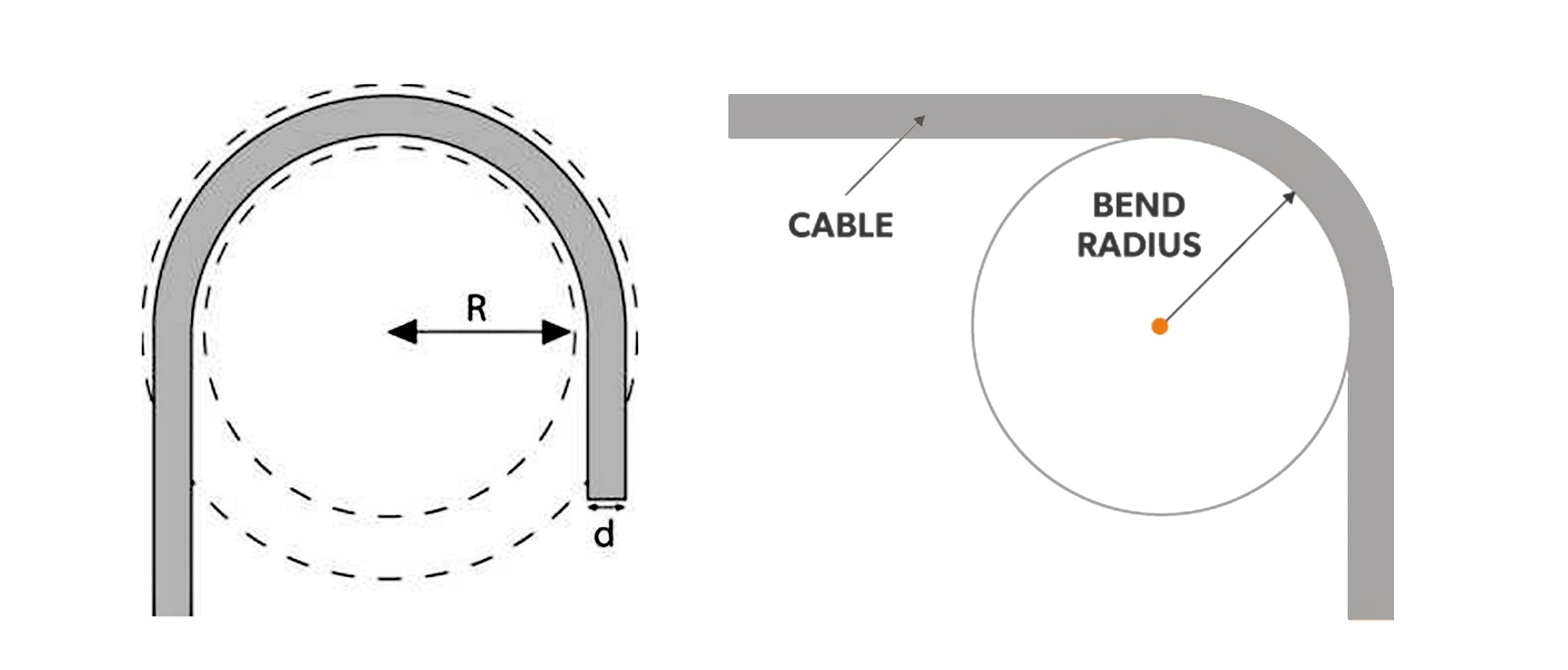

Diagram of Minimum Bend Radius for Optical Cables (at least 10-20 times the cable diameter during installation)

Step 4: Observe Bend Radius

· The minimum bend radius during installation is typically 10-20 times the cable diameter (15-20 times under load, 10 times unloaded).

· Excessive bending can cause micro-bends or macro-bends, leading to signal attenuation.

Step 5: Securing and Organizing

· Use dedicated clamps to secure the cable, avoiding over-tightening that could crush the fiber core.

· Leave service loops for future maintenance.

· Label clearly: Mark starting point, endpoint, and core numbers.

Step 6: Termination and Connection

· Clean the endface: Use dedicated cleaning pens or alcohol wipes.

· Termination methods: Fusion splicing or pre-terminated connectors (SC/LC, etc.).

· For DIY, pre-terminated patch cords are recommended for simplicity and safety.

Step 7: Testing and Verification

· Use OTDR to test for attenuation, breakpoints, and length.

· Verify end-to-end loss with an optical power meter (should be <0.5dB per connection).

· Record all test data for future troubleshooting.

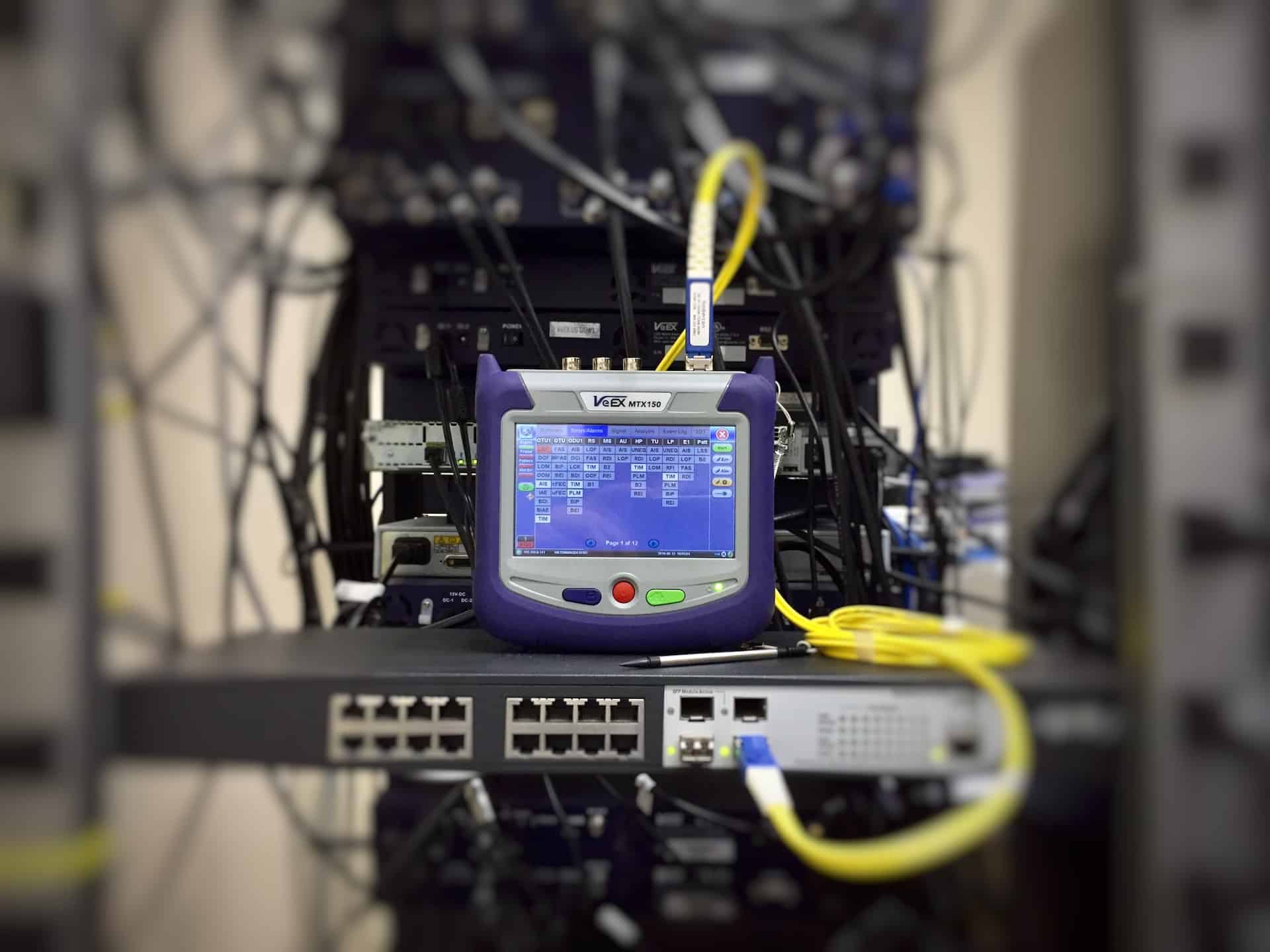

Example of Fiber Optic Termination and Testing Process

Common Mistakes to Avoid

· Excessive stretching or bending: Leads to permanent loss.

· Endface contamination: Dust is the primary cause of signal attenuation.

· Ignoring fire safety requirements: Indoor use must have flame-retardant jackets.

· Going live without testing: Hidden issues lead to higher costs later.

Conclusion

Properly installing indoor optical cables can provide you with a stable, high-speed network experience. If you need high-quality indoor optical cables, patch cords, or customized solutions, please visit the ZORA website at www.zoracz.com. We offer a full range of products from single-mode to multi-mode and support OEM/ODM services. Professional consultation is always available to make your network installation simpler and more efficient!

This article is written based on industry standards (such as TIA/EIA-568 and FOA guidelines) and is for reference only. For complex projects, consult a professional technician.
