What is Single-Mode Fiber

Core Definition

Single-mode fiber (SMF) is an optical fiber designed to allow only one light propagation mode (or path) to pass through at a given operating wavelength. This means the light signal travels along the fiber's central axis in a single path, with minimal reflection and dispersion. As a result, it enables long-distance, high-capacity data transmission with extremely low attenuation and dispersion.

The term "mode" refers to the electromagnetic field distribution pattern of light as it propagates through the fiber. Simply put, it can be understood as the different paths light can take within the fiber. Single-mode fiber allows only one path (the fundamental mode) to exist.

Key Characteristics of Single-Mode Fiber

1. Very Small Core Diameter

This is the most prominent structural feature of single-mode fiber. Its core diameter is extremely small, typically ranging from 8μm to 10μm (with 9μm being standard). For comparison, multi-mode fiber typically has a core diameter of 50μm or 62.5μm. The small core physically restricts light to propagate in only one mode (a straight path).

2. Operating Wavelength

Single-mode fiber typically operates in the long-wavelength bands, primarily at 1310nm and 1550nm. At these wavelengths, material dispersion and loss due to Rayleigh scattering are minimal, ensuring optimal performance.

3. Light Source

Single-mode fiber requires the use of a laser light source (e.g., Distributed Feedback Laser, DFB-LD) due to its high brightness, coherence, and excellent collimation, which allow efficient coupling of light into the extremely small core. Inexpensive LEDs (light-emitting diodes) cannot be used because their light is too divergent to be effectively coupled into the single-mode fiber core.

4. High Bandwidth and Long Transmission Distance

Since only one mode is transmitted, single-mode fiber eliminates modal dispersion (the signal broadening caused by different modes arriving at the endpoint at different times). This results in extremely high bandwidth and low attenuation, making it ideal for ultra-long distances (tens to hundreds of kilometers) and high-speed communications (e.g., 10G, 40G, 100G, 400G, and beyond).

5. Cost

The cost of single-mode fiber itself is comparable to, or sometimes lower than, multi-mode fiber. However, the associated optical equipment (laser transmitters and precision receivers) is significantly more expensive than equipment used in multi-mode systems.

Single-Mode vs. Multi-Mode Fiber: A Simple Analogy

Multi-Mode Fiber (MMF)

Think of multi-mode fiber as a wide pipe. When light enters, photons can travel in multiple angles (modes), some in a straight line and others in a zigzag pattern. This causes different light paths to arrive at the endpoint at slightly different times (modal dispersion), limiting transmission speed and distance.

• Advantages: Inexpensive equipment (using LEDs or VCSEL lasers) and easier connections.

• Disadvantages: Shorter distance and lower bandwidth.

• Applications: Data centers, local area networks (LANs), and short-distance campus networks.

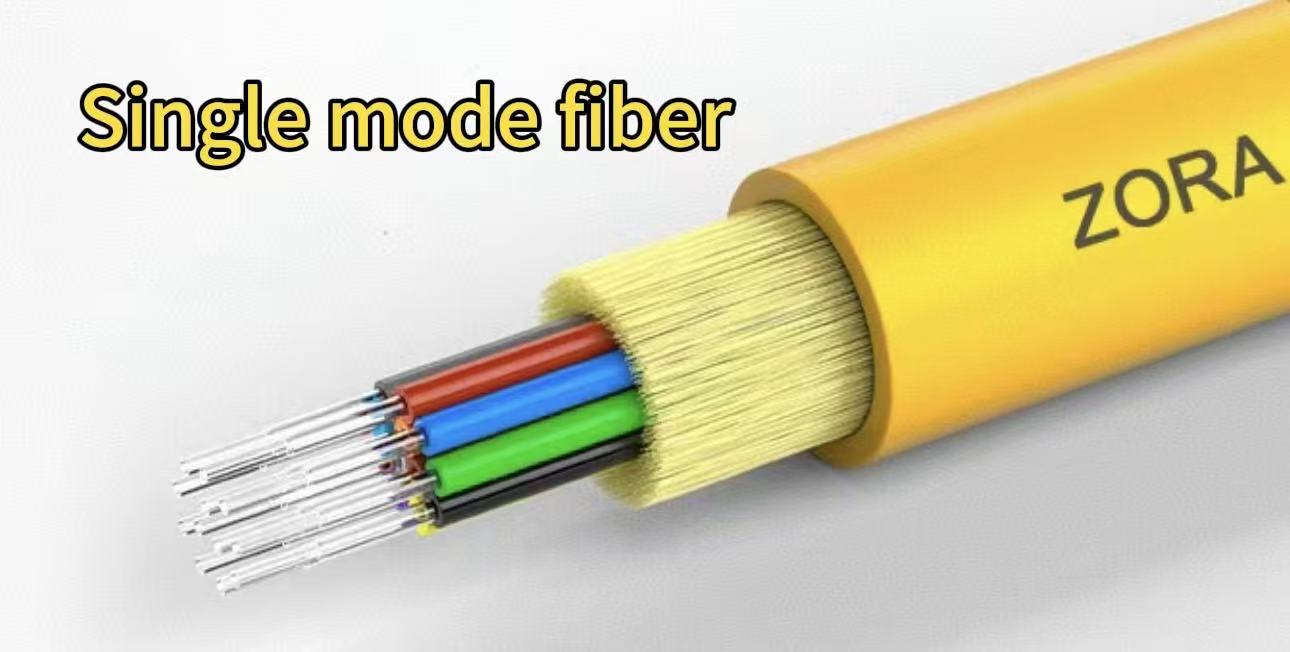

Single-Mode Fiber (SMF)

Single-mode fiber is like an extremely thin straw. Light can only travel in one mode—almost perfectly straight—ensuring all photons arrive at the endpoint simultaneously, with no modal dispersion.

• Advantages: Extremely high bandwidth, long distances, and low loss.

• Disadvantages: Expensive equipment and high-precision connections required.

• Applications: Long-haul telecommunication networks, metropolitan area networks, fiber-to-the-home (FTTH), and submarine cables.

For high-quality single-mode fiber solutions, explore ZORA products at www.zoracz.com.

Comparison Table

Applications

Single-mode fiber is the backbone of modern communication networks, widely used in:

• Long-haul telecommunication networks: Connecting cities and countries.

• Cable television (CATV) networks: Delivering high-quality video signals.

• Fiber-to-the-home (FTTH): Providing high-speed internet to households.

• Data center interconnects: Enabling high-speed data synchronization between data centers.

• Submarine cables: Connecting global continents for international communication.
