Troubleshooting: Common Fiber Optic Network Issues And Their Solutions

In modern enterprise networks and data centers, fiber optic networks have become the standard due to their ultra-high bandwidth, low latency, and strong anti-interference capabilities. However, even the highest-quality fiber systems can experience failures. Quickly identifying and resolving fiber optic network issues can minimize business downtime to the greatest extent. This article summarizes the top 10 most common fiber optic network problems, their root causes, and practical solutions — perfect for network engineers and IT operations teams.

Official Website: www.zoracz.com | ZORA Communication – Your trusted partner for transceivers, fiber patch cords, MPO/MTP cabling systems, and end-to-end optical network solutions.

ZORA Patch Cords

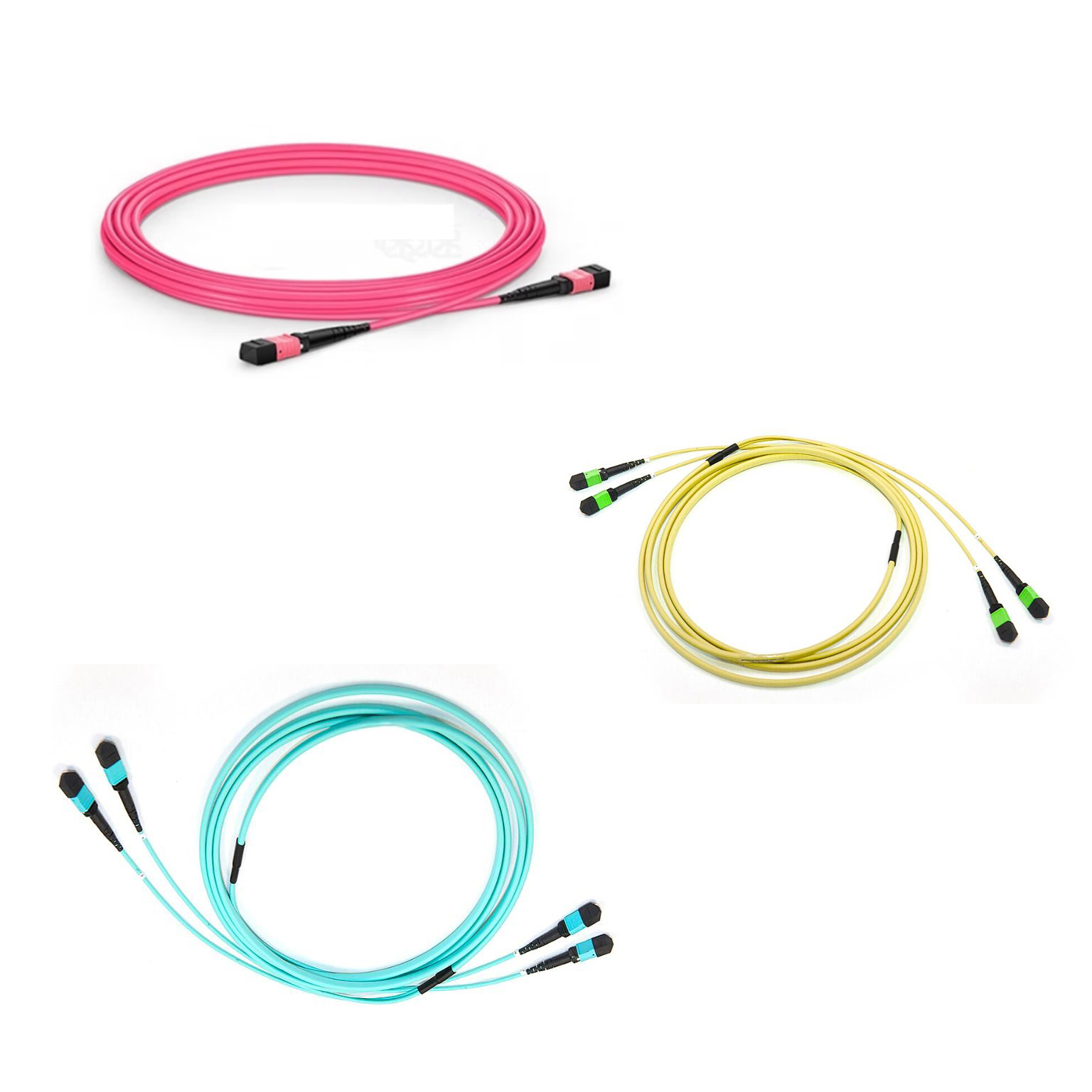

ZORA MPO Trunk Fiber

1. Complete Loss of Optical Signal (Link Down / No Light)

Common Causes

· Fiber break or severe bending

· Faulty or improperly seated optical transceiver

· Incompatible transceiver (wavelength, rate, or vendor-locked)

· Port disabled or contaminated with dust

Solutions

1. Use a Visual Fault Locator (VFL) to inject visible red light from one end and check for light leakage at the other end to quickly locate the break.

2. Clean the transceiver and adapter (use lint-free wipes + 99% isopropyl alcohol or a one-click cleaner).

3. Replace with a known-good spare transceiver to rule out module failure.

4. Check device logs for messages like “Port administratively down” or “SFP not supported”.

2. Low Optical Power (Rx Power Too Low)

Symptoms

Link shows Up, but received (Rx) power is far below -15 dBm, often accompanied by high CRC errors and packet loss.

Root Causes & Fixes

3. Optical Overload (Rx Power Too High / Rx Overload)

Symptoms

Rx power exceeds -3 dBm or even reaches 0 dBm, causing massive errors or link flapping.

Solutions

· For short distances (<300 m), switch to lower Tx power modules (e.g., 10G LR → SR)

· Insert fixed attenuators (5 dB / 7 dB / 10 dB LC or MPO inline attenuators)

· Use transceivers with Digital Diagnostic Monitoring (DDM) to monitor real-time power

4. Intermittent Packet Loss, High Latency, or Jitter

Typical Scenario

Everything works fine most of the time, but sudden lag or packet loss occurs sporadically and is hard to reproduce.

Common Causes

· Transceiver overheating causing wavelength drift

· Patch cords being pinched when cabinet doors are opened/closed

· Microcode incompatibility between transceiver and switch

Troubleshooting Steps

1. Check real-time transceiver temperature (show interface transceiver detail)

2. Secure cable routing to prevent repeated mechanical stress

3. Upgrade switch firmware or use pre-validated compatible transceivers

5. One-Way Communication (TX Works, RX No Light)

Common Causes

· Tx/Rx fibers crossed (A-to-A, B-to-B instead of A-to-B)

· Single fiber broken (often caused by rodents outdoors or construction damage)

· Unidirectional transceiver failure

Quick Diagnosis

Use an optical power meter to measure Tx power at both ends:

· If Device A Tx is normal but Device B Rx sees no light → check the fiber path from A to B

· Vice versa → check the path from B to A

6. MPO/MTP Polarity Issues (Common in 40G/100G/400G)

Frequent Mistakes

· Mixing Type A and Type B polarity trunks

· Incorrect use of polarity flip boxes

Best Practice

· Standardize on Type B (straight-through) polarity throughout

· Use pre-terminated MPO-LC breakout cassettes with factory-verified polarity

7. Frequent Transceiver Restarting or Dropping Offline

Causes

· Excessive power supply ripple

· Low-quality EEPROM prone to failure

Solutions

· Switch to rigorously tested transceivers

· Check whether the switch power supply module is aging

Summary: Golden Fiber Optic Troubleshooting Workflow

1. Check the lights – Link/Act LED status on the front panel

2. Check logs – show log / display log

3. Check optical power – show interface transceiver detail

4. Clean connectors – Always the first step!

5. Substitution method – Replace patch cord → transceiver → port one by one

6. Use proper tools – Optical power meter + OTDR + fiber inspection scope

Mastering the above will allow you to resolve 90% of fiber optic faults within 10 minutes.
