In the digital era, upgrading network infrastructure has become an indispensable part of business and personal operations. Fiber optics, as the core technology for high-speed transmission, is widely used in data centers, metropolitan area networks, and enterprise internal networks. However, when faced with the choice between single-mode fiber (Single-Mode Fiber, SMF) and multi-mode fiber (Multi-Mode Fiber, MMF), many people feel confused: Which type of fiber is more suitable for my needs? Is the long-distance transmission advantage of single-mode fiber worth the higher cost? Is the cost-effectiveness of multi-mode fiber sufficient to meet short-distance high-speed scenarios?
This article will deeply analyze the differences between single-mode fiber and multi-mode fiber, covering basic structure, transmission distance, cost, application scenarios, and common questions, providing answers one by one. Through these practical guides, you will learn how to make informed choices based on actual needs. If you are planning a network project, welcome to visit www.zoracz.com, where we offer professional fiber optic solutions and customized consulting services.
The core of fiber optic communication lies in how light signals propagate in the fiber core. Single-mode fiber allows only a single light mode to propagate, reducing signal attenuation and dispersion; multi-mode fiber supports multiple light paths, suitable for short distances but susceptible to modal dispersion. According to international standards (such as ITU-T G.652 for SMF and IEC 60793 for MMF), these fiber types each have optimized paths.
The key to choosing fiber lies in evaluating transmission distance, bandwidth requirements, budget, and environmental factors. For example, in data centers, multi-mode fiber can achieve short-distance connections above 10Gbps, while metropolitan area networks rely on the ultra-long transmission of single-mode fiber. Next, we will start from the structure and compare them one by one.
Single-mode and multi-mode fibers have significant differences in physical structure, which directly affect their performance and applicability. Understanding these basics can help you quickly identify and select the right type.
The outer sheath color is the simplest way to identify fiber, facilitating on-site installation and maintenance.
Single-Mode Fiber: Typically uses a yellow outer sheath (OS1/OS2 standard). Yellow symbolizes its high-purity glass core material, suitable for long-distance transmission to avoid light signal attenuation.

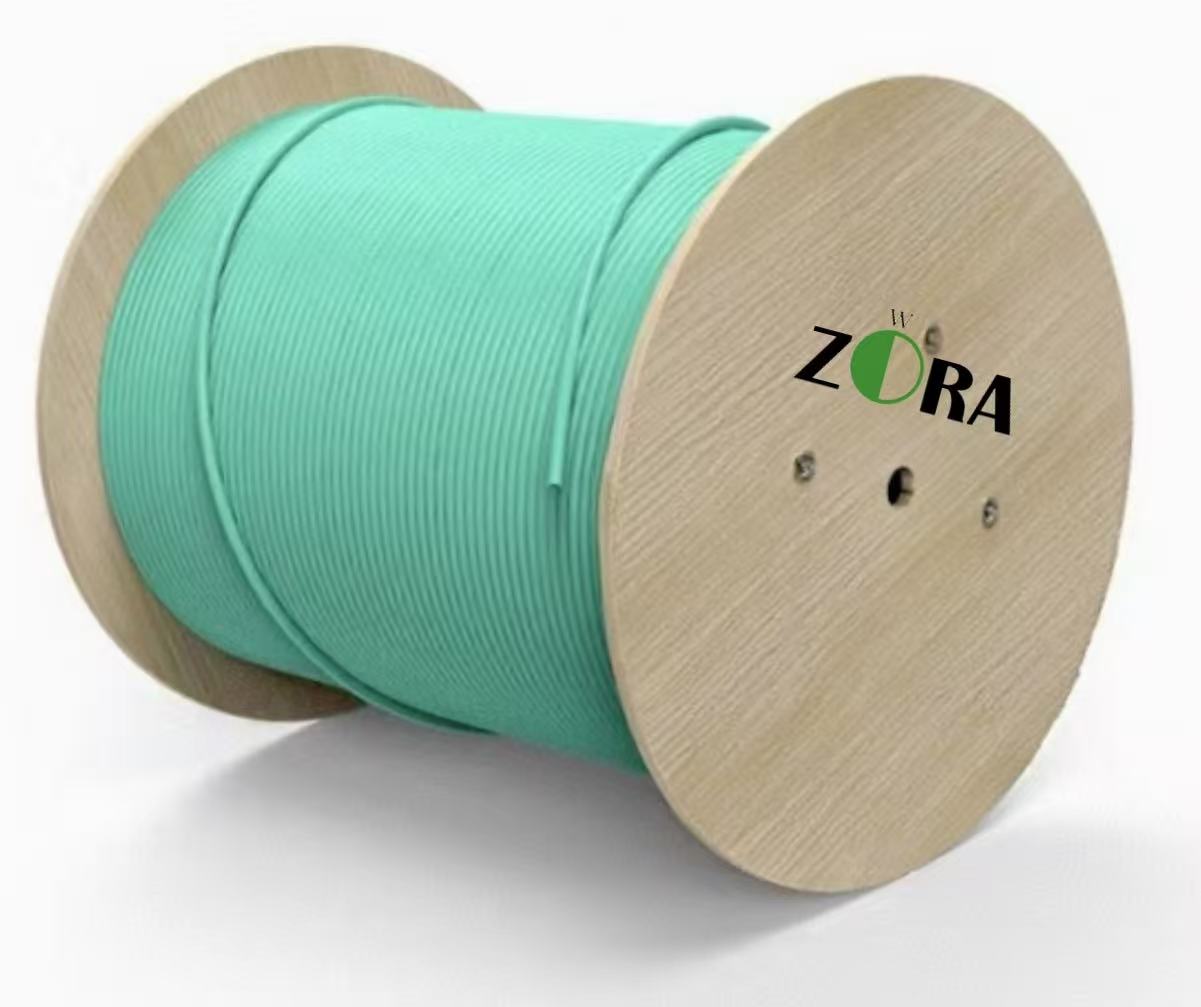

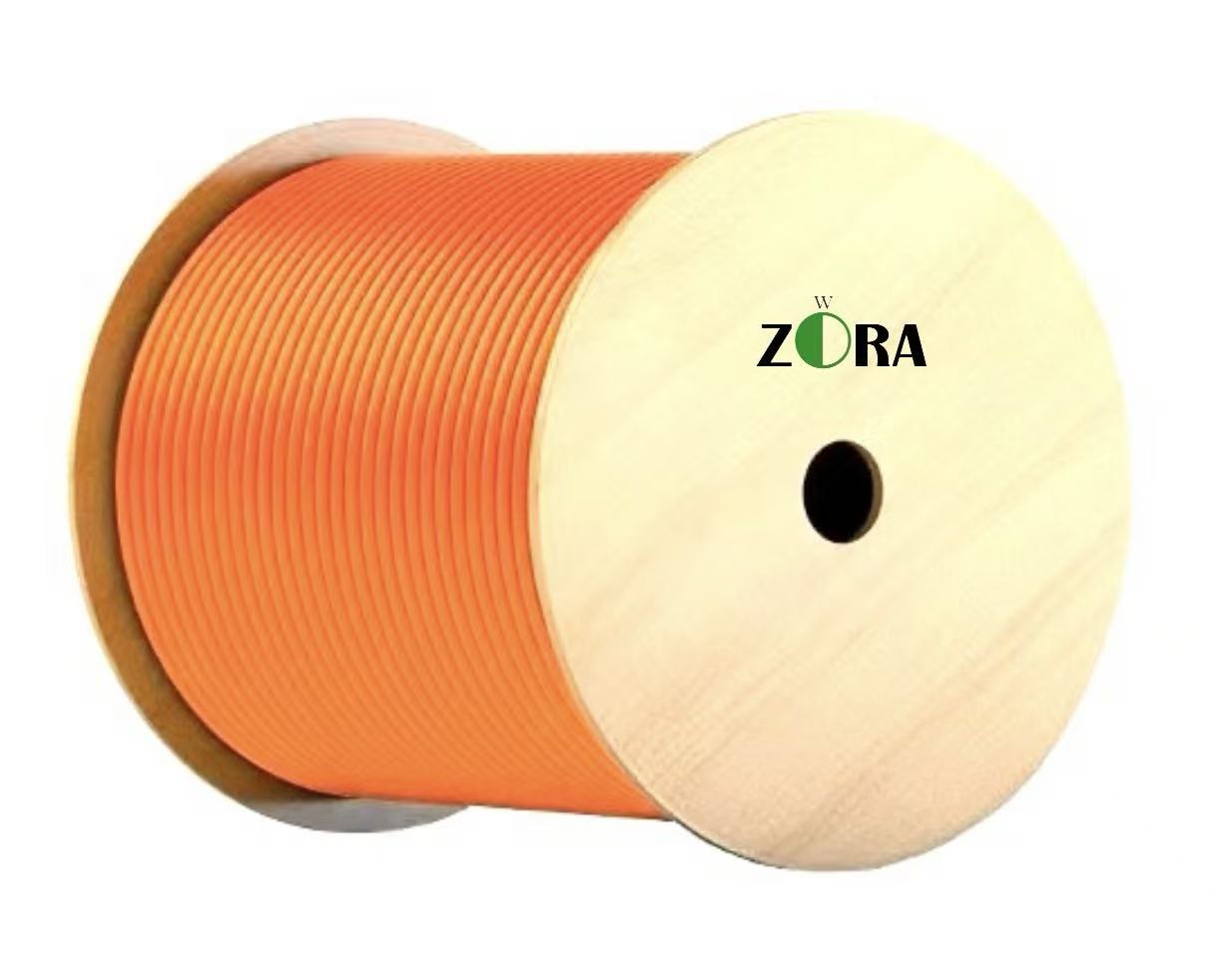

Multi-Mode Fiber: Colors are more diverse. OM1 and OM2 are orange, representing early standards; OM3 and OM4 are aqua blue, optimized for laser compatibility, making it easy to distinguish laser-optimized multi-mode fiber (LOMMF).
In actual procurement, color standards help avoid mixing errors. For example, when wiring in a data center, using aqua blue OM4 can quickly match VCSEL laser sources. Zoracz provides color-coded fiber patch cords to ensure your network standardization. For details, see www.zoracz.com
Core Diameter: The Key Parameter Determining the Number of Light Modes
The core diameter is the core difference in fiber optics, directly affecting the propagation mode of light signals.
Single-Mode Fiber: The core diameter is only 9µm (microns), allowing only a single light mode to transmit. This keeps the signal low in dispersion, suitable for long-distance relay-free transmission.
Multi-Mode Fiber: The core is larger, at 50µm (OM2/OM3/OM4) or 62.5µm (OM1). The multi-mode design facilitates coupling with LED light sources, but multi-path propagation easily leads to modal dispersion, limiting distance.
The difference in core size stems from manufacturing processes: single-mode requires precise drawing technology, while multi-mode is easier for mass production. When selecting, if your network link exceeds 500m, prioritize single-mode to avoid signal distortion.
The light source is the "heart" of the fiber optic system, determining signal quality and power consumption.
Single-Mode Fiber: Relies on laser light sources (such as DFB lasers), with wavelengths typically at 1310nm or 1550nm. The laser's monochromaticity and high power ensure long-distance transmission, but the cost is higher.
Multi-Mode Fiber: Uses LED light sources (or VCSEL vertical-cavity surface-emitting lasers), mainly at 850nm wavelength. LEDs are economical, but their wide spectrum makes them susceptible to dispersion.
In high-speed networks, laser sources are gradually replacing LEDs, especially in the 40G/100G era. Zoracz's optical modules are compatible with multiple light sources, assisting your upgrades. Visit www.zoracz.com for more information.
Through these structural comparisons, we can see that single-mode fiber is more "refined," while multi-mode is more "inclusive." Next, let's see how transmission performance amplifies these differences.
Transmission distance is the primary indicator for fiber selection, especially under the drive of 5G and cloud computing, where 10G/40G speeds have become standard. The following table summarizes the performance of common types at 1G and 10G speeds (based on ISO/IEC 11801 standards):
| Fiber Type | 1G Speed Distance | 10G Speed Distance |
|---|---|---|
| Single-Mode (OS1/OS2) | >100km | >10km |
| Multi-Mode (OM1) | 275m | 33m |
| Multi-Mode (OM2) | 550m | 82m |
| Multi-Mode (OM3) | 550m | 300m |
| Multi-Mode (OM4) | 550m | 400m |
From the table, it is clear that single-mode fiber leads far in long-distance scenarios: the OS2 standard even supports 40km passive transmission, suitable for telecom backbone networks. Multi-mode fiber shines in short distances, with OM4 reaching 400m at 10G, sufficient to cover large data centers.
Influencing factors include attenuation coefficient (single-mode 0.35dB/km vs multi-mode 3dB/km) and modal dispersion. In the future, with PAM4 modulation, single-mode will dominate the 100G+ era. If your project involves inter-city connections, single-mode is the first choice; for short distances, multi-mode offers better cost-performance. Zoracz's testing tools can simulate these scenarios; book a demo at www.zoracz.com
Furthermore, in actual deployment, consider bend loss and connector types (such as LC/SC). Single-mode's low bend sensitivity (G.657 standard) makes it more suitable for complex wiring, while multi-mode's tolerance is high, facilitating DIY installation.
Cost is a pain point in decision-making: single-mode seems expensive, but in the long run, it may be more cost-effective.
The total cost of ownership (TCO) for multi-mode fiber is lower, mainly due to:
Light Source Cost: LED modules are only 1/3-1/2 the price of lasers, suitable for budget-constrained enterprises.
Material and Installation Cost: Large cores are easy to align, reducing welding time; orange/aqua blue patch cords are affordable, with OM1/OM2 per meter less than 60% of single-mode.
Conversely, single-mode initial investment is 20-50% higher due to lasers and precision core materials. However, its low attenuation reduces the need for repeaters, with ROI (return on investment) exceeding multi-mode by 30% within 5 years. For example, in a 100km metropolitan area network, the maintenance savings from single-mode offset the upfront costs.
According to Gartner reports, data centers are shifting to OM4 multi-mode to control costs, while telecom operators favor OS2 single-mode. Zoracz offers cost-optimization solutions, including bulk purchase discounts. Browse details at www.zoracz.com
Additionally, consider hidden costs: multi-mode's dispersion limitations create upgrade bottlenecks, while single-mode's future-proofing is higher. In an inflationary environment, choices need to balance short-term budgets with long-term expansion.
The diversity of fiber applications determines its value. Below, we break it down by scenario to help you match accordingly.
Single-mode fiber is a "marathon runner," designed specifically for long distances.
Metropolitan Area Network (MAN): Connects nodes between cities, supporting DWDM multiplexing to achieve Tb/s-level capacity. Typical examples include operators' FTTx deployments.
PON (Passive Optical Network): In GPON/NG-PON, single-mode provides 20km+ access, serving home broadband. Low-power tree topology reduces OPEX.
In 5G backhaul, single-mode's low latency (<1ms) is indispensable. Zoracz's PON modules are compatible with OS2, assisting your deployment. View at www.zoracz.com
Multi-mode fiber is like a "sprinter," efficiently serving local environments.
Enterprise Internal Network: Office building LAN, OM3 supports 1G to 10G, with simple wiring suitable for SFP modules.
Data Center: Connections between server racks, OM4 reaches 150m at 40G, combined with MPO connectors for high-density wiring.
In AI computing clusters, multi-mode's parallel optical paths (MPO) accelerate data flow. In the future, OM5 (wideband multi-mode) will extend to 400G short distances.
When selecting, evaluate link budgets: multi-mode suits <500m, single-mode >1km. Zoracz's on-site survey services ensure the best match; book at www.zoracz.com
In selection, there are always tricky issues. The following selected Q&A is based on industry practices.
A: Direct mixing is generally not recommended, as it leads to mode mismatch, link loss >3dB, and increased jitter, affecting BER (bit error rate). However, it can be achieved through single-to-multi-mode conversion patch cords (Mode Conditioning Patch Cord), such as when upgrading legacy multi-mode. Zoracz supplies compatible converters; see details at www.zoracz.com
A: Using multi-mode modules on single-mode is not feasible: LED light sources have low power and multiple modes, leading to coupling loss >10dB and signal weakening. Conversely, using single-mode modules on multi-mode is feasible, but requires fiber adapters (such as SC-to-LC) to convert laser modes. Tests show this solution has loss <1dB, suitable for temporary bridging. It is recommended to consult professional tools for verification.
A: Phased approach: First use conversion patch cords for transition, then gradually replace core materials. Cost is about $50-200 per end, with time depending on scale. Download Zoracz's migration guide for free at www.zoracz.com
A: Single-mode dominates long distances (such as 400G ZR), while multi-mode optimizes short distances (such as 800G SR8). A hybrid strategy is best, depending on ROI.
These answers cover 80% of pain points; for specific questions, email zoracz@zoracz.com.
Single-mode fiber and multi-mode fiber are not opposites but complements: the former conquers distance, the latter conquers cost and speed. Assess your network—is it an inter-city backbone or a machine room interconnection? Through this article's guide, you have mastered the core decision framework.
Zora, a reliable partner in the field of fiber optics, offers a full range of link products from OS2 single-mode to OM5 multi-mode. Whether for new construction or upgrading, our expert team will assist you. Visit www.zoracz.com immediately to get a free quote or download technical materials, which will help build an efficient and future-oriented network infrastructure!
