In modern communication technology, optical networks have become the backbone force for information transmission. Optical networks use optical signals to transmit data in optical fibers and have significant advantages such as high bandwidth, low latency and long-distance transmission. Wavelength, as one of the fundamental attributes of optical signals, has a profound impact on the performance, capacity, transmission distance and cost of optical networks. This article will delve deeply into the role of wavelength in optical networks and how different wavelengths affect various aspects of optical networks.

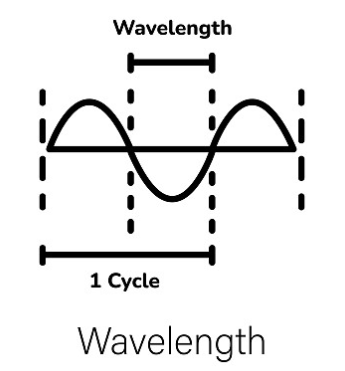

Wavelength refers to the spatial distance of a light wave within one cycle, usually measured in nanometers (nm) or micrometers (μm). The wavelength range of visible light is approximately between 400nm and 700nm, while the wavelengths used for optical communication are mainly concentrated in the infrared band, especially around 1310nm and 1550nm. This is because optical fibers have lower losses near these wavelengths and are suitable for long-distance transmission.
The transmission loss of optical fibers is one of the key factors affecting the performance of optical networks. The loss characteristics of light of different wavelengths in optical fibers are different. Generally speaking, optical fibers have relatively low loss around 1310nm and 1550nm, and these two wavelengths are known as the "Windows" of optical fiber communication. Near the wavelength of 1310nm, the dispersion of optical fibers is relatively small, making them suitable for long-distance transmission. Near the wavelength of 1550nm, the loss of optical fibers is the lowest, and it matches the working wavelength of erbium-doped fiber amplifiers (EDFA). Therefore, it is widely used in long-distance and high-capacity optical transmission systems.
Dispersion refers to the phenomenon where light of different wavelengths travels at different speeds in optical fibers, resulting in the broadening of optical pulses. Dispersion can limit the transmission rate and distance of optical signals. Near the wavelength of 1310nm, the dispersion of optical fibers is relatively small, making them suitable for high-speed transmission. Near the wavelength of 1550nm, although the loss is relatively low, the dispersion is large, and dispersion compensation measures need to be taken.
Wavelength multiplexing technology is an important means to increase the capacity of optical networks. By transmitting multiple optical signals of different wavelengths in the same optical fiber, the transmission capacity of the optical fiber can be significantly increased. Wavelength Division multiplexing (WDM) technology utilizes the transmission of optical signals of different wavelengths within the same optical fiber. Each wavelength can carry a different data stream, thereby achieving efficient utilization of spectral resources.
Transmission characteristics
Low dispersion: Around the wavelength of 1310nm, the dispersion of optical fibers is relatively small, making them suitable for high-speed transmission. The reduction in dispersion means that the optical pulse is less broadened during transmission, which can support higher data rates.
Moderate loss: Although the loss of 1310nm wavelength optical fibers is slightly higher than that of 1550nm, it is still at a relatively low level and is suitable for medium-distance transmission.
Application scenarios
Local area networks (Lans) and metropolitan area networks (mans) : Due to the low dispersion characteristic of the 1310nm wavelength, it has been widely applied in Lans and mans. These networks usually need to support high-speed data transmission and have relatively short transmission distances. The 1310nm wavelength can well meet these requirements.
Access network: In access network scenarios such as Fiber to the Home (FTTH), the 1310nm wavelength is also often used for downlink transmission because it can support high data rates while having lower requirements for dispersion.
Transmission characteristics
Minimum loss: The 1550nm wavelength is one of the wavelengths with the lowest loss in optical fiber communication and is suitable for long-distance transmission. In long-distance transmission, lower loss means that the signal attenuates less during transmission, which can reduce the number of Repeaters used and lower network costs.
High dispersion: Although the loss at the 1550nm wavelength is relatively low, the dispersion is relatively large. To achieve high-speed transmission, dispersion compensation technologies such as dispersion compensation optical fibers (DCF) or dispersion compensation modules (DCM) need to be adopted.
Application scenarios
Long-distance transmission: The 1550nm wavelength is the preferred wavelength for long-distance optical transmission networks. Due to its low-loss characteristic, it can support long-distance transmission and match the working wavelength of the erbium-doped fiber amplifier (EDFA), enabling efficient signal amplification.
Submarine optical cables: In submarine optical cable communication, the 1550nm wavelength is also widely used. Submarine optical cables need to travel thousands of kilometers. Low-loss and efficient amplification technology is the key to achieving reliable transmission.
Transmission characteristics: Optical fibers with a wavelength of 850nm have relatively high loss, but they have a large bandwidth and are suitable for short-distance and high-bandwidth transmission. Multimode fibers have a relatively high mode bandwidth near a wavelength of 850nm and can support high data rates.
Application scenarios:
The 850nm wavelength is mainly used for short-distance local area networks and internal connections in data centers. In data centers, multimode optical fibers with a wavelength of 850nm can support high-speed and short-distance optical interconnection, meeting the data transmission requirements between servers.
Transmission characteristics: Optical fibers with wavelengths of 1625nm and higher have higher losses, but these wavelengths can be used in specific optical network applications, such as pump light sources for optical amplifiers or monitoring signals.
Application scenarios: These wavelengths of optical signals are typically used for auxiliary functions in optical networks, such as pumping optical amplifiers or transmitting network monitoring signals.
Wavelength division multiplexing (WDM) technology achieves efficient utilization of spectral resources by transmitting multiple optical signals of different wavelengths in the same optical fiber. Each wavelength can carry different data streams, thereby significantly increasing the transmission capacity of optical fibers.
Capacity enhancement: WDM technology can increase the transmission capacity of optical fibers by several times or even tens of times. For instance, by transmitting multiple wavelengths of optical signals in a single optical fiber, it is possible to achieve a transmission capacity ranging from 100 GBPS for a single wavelength to 1Tbps or even higher for multiple wavelengths.
Cost-effectiveness: WDM technology can reduce the number of optical fibers used and lower the costs of network construction and maintenance. Meanwhile, by multiplexing multiple wavelengths, the spectral resources of optical fibers can be fully utilized, thereby enhancing the overall efficiency of the network.
Flexibility: WDM technology enables the flexible addition or reduction of wavelength channels without increasing the number of optical fibers. This flexibility enables optical networks to better adapt to changes in business requirements and support dynamic network configuration.
Dense Wavelength Division Multiplexing (DWDM) technology
Dense wavelength Division multiplexing (WDM) technology is an advanced form of WDM technology. It further enhances the transmission capacity of optical fibers by transmitting more wavelength channels within a narrower wavelength interval. DWDM technology is typically implemented around a wavelength of 1550nm, with wavelength intervals as small as 0.8nm or even smaller.
Super large capacity: DWDM technology can achieve extremely high transmission capacity, supporting data transmission ranging from tens of Tbps to hundreds of Tbps. This ultra-large capacity enables optical networks to meet the ever-growing demand for data traffic.
Long-distance transmission: As DWDM technology is mainly implemented around the 1550nm wavelength, it can fully utilize the low-loss characteristics of optical fibers at this wavelength and support long-distance transmission. Meanwhile, in combination with erbium-doped fiber amplifiers (EDFA), DWDM systems can achieve repeater transmission over thousands of kilometers.
Network scalability: DWDM technology enables the addition of more wavelength channels to the existing optical fiber infrastructure, thereby achieving smooth network expansion. This scalability enables optical networks to be easily upgraded in the future to meet the growing business demands.
850nm wavelength: In short-distance transmission, multimode fibers with an 850nm wavelength can support high data rates and are suitable for internal connections within local area networks and data centers.
1310nm wavelength: Single-mode optical fibers with a 1310nm wavelength also perform well in short-distance transmission, and their low dispersion characteristics can support high-speed transmission.
1550nm wavelength: In long-distance transmission, single-mode optical fibers with a 1550nm wavelength are the preferred choice. Its low-loss characteristic can support long-distance transmission, and it matches the working wavelength of the erbium-doped fiber amplifier (EDFA), enabling efficient signal amplification.
Single-wavelength transmission: In scenarios with low capacity requirements, single-wavelength transmission (such as 1310nm or 1550nm) can meet the demands and is relatively low-cost.
Wavelength Division Multiplexing (WDM) technology: In scenarios with high capacity demands, WDM technology (such as WDM or DWDM) is indispensable. By transmitting multiple wavelengths of optical signals in the same optical fiber, the transmission capacity of the optical fiber can be significantly increased.
Single-mode optical fiber: Single-mode optical fiber is relatively expensive, but it has superior transmission performance and is suitable for long-distance and high-capacity transmission.
Multimode optical fiber: Multimode optical fiber has a relatively low cost, but its transmission distance and bandwidth are limited, making it suitable for short-distance and high-bandwidth transmission.
Light sources and detectors: The costs of light sources and detectors of different wavelengths vary. For instance, light sources and detectors with a wavelength of 1550nm are relatively expensive, but they have superior performance and are suitable for long-distance transmission.
Multiplexing and demultiplexing equipment: WDM and DWDM technologies require the use of multiplexing and demultiplexing equipment, which are relatively expensive but can significantly increase the transmission capacity of optical fibers.
With the continuous growth of data traffic, optical networks will develop towards ultra-wideband in the future. Ultra-wideband optical networks will adopt more wavelength channels and narrower wavelength intervals to achieve higher transmission capacity. For instance, the next-generation DWDM technology will support higher wavelength density and higher data rates, capable of meeting the demands of future data centers and long-distance transmission.
Space division multiplexing technology further enhances the transmission capacity of optical fibers by transmitting multiple spatial mode optical signals in them. This technology, combined with wavelength division multiplexing technology, can achieve higher spectral efficiency.
Multi-core optical fiber technology can significantly increase the transmission capacity of optical fibers by integrating multiple cores in a single optical fiber. This technology has broad application prospects in future data centers and long-distance transmission.
Software-defined optical networks control the configuration and management of optical networks through software, enabling flexible wavelength allocation and dynamic network adjustment. This technology will make optical networks more intelligent and better adapt to the changes in future business requirements.
The optical networks of the future will be more automated and intelligent, capable of achieving automated wavelength allocation, fault detection and self-repair. This intelligent optical network will enhance the reliability and efficiency of the network and reduce operating costs.
Wavelength is a crucial parameter in optical networks, having a profound impact on the transmission performance, capacity, cost and application scenarios of optical networks. Different wavelengths have different transmission characteristics and are suitable for different application scenarios. By rationally selecting wavelengths and adopting wavelength multiplexing technology, the performance and capacity of optical networks can be significantly improved. With the continuous advancement of technology, future optical networks will develop in the direction of ultra-wideband, intelligence and new optical fiber technologies, further enhancing the transmission capacity and efficiency of optical networks to meet the growing data traffic demands in the future.
