In today's digital age, where information travels at the speed of light - quite literally - fiber optics has emerged as a cornerstone technology. From enabling high - speed internet connections in our homes to facilitating complex data transmissions in global communication networks, fiber optics plays a crucial role. But what exactly are fiber optics, and how do they work their magic? In this blog post, we'll take a deep dive into the world of fiber optics, exploring its fundamental concepts, working principles, components, applications, and future prospects.
At its most basic, a fiber optic cable is a slender, flexible strand made primarily of glass or plastic. These cables are designed to transmit light signals over long distances with minimal loss. The core of the fiber optic cable is the central part through which the light travels. Surrounding the core is a cladding layer, which has a lower refractive index than the core. This difference in refractive indices is the key to how fiber optics work.
The refractive index of a material is a measure of how much the speed of light is reduced when it passes through that material. Different materials have different refractive indices. For example, the refractive index of air is approximately 1.0003, while that of glass used in fiber optic cores is around 1.5. When light travels from a material with a higher refractive index to one with a lower refractive index, it bends away from the normal (an imaginary line perpendicular to the surface between the two materials). This phenomenon, known as refraction, is fundamental to the operation of fiber optic cables.

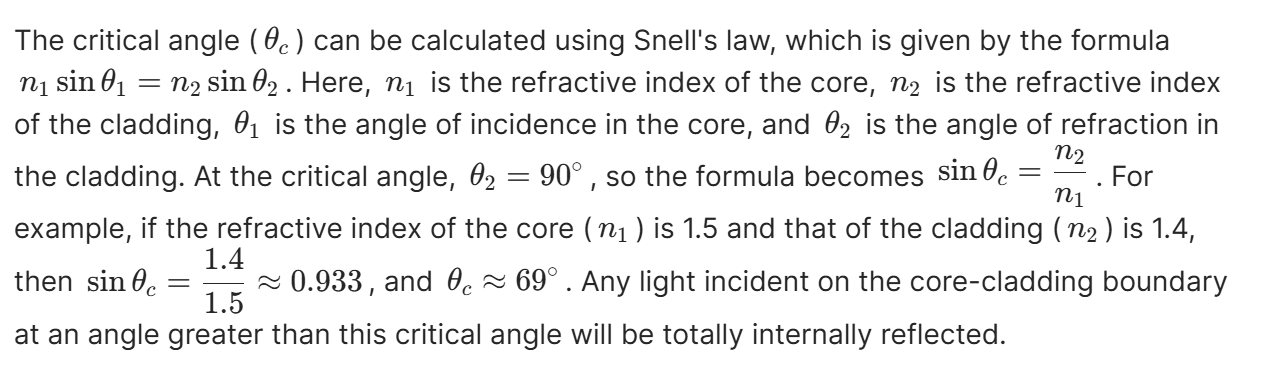

Total internal reflection is the heart of fiber optic technology. When light travels within the core of a fiber optic cable and reaches the boundary between the core and the cladding, if the angle of incidence is greater than a certain critical angle, instead of refracting out into the cladding, the light is reflected back into the core. This continuous reflection allows the light to travel through the fiber optic cable over long distances, bouncing off the walls of the core like a ball in a pinball machine.
Single-mode fiber, on the other hand, has a much smaller core diameter, usually around 8 - 10 micrometers. It is designed to allow only one light mode to propagate through the core. This eliminates modal dispersion, resulting in a much lower signal loss and the ability to transmit data over much longer distances at higher speeds. Single-mode fiber is the preferred choice for long-distance communication, such as transcontinental undersea cables and high-speed internet backbone networks. For instance, the fiber optic cables that span across the oceans, connecting different continents and enabling global communication, are mostly single-mode fiber.
As mentioned earlier, fiber optic cables consist of a core and a cladding. However, there are additional components to ensure their proper functioning. The outermost layer is the protective jacket, which shields the delicate core and cladding from physical damage, moisture, and environmental factors. Inside the cable, there may also be strength members, such as Kevlar fibers, to provide mechanical strength and prevent the cable from breaking under tension.
Optical transmitters are responsible for converting electrical signals into optical signals. They typically use light - emitting diodes (LEDs) or laser diodes. LEDs are less expensive and are often used in short - range, lower - speed applications. Laser diodes, on the other hand, can produce more intense and focused light beams, making them suitable for long - distance and high - speed data transmission. The electrical signal from a device, such as a computer or a router, is input into the optical transmitter, which then modulates the light output to encode the data onto the light signal.
Optical receivers perform the opposite function of optical transmitters. They convert the optical signals back into electrical signals. A photodiode is a key component in an optical receiver. When light hits the photodiode, it generates an electric current proportional to the intensity of the light. The electrical signal is then processed and decoded to retrieve the original data. Optical receivers also often have amplifiers and other signal - conditioning circuits to boost the weak electrical signals received from the photodiode.
As mentioned earlier, fiber optic cables consist of a core and a cladding. However, there are additional components to ensure their proper functioning. The outermost layer is the protective jacket, which shields the delicate core and cladding from physical damage, moisture, and environmental factors. Inside the cable, there may also be strength members, such as Kevlar fibers, to provide mechanical strength and prevent the cable from breaking under tension.
Optical transmitters are responsible for converting electrical signals into optical signals. They typically use light - emitting diodes (LEDs) or laser diodes. LEDs are less expensive and are often used in short - range, lower - speed applications. Laser diodes, on the other hand, can produce more intense and focused light beams, making them suitable for long - distance and high - speed data transmission. The electrical signal from a device, such as a computer or a router, is input into the optical transmitter, which then modulates the light output to encode the data onto the light signal.
Optical receivers perform the opposite function of optical transmitters. They convert the optical signals back into electrical signals. A photodiode is a key component in an optical receiver. When light hits the photodiode, it generates an electric current proportional to the intensity of the light. The electrical signal is then processed and decoded to retrieve the original data. Optical receivers also often have amplifiers and other signal - conditioning circuits to boost the weak electrical signals received from the photodiode.
In long - distance fiber optic communication, the light signals can weaken over time due to absorption and scattering in the fiber. Optical amplifiers are used to boost the strength of these signals without first converting them back into electrical signals. There are different types of optical amplifiers, such as erbium - doped fiber amplifiers (EDFAs). EDFAs work by using a special fiber doped with erbium atoms. When a pump laser is used to excite the erbium atoms, they can amplify the incoming light signal through a process called stimulated emission.
Fiber optics has transformed the telecommunications industry. High - speed internet, voice - over - IP (VoIP) services, and video conferencing all rely on fiber optic cables for fast and reliable data transmission. In fact, fiber - optic - based broadband connections can offer speeds of up to 1 Gbps or even higher in some areas, providing users with seamless streaming, quick downloads, and lag - free online gaming experiences. Additionally, fiber optic cables are used in the backbone of mobile networks, enabling the high - data - rate requirements of 4G and 5G technologies. For example, when you stream a high - definition movie on your smart TV or make a video call on your smartphone, the data is likely traveling through fiber optic cables at some point in the network.

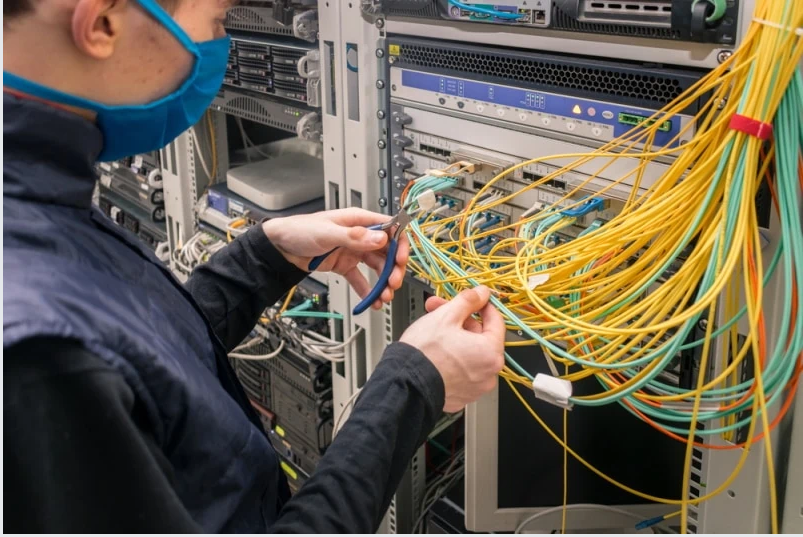

Data centers, which store and process vast amounts of data for businesses and organizations, rely heavily on fiber optics. Fiber optic cables are used to connect servers, storage devices, and network switches within the data center. The high - speed and low - latency characteristics of fiber optics allow for rapid data transfer between different components, ensuring efficient operation of the data center. This is crucial for applications such as cloud computing, where users expect instant access to their data and services. For instance, when a user uploads a large file to a cloud storage service or accesses a virtual machine in the cloud, fiber optic connections within the data center enable quick data transfer.
In the medical field, fiber optics has a wide range of applications. Endoscopes, for example, use fiber optic cables to transmit light into the body and carry back images of internal organs. This allows doctors to perform minimally invasive procedures, such as examining the digestive tract or the lungs, without having to make large incisions. Fiber optic sensors can also be used to monitor vital signs, such as temperature, pressure, and oxygen levels, inside the body. These sensors are often small and flexible, making them suitable for use in medical devices. For example, a fiber optic temperature sensor can be inserted into the body during surgery to monitor the patient's body temperature accurately.
In industrial settings, fiber optic sensors are used for various purposes. They can be used to monitor strain, vibration, and temperature in structures such as bridges, buildings, and pipelines. Fiber optic gyroscopes are used in navigation systems, providing highly accurate orientation and motion sensing. In the oil and gas industry, fiber optic cables are used to monitor the condition of pipelines, detecting leaks and changes in pressure. For example, a fiber optic strain sensor attached to a bridge can detect even the slightest deformation, allowing engineers to take preventive measures before a serious problem occurs.
Fiber optics is likely to be integrated more closely with other emerging technologies. For instance, the combination of fiber optics and 5G technology can enhance the performance of mobile networks. Fiber optic - based networks can provide the high - bandwidth and low - latency connections required for 5G base stations. There is also potential for integration with artificial intelligence and the Internet of Things (IoT). Fiber optic sensors can be used in IoT applications to collect data from a wide range of devices, and AI can be used to analyze this data in real - time.
There is a trend towards miniaturization of fiber optic components. Smaller and more flexible fiber optic cables and devices are being developed, which will be useful in applications such as wearable technology and implantable medical devices. Miniaturized fiber optic sensors can be integrated into clothing to monitor a person's vital signs or into smartwatches to improve their functionality. In the medical field, smaller fiber optic endoscopes may allow for even less invasive procedures.
